Airport Fence

Airport Fence is a high‑security welded mesh barrier for airport perimeters, airside boundaries, cargo zones, maintenance yards and other restricted sites. The lower section is a 3D curved panel with 50×100mm or 50×200mm mesh and pressed bends for rigidity. The upper V‑shaped security section consists of Y posts, V brackets, razor wire and clamps. One side of the panel can have 30mm vertical anti‑climb barbs, installable at top or bottom. The complete system includes panels, posts, clamps, post caps and security toppings as per project layout.

Specifications

Panel Height: 2030mm, 2230mm, 2430mm, 2700mm

Panel Width: 2000mm, 2500mm, 2900mm. For heights above 2300mm, 2300mm width is standard for container loading.

Wire Diameter: 4.0mm, 4.5mm, 5.0mm

Mesh Opening: 50×100mm, 50×200mm

Panel Bends: 4 horizontal pressed bends for stiffness

Vertical Barb: 30mm anti‑climb barbs on one reversible side

Post Type: Y post, 60×60mm square post, 40×60mm rectangular post

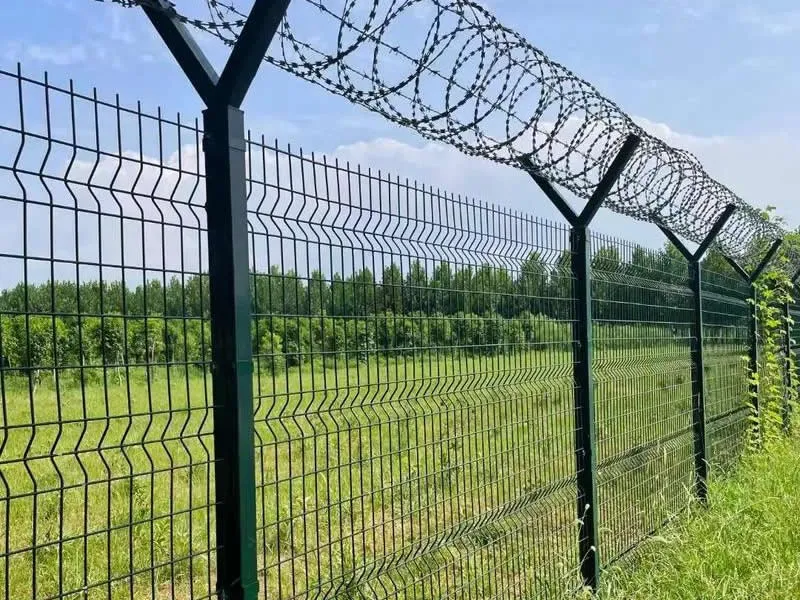

Top Security System: V‑shaped assembly with V panel, Y post, razor wire and 4 sets of anti‑tamper clips

Clamp Options: Plastic clamp, metal spider clamp, metal square clamp, SBS anti‑theft fastener

Post Cap: Anti‑UV plastic cap or metal cap

Surface Treatment: Hot‑dipped galvanized, galvanized + powder coating, galvanized + PVC coating

Color: Green, dark green, black, grey, custom RAL color

Installation Method: Embedded concrete footing or base plate fixing per drawings

Gate Option: Pedestrian gate, double swing gate, sliding gate, maintenance gate, vehicle access gate

Order Details Needed: Fence height, panel width, mesh opening, wire diameter, post size, clamp type, coating color, gate size, topping layout

Application

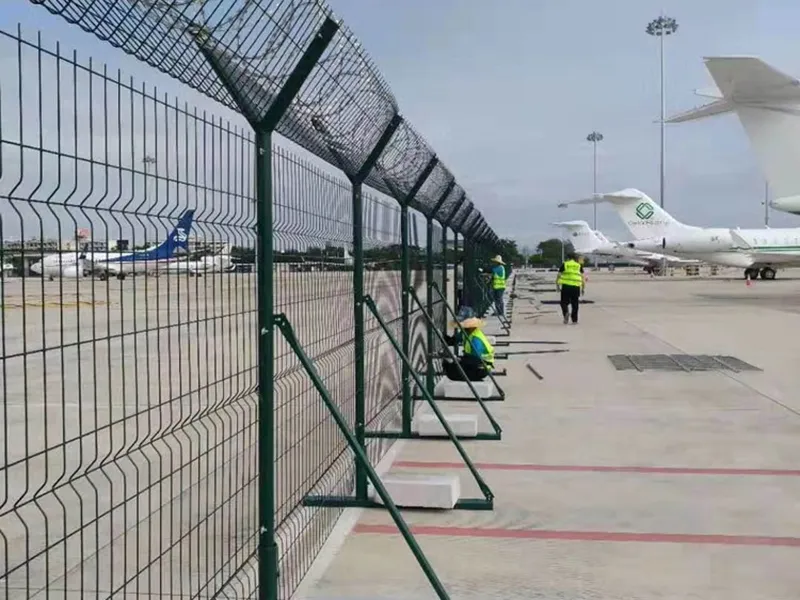

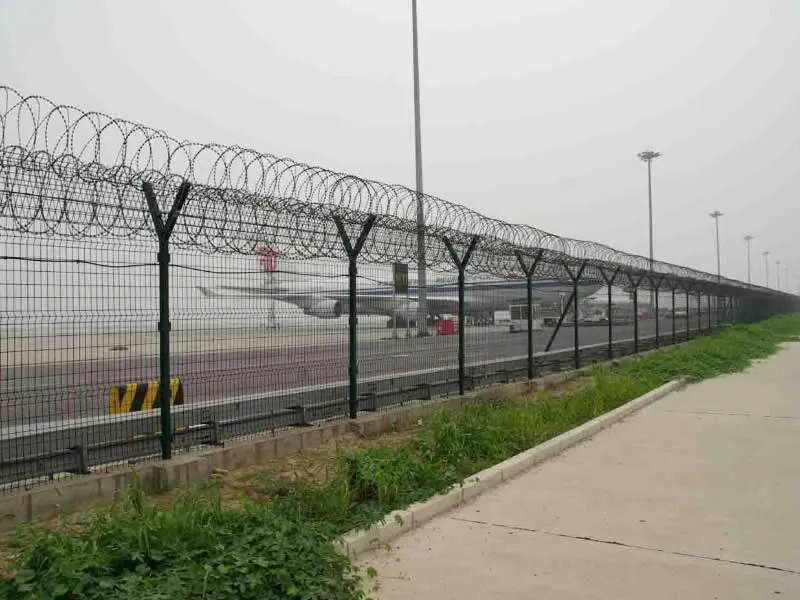

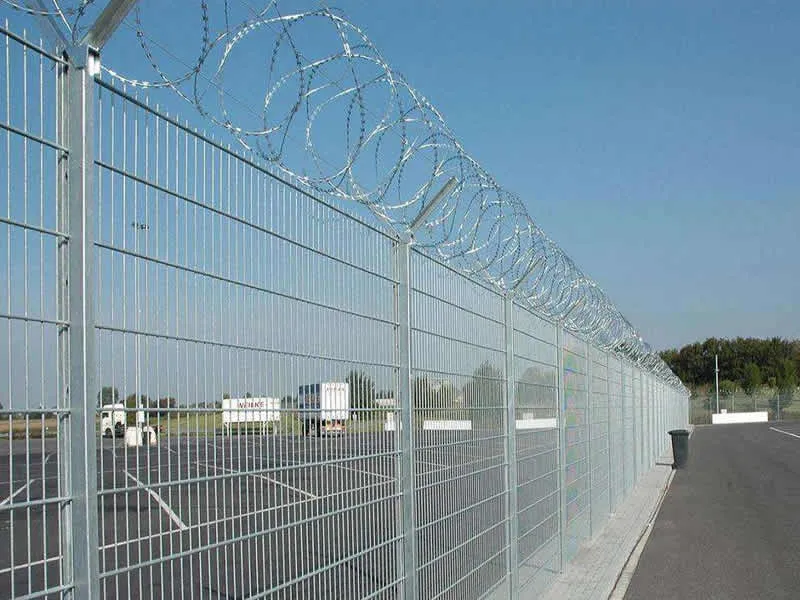

Airport Perimeter Boundary

Used for outer boundaries and airfield limits. V‑top with razor wire is standard for anti‑climb requirements.

Airside Restricted Areas

Deployed near runways, service roads, fuel depots, control zones and technical areas for strict access control.

Cargo and Maintenance Zones

Welded mesh security fence around cargo terminals, ground equipment yards, maintenance depots and storage compounds.

High‑Security Public Infrastructure

Also suitable for power stations, logistics parks, industrial compounds and other controlled‑access sites.

Stock Product Specifications

Airport Fence Panel – 2030×2500mm, 50×100mm Mesh

Standard 2030×2500mm airport fence with 50×100mm mesh and 4.0mm wire. For airport boundaries, service roads, maintenance zones and controlled‑access areas.

Technical Specifications

• Panel Size: 2030mm H × 2500mm W
• Mesh Opening: 50×100mm
• Wire Diameter: 4.0mm
• Panel Bends: 4 pressed bends
• Vertical Barb: 30mm barb on one side
• Post Type: 60×60mm square post or 40×60mm rectangular post
• Clamp: Plastic clamp or metal square clamp
• Surface Treatment: Galvanized + powder coating

Applications

Airport perimeter fencing; service road boundary; maintenance and utility zone enclosure.

High‑Security Airport Fence – 2500×2300mm, 5.0mm Wire

V‑top high‑security fence 2500×2300mm with 5.0mm wire. Equipped with Y posts, V panels, anti‑tamper clips and razor wire. 2300mm width ideal for tall panels and container loading.

Technical Specifications

• Panel Size: 2500mm H × 2300mm W
• Mesh Opening: 50×100mm or 50×200mm
• Wire Diameter: 5.0mm
• Post Type: Y post or 60×60mm square post
• Top System: V panel with razor wire
• Connection: Metal spider clamp or metal square clamp
• Surface Treatment: Hot‑dipped galvanized + powder coating
• Installation: Concrete footing per project drawing

Applications

Airport outer perimeter; high‑security airside fence line; restricted aviation service areas.

Wide‑Span Airport Fence – 2030×2900mm, 4.0mm Wire

Wide 2030×2900mm panel reduces post quantity on long straight runs. For projects prioritizing installation speed and fewer posts.

Technical Specifications

• Panel Size: 2030mm H × 2900mm W
• Mesh Opening: 50×100mm
• Wire Diameter: 4.0mm
• Panel Bends: 4 pressed bends
• Post Type: 60×60mm square post or Y post
• Clamp: Plastic clamp, metal round clamp or metal square clamp
• Surface Treatment: Galvanized + powder coated
• Top Option: Straight top or V‑top with razor wire (custom)

Applications

Long airport boundary sections; logistics park perimeter; industrial land security fencing.

Heavy‑Duty Airport Fence – 2700×2300mm, 50×100mm Mesh

Heavy‑duty 2700×2300mm panel for restricted perimeters. Supplied with Y posts, V panels, razor wire and metal anti‑tamper clamps.

Technical Specifications

• Panel Size: 2700mm H × 2300mm W
• Mesh Opening: 50×100mm
• Wire Diameter: 5.0mm
• Vertical Barb: 30mm reversible barb on one side
• Post Type: Y post or 60×60mm square post
• Connection: Metal square clamp or metal spider clamp
• Post Cap: Metal cap or anti‑UV plastic cap
• Surface Treatment: Hot‑dipped galvanized + powder coating

Applications

Restricted airport perimeter lines; fuel and technical service zones; high‑security industrial compounds.

Rectangular Post Airport Fence – 2230×2300mm, 4.5mm Wire

Standard perimeter fence with 40×60mm rectangular posts. For regular airport sections and controlled‑access areas. Matches welded mesh panels with plastic or metal clamps.

Technical Specifications

• Panel Size: 2230mm H × 2300mm W
• Mesh Opening: 50×100mm
• Wire Diameter: 4.5mm
• Post Type: 40×60mm rectangular post
• Panel Bends: 4 pressed bends
• Clamp Option: Plastic square clamp or metal square clamp
• Top Option: Straight top or V‑shaped top system
• Surface Treatment: Galvanized + PVC coating or powder coating

Applications

Airport service area boundary; maintenance yard fencing; controlled‑access facility perimeter.
