Highway and Railway Fence

Highway and Railway Fence is a welded mesh isolation system for expressways, railways, bridges, airport roads, municipal roads, industrial zones and farm boundaries. It is made of low carbon steel wire or hot‑dipped galvanized wire, then coated with hot‑dip galvanizing, PVC dipping or powder coating for long‑term outdoor use. Common types include framed welded mesh fence, V‑bend (curved) fence, bridge anti‑throw fence, chain link fence, and barbed wire top fence. The complete system includes panels, posts, clamps, bolts, nuts and gates. Mesh size, wire gauge, post type, coating color and foundation method shall be confirmed per project requirements.

Specifications

Material: Low carbon steel wire (Q235) or hot‑dipped galvanized wire for mesh panels. Posts: galvanized round/square tube, peach post, or concrete post.

Fence Type: Framed welded mesh fence, V‑bend welded mesh fence, railway safety fence, bridge anti‑throw fence, chain link fence, barbed wire top fence.

Wire Diameter (Wire Gauge):3.0mm, 3.5mm, 3.8mm, 4.0mm, 4.5mm, 5.0mm

Mesh Opening:50×100mm, 75×150mm, 50×200mm, 75×75mm, 50×50mm

Panel Height:1.5m, 1.8m, 2.0m, 2.2m

Panel Width:2.0m, 2.5m, 3.0m

Frame (for welded mesh):20×30mm, 30×50mm rectangular tube; 1.2–2.0mm thickness

Post Type:

• Round post: φ48mm, φ60mm × 1.5–2.5mm
• Square post: 60×60mm, 80×80mm × 2.0–3.0mm
• Peach post (Y‑post): common for highway
• Concrete post: railway standard

Post Spacing:2.0m, 2.5m, 3.0m (center to center)

Surface Treatment:

• Hot‑dipped galvanized (≥85μm)
• Galvanized + PVC dipped (green/black/grey)
• Galvanized + powder coating

Color:Green, dark green, black, grey, blue（RAL color on request）

Top Option: Straight top, V‑bend top, 2–3 strands barbed wire top, anti‑climb extension.

Installation: Concrete footing for steel posts; concrete post direct burial; base plate fixing; clamp to existing structures.

Accessories: Clamps, bolts, post caps, connecting plates, tension wire, barbed wire, gate hinges & latches.

Application

Expressway & Service Road Boundary

Used along expressways, ramps, service roads, toll stations and road shoulders. Framed mesh or V‑bend panels are standard for long‑distance boundaries.

Railway Line & Station Fence

Installed beside tracks, stations, maintenance yards, signal zones and railway land. Concrete posts or heavy steel posts per local railway standard (e.g., China Railway 8001/8002)

Bridge Anti‑Throwing Fence

High mesh density panels on overpasses, highway bridges, railway bridges to prevent falling objects. Usually 2.0–2.4m high, 50×50mm or 75×75mm mesh

Municipal, Airport & Field Boundary

For municipal roads, airport access roads, industrial parks, landscape projects, community perimeters and farm fencing.

Stock Product Specifications

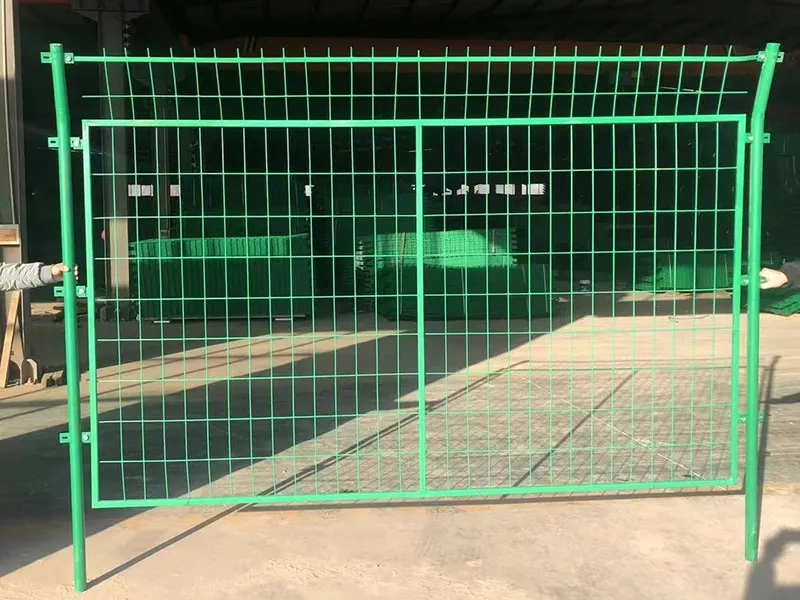

Framed Highway Fence – 1.8m × 3.0m, 50×100mm Mesh

Standard framed highway fence 1.8m × 3.0m, widely used for expressway boundaries, service roads and industrial zones. Welded mesh with heavy frame for stability and durability.

Technical Specifications

• Type: Framed welded mesh fence
• Panel Size: 1.8m H × 3.0m W
• Mesh: 50×100mm
• Wire Diameter: 4.0mm
• Frame: 30×50×1.5mm rectangular tube
• Post: φ60×2.0mm round post, 2.5m spacing
• Treatment: Hot‑dipped galvanized + PVC coated
• Color: Dark green

Applications

• Expressway roadside isolation
• Municipal road boundary
• Industrial park perimeter

Railway Welded Mesh Fence – 2.0m × 2.5m, 75×150mm Mesh

Railway safety fence 2.0m × 2.5m, designed for railway lines and station areas. High tensile mesh, anti‑climb, long service life.

Technical Specifications

• Type: Railway welded mesh fence
• Panel Size: 2.0m H × 2.5m W
• Mesh: 75×150mm
• Wire Diameter: 4.0mm
• Frame: 30×50×2.0mm rectangular tube
• Post: 120×120mm concrete post or 60×60mm steel post, 2.5m spacing
• Treatment: Hot‑dipped galvanized + PVC dipped
• Color: Green

Applications

• Railway line boundary
• Station & yard separation
• Railway land protection

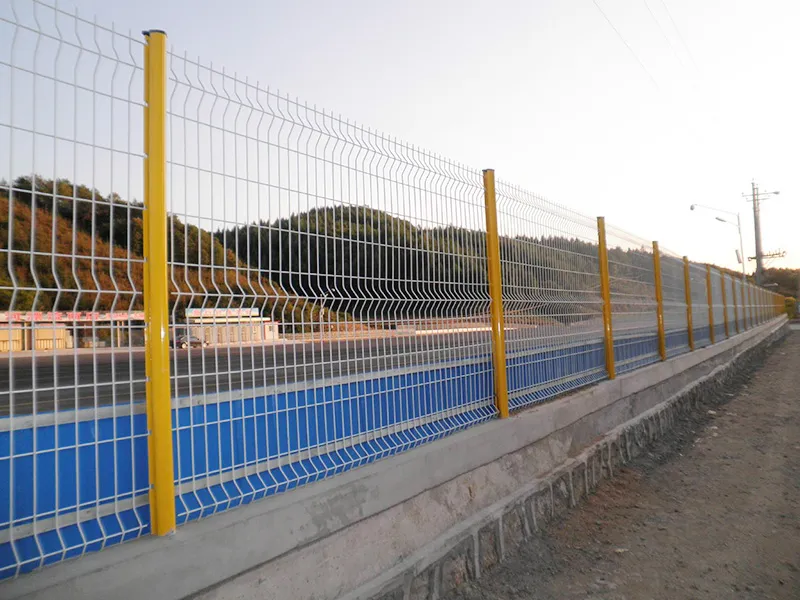

V‑Bend Road Fence – 1.8m × 2.5m, 50×200mm Mesh

V‑bend (curved) fence 1.8m × 2.5m, with top bend for extra rigidity. Ideal for road shoulders, residential edges and light traffic areas.

Technical Specifications

• Type: V‑bend welded mesh fence
• Panel Size: 1.8m H × 2.5m W
• Mesh: 50×200mm
• Wire Diameter: 4.0mm / 4.5mm
• Frame: 25×25×1.5mm square tube
• Post: Peach post / φ48mm round post, 2.5m spacing
• Treatment: Galvanized + powder coating
• Color: Green / grey / black

Applications

• Roadside boundary fencing
• Community & landscape projects
• Utility area enclosure

Bridge Anti‑Throwing Fence – 2.4m × 2.0m, 50×50mm Mesh

Bridge anti‑throw fence 2.4m × 2.0m, small mesh to prevent objects falling from overpasses. High strength, wind‑resistant, bridge‑mountable.

Technical Specifications

• Type: Bridge anti‑throw fence
• Panel Size: 2.4m H × 2.0m W
• Mesh: 50×50mm
• Wire Diameter: 4.0mm / 4.5mm
• Frame: 30×50×2.0mm rectangular tube
• Post: 60×60×2.5mm square post / bridge bracket post
• Treatment: Hot‑dipped galvanized + powder coating
• Top: Straight or inward bent

Applications

• Highway bridge side protection
• Railway overpass anti‑throw screen
• Pedestrian bridge safety fence

Chain Link Highway Fence – 2.0m Height, 60×60mm Diamond Mesh

Chain link fence 2.0m high, flexible diamond mesh for long highway sections and uneven terrain. Easy installation, cost‑effective.

Technical Specifications

• Type: Chain link fence
• Height: 2.0m
• Mesh: 60×60mm diamond
• Wire Diameter: 3.0mm / 3.5mm
• Roll Length: 20m / 25m / 30m
• Post: φ60mm round post, 3.0m spacing
• Treatment: Hot‑dipped galvanized / PVC coated

Applications

• Long‑distance highway boundaries
• Hilly/uneven roadside ground
• Temporary or permanent transport corridors

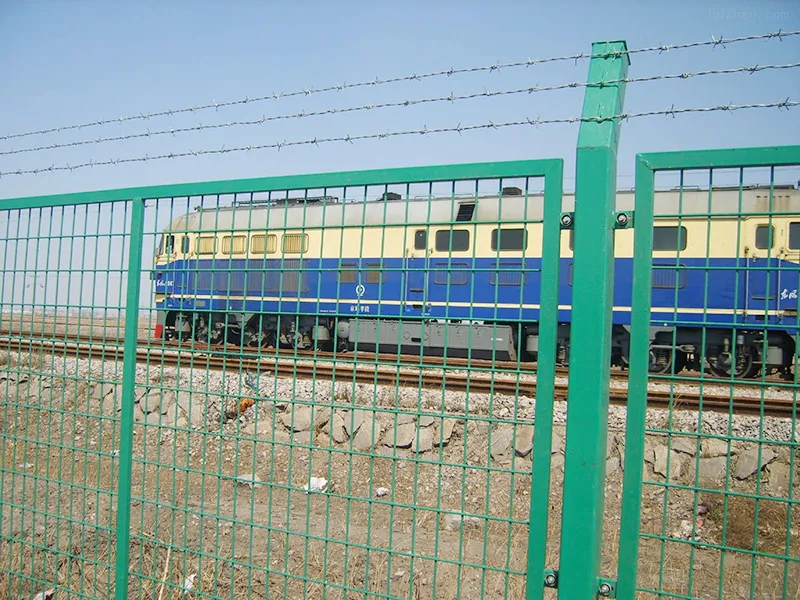

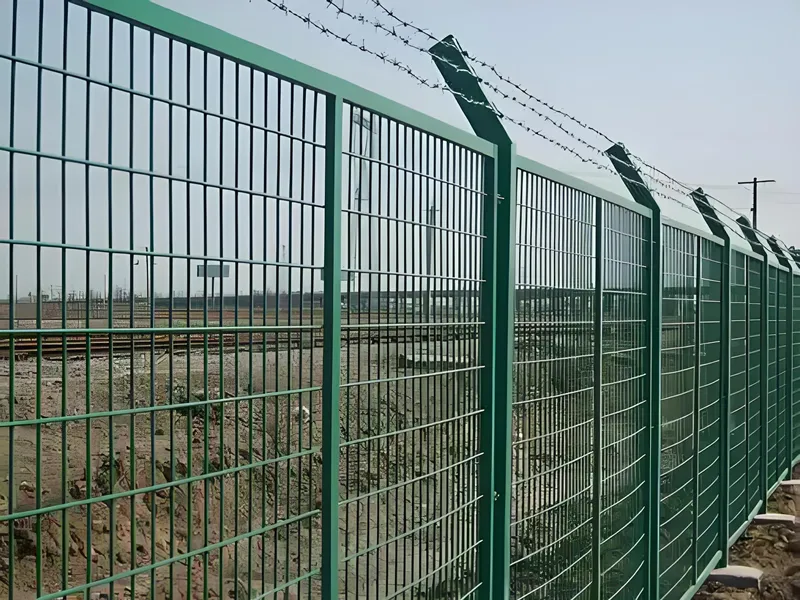

Barbed Wire Top Railway Fence – 2.2m Total Height, 75×150mm Mesh

High‑security railway fence 2.2m total height, with barbed wire top for restricted railway zones, depots and high‑risk areas.

Technical Specifications

• Type: Welded mesh fence with barbed wire top
• Total Height: 2.2m (including top extension)
• Mesh: 75×150mm
• Wire Diameter: 4.0mm
• Frame: 30×50×2.0mm rectangular tube
• Post: 60×60mm steel post with Y‑arm
• Top Wire: 2–3 strands galvanized barbed wire
• Treatment: Galvanized + PVC coated
• Color: Dark green

Applications

• Restricted railway boundaries
• Maintenance depot perimeters
• High‑security transport facilities
