Field Fence

Field Fence is a woven livestock fence for cattle, sheep, goats, deer, pasture boundaries and rural land enclosure. Also known as grassland fence, cattle fence or farm fence. It features hot‑dip galvanized steel wire with graduated vertical openings—smaller at the bottom to contain young/small animals, larger at the top to reduce weight and cost. Hinge joint fence is flexible and absorbs livestock impact, ideal for general cattle and sheep. Fixed knot fence locks wires rigidly, for deer, goats and high‑pressure lines requiring strong vertical retention.
Technical Specifications

Material: Hot‑dip galvanized low‑carbon steel wire.

Zinc Coating: Standard 40–80 g/m²; heavy‑duty 230–275 g/m² for long‑term outdoor/wet areas.

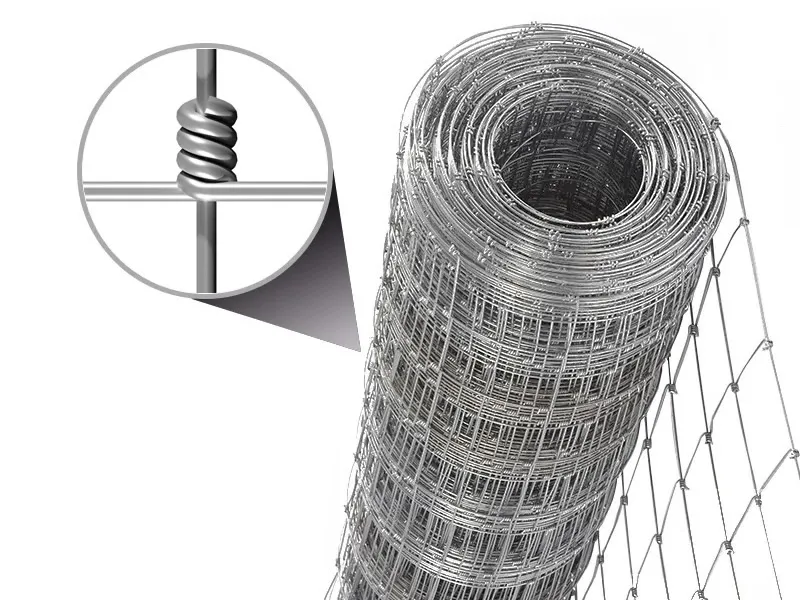

Knot Type: Hinge joint (general livestock); fixed knot (deer, high‑pressure lines).

Roll Length: 50 m (standard stock); 100 m available on request.

Vertical Stay Spacing: 150 mm (6″) standard; 300 mm (12″) optional.

Fence Height (common):

813 mm (32″), 902 mm (35.5″), 991 mm (39″), 1016 mm (40″), 1143 mm (45″), 1194 mm (47″), 1245 mm (49″), 1334 mm (52.5″), 1442 mm (56.8″).

Horizontal Line Wire Count: 7, 8, 9, 10, 11 lines (matches height).

Wire Diameter:

• Top/bottom edge wire: 2.5 mm standard (2.0–3.0 mm optional).
• Inner wire: 2.0 mm standard (1.8–2.5 mm optional).

Opening Layout: Graduated vertical spacing (bottom to top):

89 mm, 102 mm, 114 mm, 127 mm, 140 mm, 152 mm, 178 mm, 203 mm, 229 mm.

Roll Weight (50 m): 19.3–30.8 kg, depending on height and wire count.

Compatible Posts: Wooden posts, T‑posts, Y‑posts, concrete posts, steel strain posts.

Installation Notes: End posts, corner braces and wire strainers required for long runs. Add 1–2 strands of barbed wire above for high cattle pressure.

Application

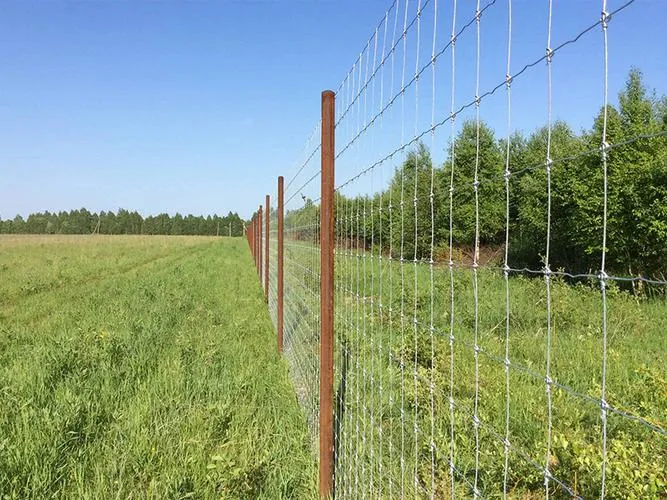

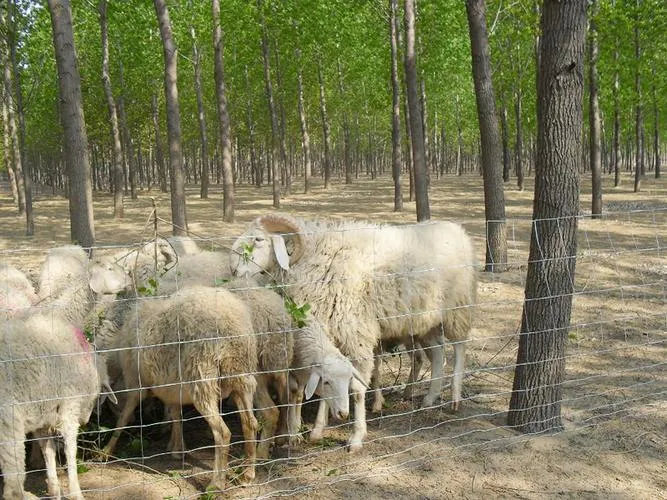

Cattle & Sheep Pasture

Hinge joint fence for paddocks, grazing land and general livestock enclosure. Flexible hinge joints withstand daily animal impact.

Goat & Deer Fence Lines

Fixed knot fence for goats, deer and high‑pressure areas. Taller heights (1.5–1.8 m) typical for deer.

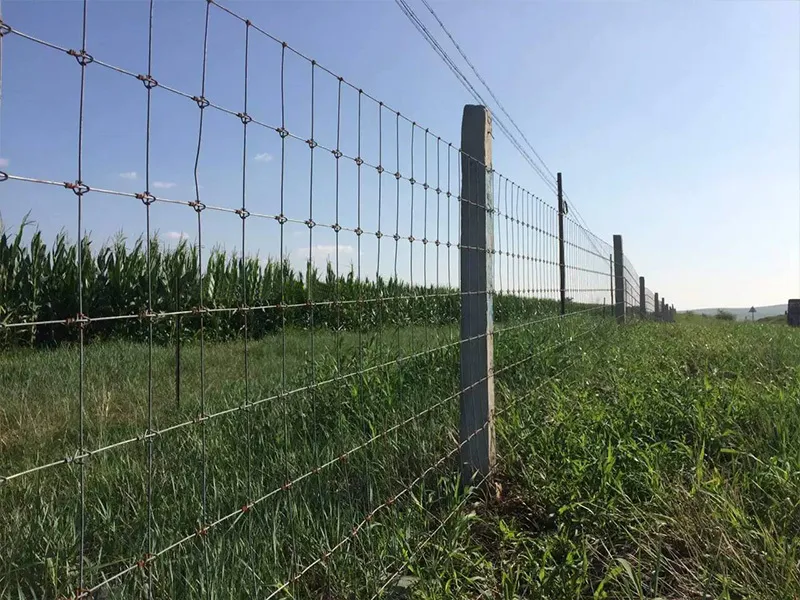

Rural Boundary & Farm Division

Galvanized fence for field separation, orchard boundaries, rural roadsides and land marking. 50 m rolls minimize joints on straight runs.

Slope & Mountain Pasture

Graduated mesh adapts to uneven terrain. For erosion‑prone sites, combine with geotextile as required.

Stock Product Specifications

Hinge Joint Field Fence – 7/150/813/50, 50 m Roll

7‑line hinge joint fence, 813 mm height, 150 mm stay spacing. Standard for sheep and small livestock.

Technical Specifications

• Model: 7/150/813/50
• Knot Type: Hinge joint
• Height: 813 mm
• Length: 50 m
• Line Wires: 7
• Stay Spacing: 150 mm
• Graduated Openings: 102+114+127+140+152+178 mm
• Edge Wire: 2.5 mm
• Inner Wire: 2.0 mm
• Weight: ~19.3 kg
• Coating: Hot‑dip galvanized

Applications

Sheep pasture; small livestock enclosure; garden/orchard boundary.

Hinge Joint Field Fence – 8/150/1016/50, 50 m Roll

8‑line hinge joint fence, 1016 mm height, 150 mm stay spacing. All‑round for cattle and mixed livestock.

Technical Specifications

• Model: 8/150/1016/50
• Knot Type: Hinge joint
• Height: 1016 mm
• Length: 50 m
• Line Wires: 8
• Stay Spacing: 150 mm
• Graduated Openings: 89+102+114+127+140+152+178 mm
• Edge Wire: 2.5 mm
• Inner Wire: 2.0 mm
• Weight: ~22.5 kg
• Coating: Hot‑dip galvanized

Applications

Cattle/sheep pasture; farm internal division; general grazing land.

Hinge Joint Field Fence – 9/150/1194/50, 50 m Roll

9‑line hinge joint fence, 1194 mm height, 150 mm stay spacing. Heavy‑duty for cattle and high‑pressure areas.

Technical Specifications

• Model: 9/150/1194/50
• Knot Type: Hinge joint
• Height: 1194 mm
• Length: 50 m
• Line Wires: 9
• Stay Spacing: 150 mm
• Graduated Openings: 102+114+127+140+152+178+203+229 mm
• Edge Wire: 2.5 mm
• Inner Wire: 2.0 mm
• Weight: ~26.0 kg
• Coating: Hot‑dip galvanized

Applications

Cattle & goat pasture; orchard boundary; high‑traffic farm fence lines.

Hinge Joint Field Fence – 10/150/1334/50, 50 m Roll

10‑line hinge joint fence, 1334 mm height, 150 mm stay spacing. Tall perimeter fence for cattle and open rural land.

Technical Specifications

• Model: 10/150/1334/50
• Knot Type: Hinge joint
• Height: 1334 mm
• Length: 50 m
• Line Wires: 10
• Stay Spacing: 150 mm
• Graduated Openings: 89+102+114+127+140+152+178+203+229 mm
• Edge Wire: 2.5 mm
• Inner Wire: 2.0 mm
• Weight: ~28.4 kg
• Coating: Hot‑dip galvanized

Applications

Cattle field enclosure; farm perimeter; open pasture division.

Hinge Joint Field Fence – 11/150/1442/50, 50 m Roll

11‑line hinge joint fence, 1442 mm height, 150 mm stay spacing. Tall livestock boundary for cattle, goats and wide open ground.

Technical Specifications

• Model: 11/150/1442/50
• Knot Type: Hinge joint
• Height: 1442 mm
• Length: 50 m
• Line Wires: 11
• Stay Spacing: 150 mm
• Graduated Openings: 89+89+102+114+127+140+152+178+203+229 mm
• Edge Wire: 2.5 mm
• Inner Wire: 2.0 mm
• Weight: ~30.8 kg
• Coating: Hot‑dip galvanized (standard/heavy on request)

Applications

High pasture boundary; cattle & goat fence lines; farm perimeter on open land.

Fixed Knot Deer Fence – 1.8 m, 150 mm Stay Spacing, 50 m Roll

Fixed knot deer fence, 1.8 m height, 150 mm stay spacing. Rigid locking for deer, wildlife exclusion and high‑pressure livestock lines.

Technical Specifications

• Knot Type: Fixed knot (rigid wire lock)
• Height: 1.8 m
• Length: 50 m (100 m optional)
• Stay Spacing: 150 mm
• Line Wires: 14 lines
• Graduated Openings: 89–229 mm (bottom to top)
• Edge Wire: 3.0 mm
• Inner Wire: 2.5 mm
• Weight: ~38 kg / 50 m
• Coating: Heavy hot‑dip galvanized (230–275 g/m²)
• Posts: Timber strain posts, T‑posts, steel posts

Applications

Deer ranch fencing; orchard wildlife exclusion; high‑pressure goat/livestock boundaries.
