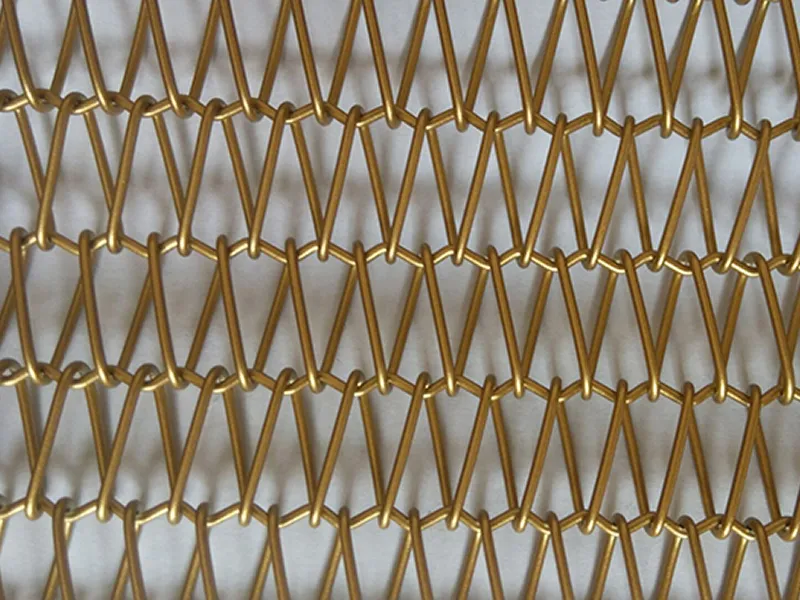

Spiral Decorative Wire Mesh

Spiral Decorative Wire Mesh is a metal woven mesh for architectural screens, interior partitions, ceiling curtains, wall panels and building facade decoration. It is fabricated from stainless steel wire, aluminum alloy wire or galvanized steel wire, formed into spiral structures and connected by straight rods or cross wires.

The open mesh design divides spaces without fully blocking light, airflow or visibility. It is available in standard panels, rolls, or ready-to-hang complete curtains with top tracks, support rods and fixing frames.

Widely used in hotels, offices, shopping malls, restaurants, exhibition halls and public buildings. Available finishes include natural stainless steel, bronze, brass tone, black, gold and other custom coated colors. Mesh opening, wire diameter, panel size and surface finish can be customized according to installation location, indoor/outdoor usage and desired visual density.

Specifications

Material

Stainless steel wire, aluminum alloy wire, galvanized steel wire or low carbon steel wire with surface treatment. Stainless steel is ideal for indoor and outdoor architectural projects; aluminum alloy is preferred where lightweight performance is required.

Wire Diameter

Common range: 0.8mm to 3.0mm. Thicker wire creates a heavier visual effect and higher panel rigidity.

Rod Diameter

Straight rod or cross wire: 1.0mm to 4.0mm, matched according to mesh weight and opening size.

Spiral Pitch

Typical spacing: 4mm to 20mm. Smaller pitch delivers denser visuals; larger pitch allows more light and air circulation.

Mesh Opening

Standard opening: 3mm×10mm up to 20mm×30mm. Actual size depends on spiral diameter, rod thickness and weaving pattern.

Panel Width

Standard widths: 1.0m, 1.2m, 1.5m, 2.0m; custom widths available. Extra-wide panels require edge reinforcement or support frames.

Panel Height

Custom cut to project height. Standard curtain height: 2.0m to 6.0m for interior use. Tall exterior facade panels need matched wind-resistant fixing systems.

Surface Finish

Natural stainless steel, galvanized, anodized aluminum, powder coating, electroplating and PVD finish. Finish selection based on material and application environment.

Color Options

Silver, bronze, brass, gold, black, copper, champagne; custom colors by coating or plating.

Edge Treatment

Open edge, welded edge, folded edge, framed edge or rod-fixed edge. Curtain-style installation adopts top rods, hooks or hanging tracks.

Installation Method

Hanging track system, stainless steel rod fixing, frame mounting, tension cable, screw clamp or custom brackets. Solution matched for ceiling, wall, facade and partition applications.

Product Form

Roll mesh, flat panel, framed panel, or complete curtain panel with installation accessories.

Use Environment

Suitable for interior decoration and qualified outdoor applications. For exterior facade projects, select corrosion-resistant stainless steel or treated aluminum based on local climate and corrosion conditions.

Custom Options

Wire diameter, spiral pitch, mesh opening, color, panel size, edge treatment and installation accessories can be customized per project drawings.

Application Scenarios

Interior Partition and Room Divider

Used as semi-open partitions in hotels, offices, restaurants, retail stores and exhibition areas. It separates functional zones while maintaining natural light and transparent sightlines.

Ceiling Curtain and Wall Decoration

Metal spiral mesh for ceiling curtains, feature walls and background panels. Ideal for lobbies, corridors, bars, showrooms and commercial interiors requiring metallic texture decoration.

Building Facade and Exterior Screen

Stainless steel spiral mesh applies to building facade cladding, sunshade screens, balcony screens and exterior decorative panels. Outdoor projects require corrosion-resistant material and wind-load compatible fixing systems.

Hotel Lobby and Commercial Space Decoration

Spiral metal mesh curtains are widely used in hotel lobbies, shopping malls, office reception areas and public buildings. Supplied in large integral panels or segmented hanging sections for convenient project installation.
