Bar Reinforcing Mesh

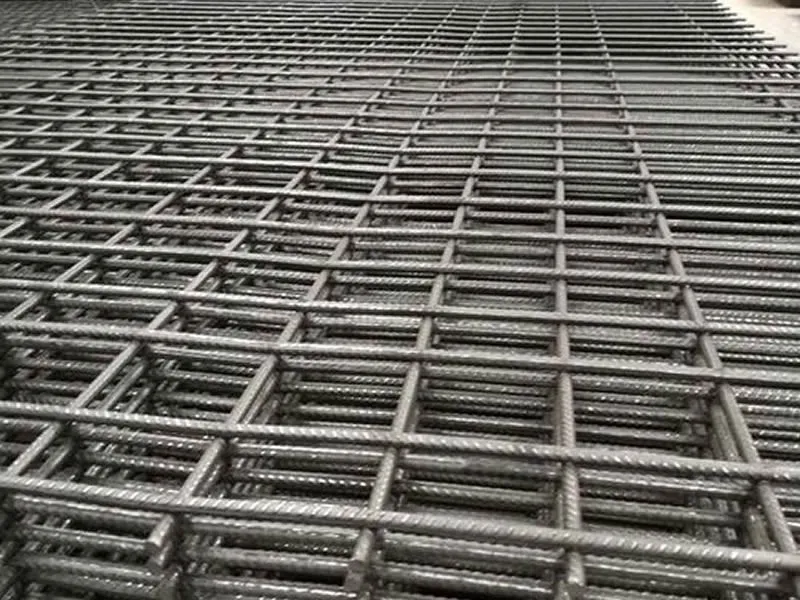

Bar Reinforcing Mesh is resistance-welded steel reinforcement panels embedded inside concrete slabs, cast walls, precast components, road pavements, tunnels and bridge decks. Made from deformed ribbed steel wires, uniform welded spacing greatly reduces manual steel bar binding jobs at construction sites and stabilizes reinforcement layout during concrete pouring. Common bar diameters include 6mm, 8mm, 10mm, 12mm (5mm available for lightweight non-structural use). Popular stock mesh spacing includes 100×100mm, 150×150mm, 200×200mm and 100×200mm. Actual panel dimensions, steel grade, overlapping length and concrete protective layer must comply with project structural drawings.

Specifications

Material: Deformed ribbed reinforcing steel wire (hot-rolled HRB400 / HRB500 or equivalent)
Bar Diameter: Standard sizes 6mm, 8mm, 10mm, 12mm (5mm and 7mm available upon request as non-standard)
Mesh Opening: 100×100mm, 150×150mm, 200×200mm, 100×200mm
Standard Panel Sizes: 2.0m×3.0m, 2.2m×5.8m, 2.4m×6.0m; custom cut panels available against construction drawings
Surface Finish: Raw black steel (default for concrete embedding); galvanized coating available upon special request
Panel Form: Flat welded sheets, custom cut pieces, bent forming mesh as per drawings
Welding Process: Full resistance welding at every wire intersection
Steel Grade: HRB400, HRB500, B500 or equivalent local structural steel grades
Packing: Bundled with steel straps; wooden pallets available for sea export

Application

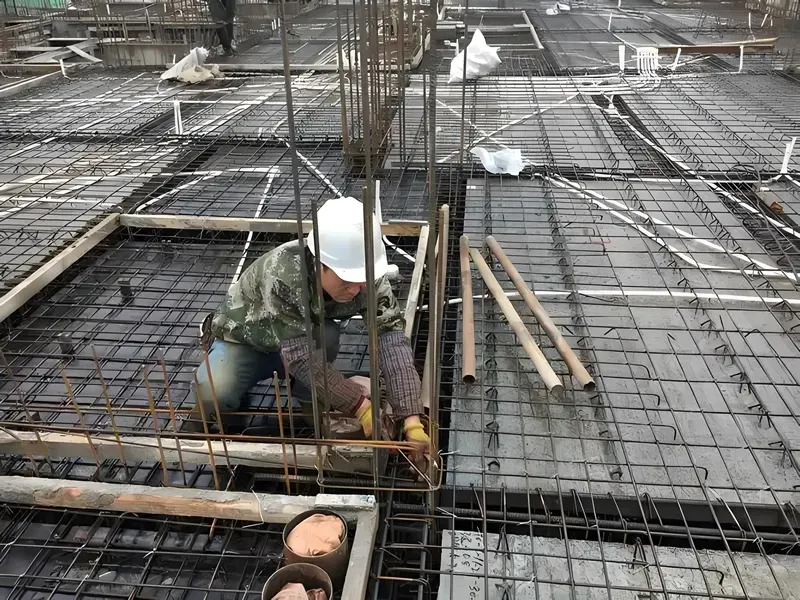

Concrete Floor Slabs – Residential house slabs, warehouse floors, driveways, light industrial concrete floors. 6mm & 8mm bars with 150mm or 200mm spacing are most widely selected.

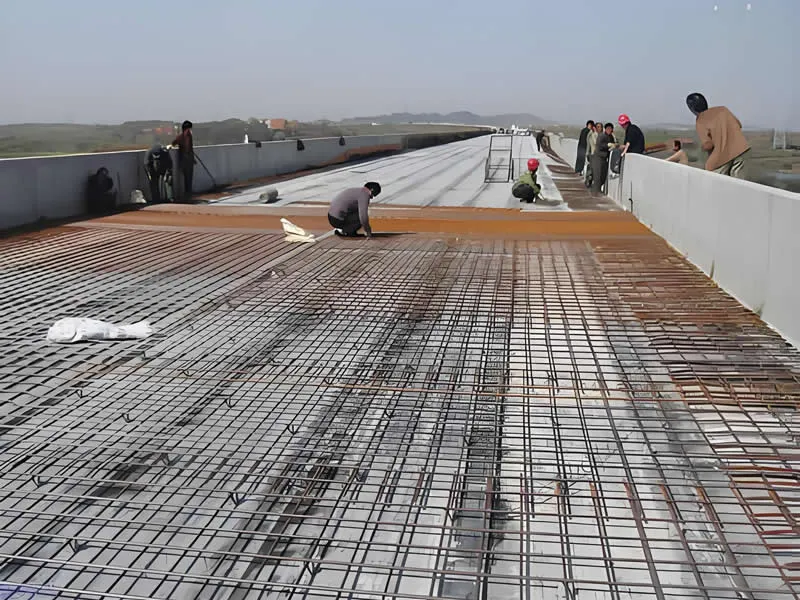

Road & Pavement Construction – Concrete road segments, sidewalks, hardstands, yard slabs. Panel dimensions adjustable to match pouring width and lap joint plans.
Precast Concrete Components – Custom cut mesh for precast wall panels, drainage channels, concrete cover plates, factory prefabricated units.

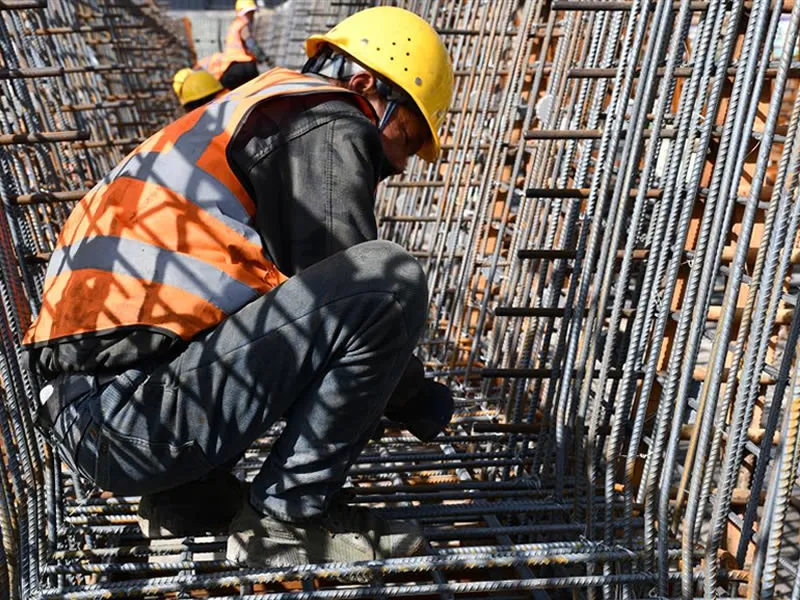

Cast Walls, Tunnels & Bridge Projects – Heavy-gauge reinforcement mesh for load-bearing structural walls, tunnel linings, bridge decks, retaining structures. Specifications fully determined by construction blueprints.

Stock Standard Bar Reinforcing Mesh Specifications

Bar Reinforcing Mesh – 6mm Bar, 200mm×200mm Opening
6mm ribbed bar mesh with 200mm square spacing, ideal for lightweight concrete slabs, sidewalks, small floor sections and small precast parts. Supplied as flat welded sheets.
Specs
Bar Diameter: 6mm
Mesh Opening: 200mm×200mm
Standard Panel Size: 2.0m×3.0m, custom cut supported
Material: Deformed ribbed reinforcing steel wire
Surface Finish: Raw black steel
Welding: Full resistance welded cross points
Packing: Steel strap bundled panels
Applications: Residential concrete slabs, sidewalks, lightweight precast units

Bar Reinforcing Mesh – 8mm Bar, 150mm×150mm Opening
8mm deformed bar mesh with dense 150mm square spacing for warehouse slabs, vehicle driveways, commercial building floors, medium load-bearing concrete areas.
Specs
Bar Diameter: 8mm
Mesh Opening: 150mm×150mm
Standard Panel Size: 2.2m×5.8m / 2.4m×6.0m
Material: Deformed steel reinforcing wire
Surface Finish: Raw black steel
Panel Form: Flat welded whole sheets
Packing: Steel strap bundles or export wooden pallets
Applications: Warehouse floors, driveways & loading zones, commercial building floor panels

Heavy-Duty Bar Reinforcing Mesh – 10mm Bar, 200mm×200mm Opening
10mm ribbed bar heavy reinforcement mesh for industrial floors, retaining walls, highway slabs and load-bearing structural concrete.
Specs
Bar Diameter: 10mm
Mesh Opening: 200mm×200mm
Standard Panel Size: 2.4m×6.0m, cuttable per drawings
Material: Deformed ribbed steel bar
Surface Finish: Raw black steel
Steel Grade: HRB400, B500 or equivalent
Processing: Custom cutting and bending available
Applications: Industrial factory floors, retaining wall panels, highway & hardstand slabs

Custom Cut Reinforcing Mesh – 7mm Bar, 100mm×200mm Opening
Custom-sized 7mm bar mesh with rectangular 100×200mm spacing. Used for precast wall panels, narrow concrete strips, drainage products and cast wall sections. All dimensions confirmed by drawings before production.
Specs
Bar Diameter: 7mm (non-standard, confirm availability)
Mesh Opening: 100mm×200mm
Panel Size: Fully produced to construction drawing requirements
Material: Deformed ribbed reinforcing wire
Surface Finish: Raw black steel
Panel Type: Flat sheets or bent formed mesh
Production Basis: Drawing confirmation mandatory
Applications: Precast wall panels, drainage channels & concrete cover plates, narrow concrete sections

Bar Reinforcing Mesh – 12mm Bar, 200mm×200mm Opening
Heavy load 12mm deformed bar mesh with 200mm square spacing for heavy-duty concrete slabs, load-bearing structural walls, bridge components and large industrial hardstands.
Specs
Bar Diameter: 12mm
Mesh Opening: 200mm×200mm
Standard Panel Size: 2.4m×6.0m or custom project sizes
Material: Deformed ribbed reinforcing steel bar
Surface Finish: Raw black steel
Packing: Steel strap bundles with lifting clearances for easy on-site unloading
Usage Note: All installation and structural use shall strictly follow official construction drawings
Applications: Heavy-duty concrete slabs, load-bearing structural walls, bridge and municipal infrastructure concrete sections
