Stainless Steel Woven Mesh

Our stainless steel woven mesh is crafted from premium stainless steel wire, available in square mesh and filter grades. It is widely used for sieving, filtration, ventilation, machine protection, as well as making drying trays, baskets and custom mesh components.

We supply 304, 304L, 316 and 316L grades. 304 works well for general screening and food-contact applications, while 316 series is ideal for environments with salt, chemical liquids and high corrosion risk. Plain weave is standard for square mesh; twill and Dutch weave are adopted for fine filtration. Products can be supplied in rolls, sheets, strips, discs or finished fabricated parts.

Plain Dutch Weave Mesh — Stainless Steel Five Heddle Mesh

Specifications

Material: 304, 304L, 316, 316L and 302 stainless steel. 304 for general use; 316 / 316L for chemical, marine and chloride-exposed conditions.

Mesh Count: 1 to 635 mesh per inch. Coarse mesh for guards and screening; fine mesh for filtration and sieving.

Wire Diameter: Ranges from 2.03mm (1 mesh) down to 0.0203mm (635 mesh).

Aperture: Opening size varies with mesh count and wire diameter. Please confirm aperture or micron rating before placing orders for filtration use.

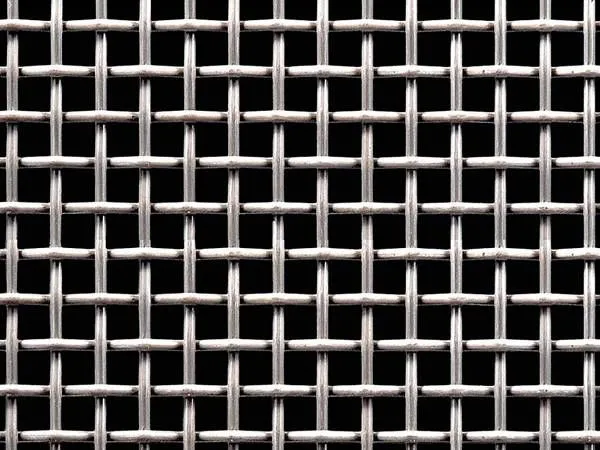

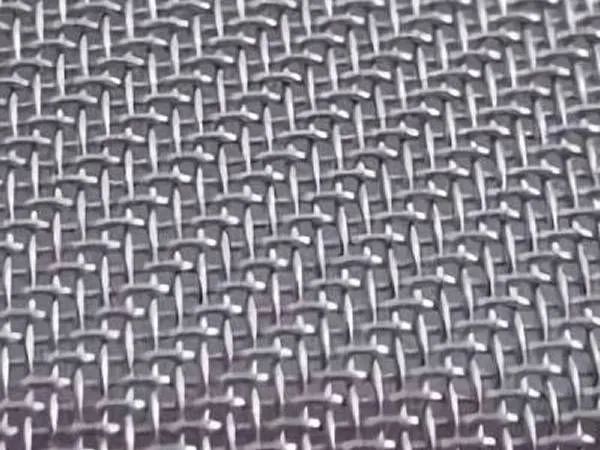

Weave Type: Plain weave, twill weave, plain Dutch weave, twill Dutch weave. Plain weave for standard square mesh; Dutch weave for fine filtration.

Roll Width: 0.914m, 1.0m, 1.22m, 1.5m. Custom slit widths available for filter production.

Roll Length: Standard 30m; short rolls and cut pieces are also offered.

Surface Finish: Natural stainless steel finish. Degreasing, cleaning and polishing can be arranged on request.

Edge Type: Cut edge, selvage edge, slit edge. Fine mesh rolls require proper edge protection during packing.

Processing: Slitting, cutting, disc punching, filter cylinder forming, frame welding, pleating and basket fabrication.

Packing: Paper tube + moisture-proof paper + plastic film, then packed in cartons, wooden cases or pallets.

Part Specs of Stainless Steel Woven Wire Mesh

Mesh/Inch	Wire Diameter		Aperture		Open Area	Weight(LB)/100 Square Feet
Mesh/Inch	Inch	MM	Inch	MM	(%)	Weight(LB)/100 Square Feet
1×1	.080	2.03	.920	23.37	84.6	41.1
2X2	.063	1.60	.437	11.10	76.4	51.2
3X3	.054	1.37	.279	7.09	70.1	56.7
4X4	.063	1.60	.187	4.75	56.0	104.8
4X4	.047	1.19	.203	5.16	65.9	57.6
5X5	.041	1.04	.159	4.04	63.2	54.9
6X6	.035	.89	.132	3.35	62.7	48.1
8X8	.028	.71	.097	2.46	60.2	41.1
10X10	.025	.64	.075	1.91	56.3	41.2
10X10	.020	.51	.080	2.03	64.0	26.1
12X12	.023	.584	.060	1.52	51.8	42.2
12X12	.020	.508	.063	1.60	57.2	31.6
14X14	.023	.584	.048	1.22	45.2	49.8
14X14	.020	.508	.051	1.30	51.0	37.2
16X16	.018	.457	.0445	1.13	50.7	34.5
18X18	.017	.432	.0386	.98	48.3	34.8
20X20	.020	.508	.0300	.76	36.0	55.2
20X20	.016	.406	.0340	.86	46.2	34.4
24X24	.014	.356	.0277	.70	44.2	31.8
30X30	.013	.330	.0203	.52	37.1	34.8
30X30	.012	.305	.0213	.54	40.8	29.4
30X30	.009	.229	.0243	.62	53.1	16.1
35X35	.011	.279	.0176	.45	37.9	29.0
40X40	.010	.254	.0150	.38	36.0	27.6
50X50	.0090	.229	.0110	.28	30.3	28.4
50X50	.008	.203	.0120	.31	36.0	22.1
60X60	.0075	.191	.0092	.23	30.5	23.7
60X60	.0070	.178	.0097	.25	33.9	20.4
70X70	.0065	.165	.0078	.20	29.8	20.8
80X80	.0065	.165	.0060	.15	23.0	23.2
80X80	.0055	.140	.0070	.18	31.4	16.9
90X90	.0050	.127	.0061	.16	30.1	15.8
100X100	.0045	.114	.0055	.14	30.3	14.2
100X100	.0040	.102	.0060	.15	36.0	11.0
100X100	.0035	.089	.0065	.17	42.3	8.3
110X110	.0040	.1016	.0051	.1295	30.7	12.4
120X120	.0037	.0940	.0064	.1168	30.7	11.6
150X150	.0026	.0660	.0041	.1041	37.4	7.1
160X160	.0025	.0635	.0038	.0965	36.4	5.94
180X180	.0023	.0584	.0033	.0838	34.7	6.7
200X200	.0021	.0533	.0029	.0737	33.6	6.2
250X250	.0016	.0406	.0024	.0610	36.0	4.4
270X270	.0016	.0406	.0021	.0533	32.2	4.7
300X300	.0015	.0381	.0018	.0457	29.7	3.04
325X325	.0014	.0356	.0017	.0432	30.0	4.40
400X400	.0010	.0254	.0015	.370	36.0	3.3
500X500	.0010	.0254	.0010	.0254	25.0	3.8
635X635	.0008	.0203	.0008	.0203	25.0	2.63

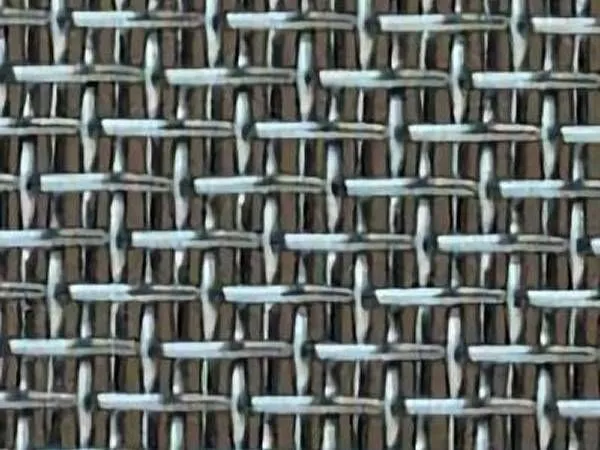

Stainless Steel Woven Wire Mesh – Five-Heddle Weave

Meshes/Inch(Warp X Weft)	Wire Dia (mm)	Aperture(mm)	Open Area( %)	Weight (kg/m2)
108 X 59	0.160	0.075 X 0.271	20	1.07
110 X 60	0.160	0.071 X 0.263	19	1.09
38 X 38	0.150	0.518 X 0.518	60	0.43

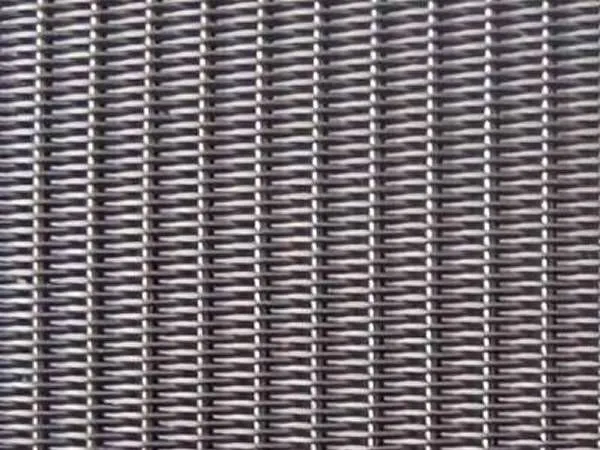

Stainless Steel Woven Wire Mesh – Plain Dutch Weave

Code	Mesh Count	Wire Dia. Warp X Weft	Filtering Precision
354#	90 x 550	0.12mm x 0.05	45
320#	81 x 780	0.10mm x 0.07mm	30
315#(1)	80 x 400	0.10mm x 0.065mm	40
315#(2)	80 x 600	0.10mm x 0.06mm	33
315#(3)	80 x 800	0.15mm x 0.04mm	38
315#(4)	80 x 700	0.11mm x 0.08mm	30
280#(1)	70 x 350	0.11mm x 0.08mm	35
280#(2)	70 x 385	0.11mm x 0.07mm	32
240#	65 x 330	0.11mm x 0.08mm	36
220#	56 x 280	0.14mm x 0.10mm	50
200#	50 x 250	0.14mm x 0.11mm	53
180#	45 x 250	0.16mm x 0.112mm	56
160#	40 x 200	0.20mm x 0.14mm	60
140#	35 x 175	0.22mm x 0.16mm	71
120#	30 x 150	0.25mm x 0.18mm	80
100#	25 x 140	0.28mm x 0.20mm	100
95#	24 x 110	0.35mm x 0.25mm	120
80#	20 x 300	0.35mm x 0.20mm	140
76#	19 x 140	0.32mm x 0.20mm	140
55#	14 x 88	0.40mm x 0.30mm	180
48#	12 x 64	0.58mm x 0.40mm	280
40#	10 x 79	0.50mm x 0.355mm	250
32#	8 x 62	0.63mm x 0.45mm	300
27#	7 x 40	0.90mm x 0.71mm	350

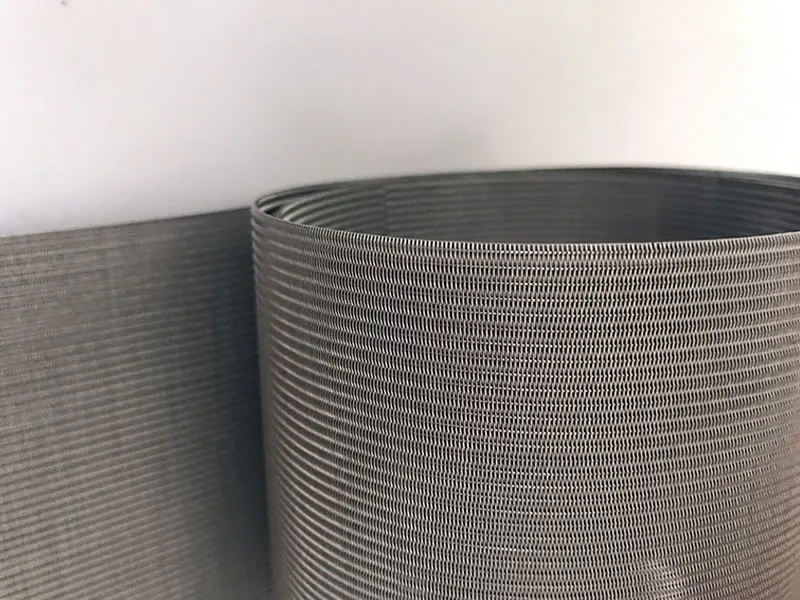

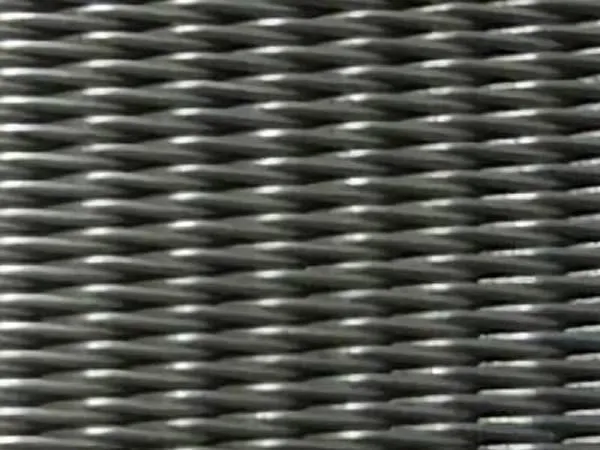

Stainless Steel Woven Wire Mesh – Twilled Dutch Weave

Code	Mesh Count	Wire Dia.Warp X Weft	Filtering Precision
1575#	400 x 2800	0.035mm x0.020mm	3
1280#	325 x 2300	0.035mm x 0.025mm	5
1250#	317 x 2235	0.035mm x0.025mm	5
1228#	312 x 2100	0.035mm x 0.025mm	5
1125#	285 x 2235	0.036mm x 0.025mm	7
985#	250 x 2000	0.04mm x 0.028mm	8
850#	216 x 1860	0.045mm x 0.030mm	9
795#	202 x 1760	0.05mm x 0.032mm	10
787#(1)	200 x 600	0.07mm x 0.06mm	10
787#(2)	200 x 800	0.07mm x 0.05mm	10
787#(3)	200 x 1400	0.07mm x 0.04mm	12
685#	174 x 1700	0.063mm x 0.032mm	13
650#(1)	165 x 400	0.07mm x 0.06mm	18
650#(2)	165 x 600	0.07mm x 0.05mm	18
650#(3)	165 x 800	0.07mm x 0.05mm	25
650#(4)	165 x 1100	0.07mm x 0.045mm	20
650#(5)	165 x 1400	0.07mm x 0.04mm	16
630#	160 x 1500	0.063mm x 0.04mm	15
511#(1)	130 X 1200	0.07mm x 0.045mm	18
511#(2)	130 x 1100	0.07mm x 0.05mm	17
472#	120 x 400	0.10mm x 0.075mm	19
400#	102 x 900	0.10mm x 0.063mm	20
360#	91 x 787	0.10mm x 0.07mm	25

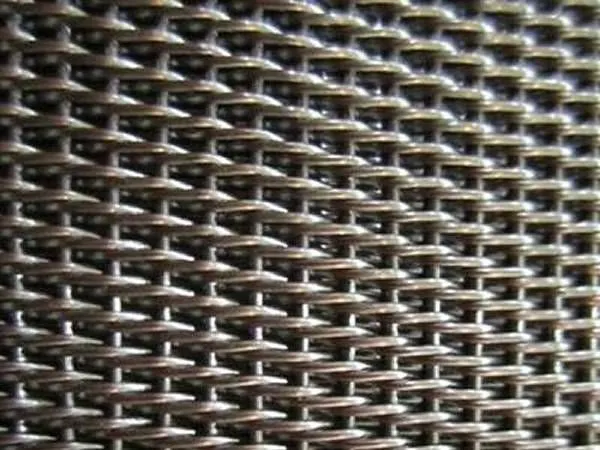

Stainless Steel Woven Wire Mesh – Reverse Dutch Weave

Code	Mesh	Wire Dia.	Filtering Precision
3346#	850 X 155	0.03mm X 0.10mm	19
2835#	720 X 150	0.036mm X 0.10mm	17
2460#	625 X 104	0.042mm X 0.16mm	28
2080#	528 X 70	0.049mm X 0.165mm	30
1575#	400 X 120	0.058mm X 0.10mm	30
1142#	290 X 76	0.09mm X 0.19mm	40
1280#	325 X 40	0.15mm X 0.30mm	110
1025#	260 X 40	0.15mm X 0.27mm	95
520#	132 X 17	0.32mm X0.45mm	195
190#	48 X 10	0.5mm X 0.5mm	300
