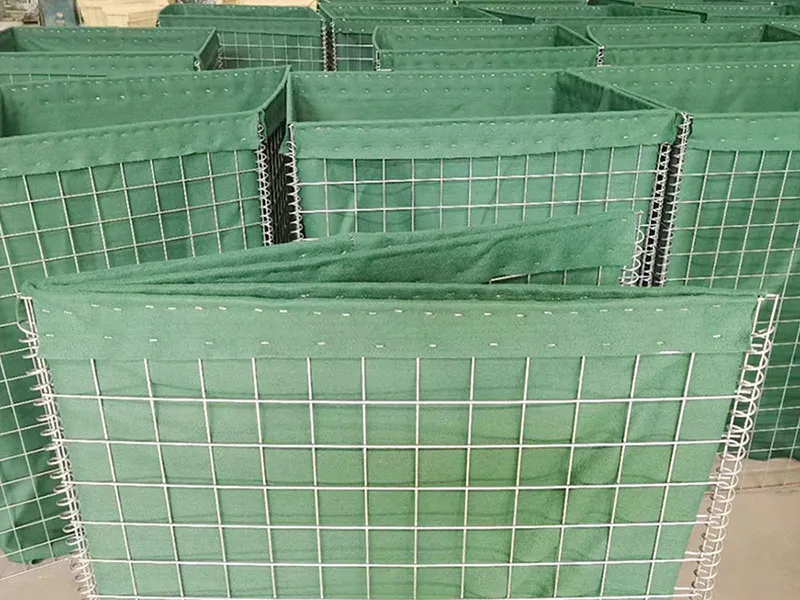

Our defense barriers are foldable welded mesh units equipped with heavy-duty non-woven geotextile liners. On-site filling with sand, soil, gravel or crushed stone creates sturdy protective walls. These products are widely used for military perimeters, temporary checkpoints, flood control and site security.

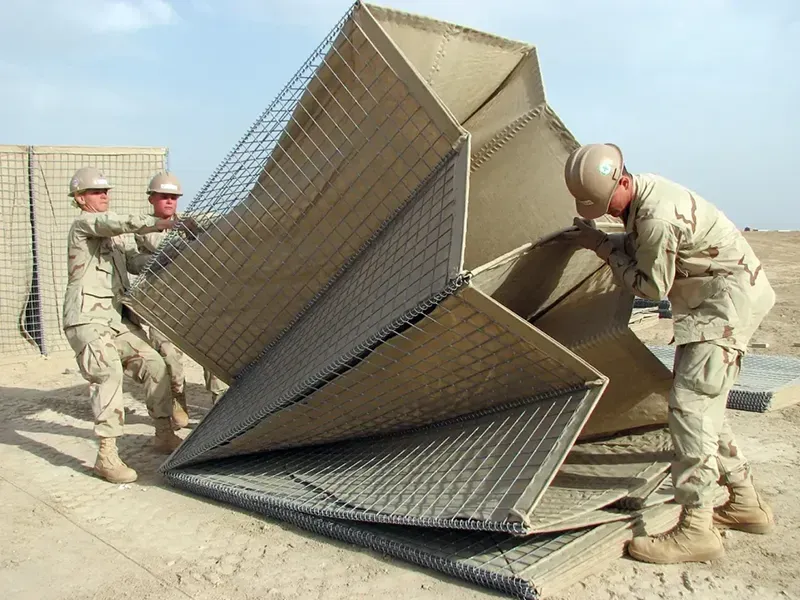

All units come folded for easy transportation and unfold quickly for installation. The rigid welded mesh maintains shape steadily, while the integrated geotextile liner holds fill materials in place. We adopt hot-dip galvanized wire and Galfan wire as standard materials, paired with UV-stabilized geotextile fabric. You can choose single-cell units or pre-connected multi-cell assemblies.
Defence Barrier Accessoies
Specifications
Main Structure: Welded steel mesh frame with integrated non-woven geotextile liner
Wire Material: Hot-dip galvanized steel wire or Galfan-coated steel wire. Galfan coating is recommended for long-term outdoor use.
Wire Diameter: 4.0mm, 4.5mm, 5.0mm
Mesh Aperture: 50mm×50mm, 75mm×75mm, 76.2mm×76.2mm
Geotextile Liner: Non-woven polypropylene fabric, available in beige, sand, green, grey and black
Fabric Weight: 250g/m² to 350g/m², selected according to project demands
Standard Cell Size: 0.61m×0.61m, 1.0m×1.0m, 1.37m×1.06m, 2.21m×2.13m; custom sizes are acceptable
Unit Configuration: Single cell or connected units (3, 4, 5, 9, 10 cells)

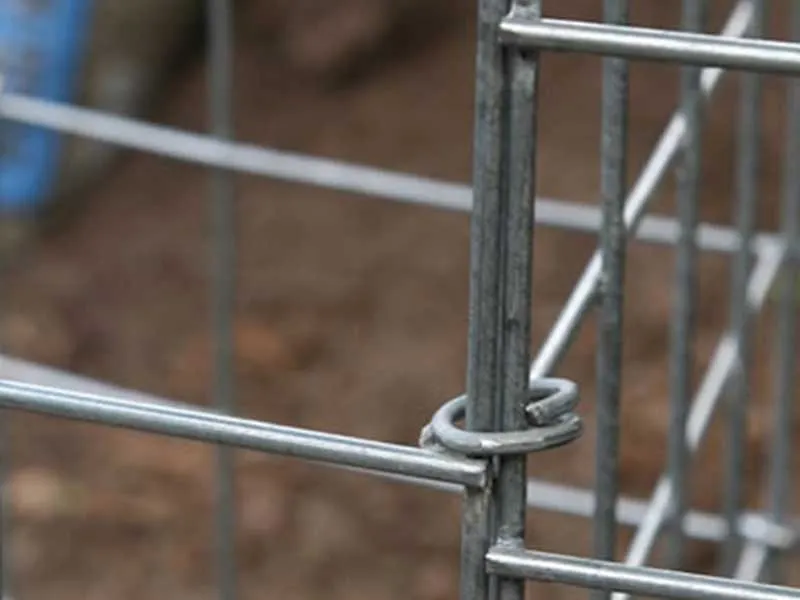

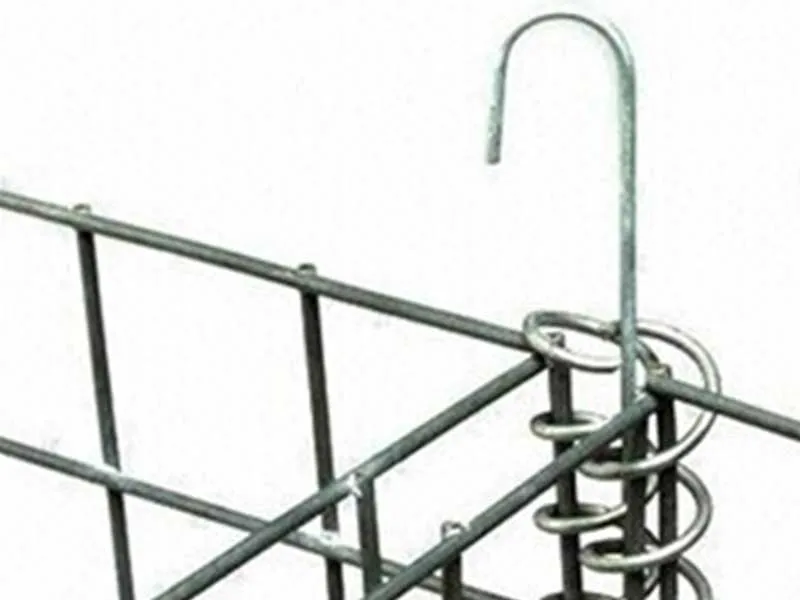

Connection Fittings: Spiral wire, hinge pins, spring clips and joining pins
Surface Treatment: Galvanized or Galfan coating. PVC coating is available upon special request; galvanized and Galfan remain the most popular options.
Fill Material: Sand, soil, gravel, crushed stone or local aggregates. Do not use sharp oversized stones, which may damage the liner.
Packing: Compressed folded units are loaded on pallets. Geotextile liners are pre-attached to mesh panels.
Installation Tips: Follow project drawings regarding fill height, wall layout, stacking methods and foundation conditions. Mechanical filling is recommended for large-scale barriers.
Application

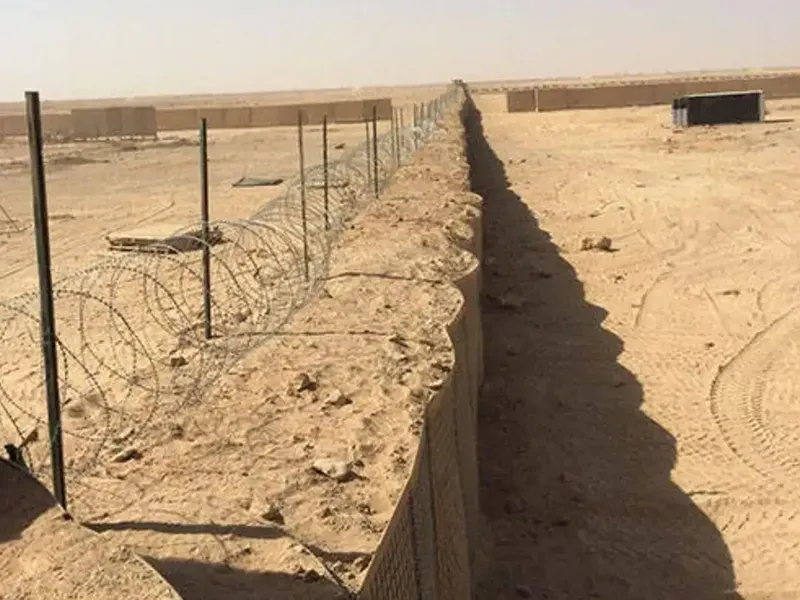

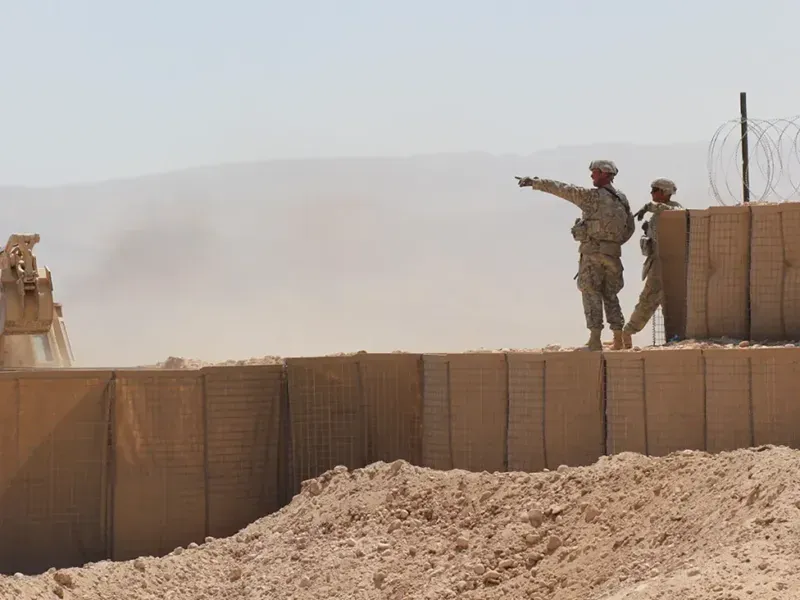

Military & Perimeter Protection
Suitable for military camps, command posts, storage areas and restricted zones. Larger units are adopted for higher protective walls.
Checkpoints & Access Control
Ideal for road checkpoints, vehicle lanes and guard posts. Compact single-cell units work perfectly in narrow spaces.
Flood Control & Emergency Works
Sand-filled barriers serve as temporary flood walls, riverbank protection and water diversion structures. Select proper liner specifications based on field conditions.
Industrial & Construction Site Security
Great for surrounding power plants, oil & gas facilities, warehouses and temporary construction sites, enabling fast perimeter setup.
Defense Barriers Product Specifications
Defense Barrier – 1.0m×1.0m×10m, 5 Connected Cells
This 5-cell connected barrier measures 1.0m×1.0m×10m. Built with welded mesh and geotextile liner, it is filled with sand, soil or gravel on site for perimeter defence, flood control and temporary site protection.
Technical Specifications
Unit Size: 1.0m H × 1.0m W × 10m L
Cell Quantity: 5 connected cells
Wire Diameter: 4.0mm / 5.0mm
Mesh Aperture: 75mm×75mm
Surface Coating: Hot-dip galvanized / Galfan-coated
Liner: Non-woven polypropylene geotextile
Fabric Weight: Approx. 300g/m²
Connection: Spiral wire or joining pins
Packing: Folded units loaded on pallets
Applications
Military camp perimeters, temporary construction barriers, emergency flood control walls.
Compact Defense Barrier – 0.61m×0.61m×1.22m, Single Cell
Compact single-cell barrier for small protection areas and access points. Its compact design allows flexible placement in limited spaces.
Technical Specifications
Cell Size: 0.61m H × 0.61m W × 1.22m L
Cell Type: Single cell
Wire Diameter: 4.0mm
Mesh Aperture: 50mm×50mm / 75mm×75mm
Surface Coating: Galvanized steel wire
Liner: Non-woven geotextile (sand / green)
Fill Material: Sand, soil or fine gravel
Assembly**: Unfold, position, connect and fill on site
Applications
Checkpoint protection, guard post enclosures, temporary access control.
Note: Not suitable for high retaining walls.
Large Defense Barrier – 2.21m×2.13m×27.74m, 9 Connected Cells
Heavy-duty 9-cell barrier for high defensive walls and long perimeter lines. Supplied in folded state and filled with local aggregates on site.
Technical Specifications
Unit Size: 2.21m H × 2.13m W × 27.74m L
Cell Quantity: 9 connected cells
Wire Diameter: 5.0mm (standard)
Mesh Aperture: 75mm×75mm / 76.2mm×76.2mm
Surface Coating: Galfan / Hot-dip galvanized
Liner: Heavy-duty non-woven polypropylene geotextile
Fabric Weight: 300g/m² – 350g/m²
Filling Method**: Use loaders or excavators for filling
Applications
Military perimeter walls, long earth-filled defensive barriers, large flood diversion lines.
Note: Inspect foundation and working space before filling.
Flood Control Barrier – 1.37m×1.06m×10m
Specially designed for temporary flood walls, riverbank emergency repair and water diversion. The mesh frame and geotextile liner effectively contain sand and soil.
Technical Specifications
Unit Size: 1.37m H × 1.06m W × 10m L
Structure: Multi-cell connected unit
Wire Diameter: 4.0mm / 5.0mm
Mesh Aperture: 75mm×75mm
Surface Coating: Hot-dip galvanized / Galfan
Liner: Non-woven polypropylene geotextile
Liner Color: Beige, green, grey or custom colours
Packing: Folded units loaded on pallets
Applications
Temporary flood barriers, riverbank emergency protection, drainage channel diversion works.
Galfan Defense Barrier – 1.22m×1.22m×10m, Sand Liner
Galfan-coated barrier with sand-colour liner. Boasts excellent durability for long-term outdoor use, ideal for outdoor security walls and temporary perimeters.
Technical Specifications
Unit Size: 1.22m H × 1.22m W × 10m L
Wire Diameter: 5.0mm
Mesh Aperture: 76.2mm×76.2mm
Surface Coating: Galfan coating
Liner: Non-woven polypropylene geotextile
Fabric Weight: Approx. 300g/m²
Liner Color: Sand
Connection: Spiral wire or hinge pins
Fill Material: Sand, soil, gravel or crushed stone
Applications
Outdoor defensive perimeters, key facility boundaries, temporary earth-filled security walls.
Green Liner Defense Barrier – 1.0m×1.0m×5m, 4.0mm Wire
4.0mm wire barrier fitted with green geotextile liner. Suited for training grounds, equipment yards and short perimeter sections.
Technical Specifications
Unit Size: 1.0m H × 1.0m W × 5m L
Wire Diameter: 4.0mm
Mesh Aperture: 75mm×75mm
Surface Material: Galvanized steel wire
Liner: Green non-woven polypropylene geotextile
Structure: Connected cells
Packing: Folded units with pre-attached liner
Applications
Training ground barriers, equipment yard protection, short perimeter walls.
