Aluminum Expanded Mesh

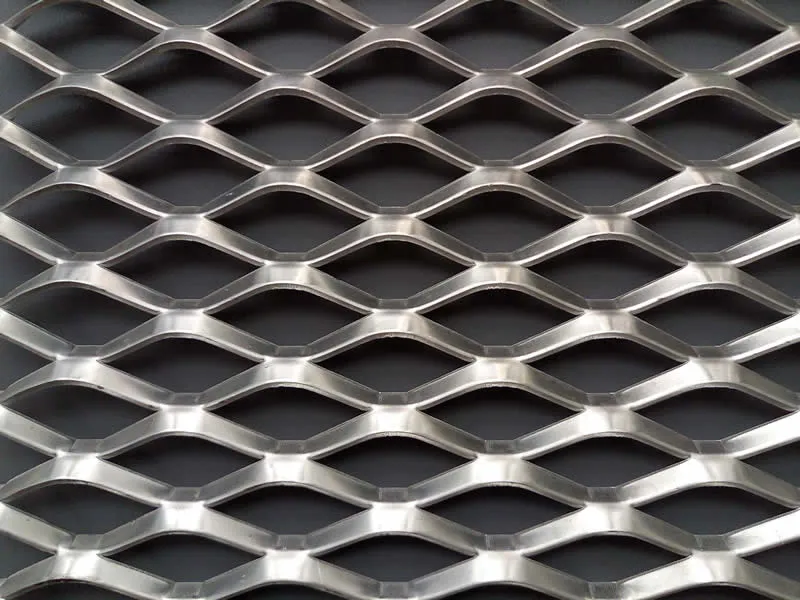

Aluminum expanded metal is processed by slitting and stretching whole aluminum sheets into an integrated mesh without welding spots. We supply raised mesh with natural angled strands and flattened mesh rolled for smooth surfaces. Lighter than steel expanded metal, it is widely chosen for architectural decoration to lower overall panel weight.

Available aluminum alloys: 1060, 3003, 5052, 6061-T6. 3003 is standard for indoor and general facade panels; 5052 offers superior corrosion resistance for outdoor and coastal projects. Products can be delivered as full sheets, rolls or custom cut panels.

Specifications

Material: 1060 / 3003 / 5052 / 6061-T6 aluminum

Mesh Type: Raised, flattened, micro fine, decorative facade mesh

Opening: Diamond as standard; hexagonal, square patterns available via custom dies

Sheet Thickness: Regular stock range 0.5mm–5.0mm

SWD & LWD: Standard stock sizes S3×L6, S10×L25, S23×L60, S25×L50, S36×L100, S50×L80

Strand Width: 0.5mm–5.0mm, matched with thickness and diamond dimensions

Standard Panel Sizes: Width 1000/1220/1250/1500mm; Length 2000/2440/2500/3000mm, cut-to-size available

Surface Finish: Mill finish, anodized, powder coated, PVDF coating (for outdoor facades)

Processing: Cutting, flattening, bending, framing, hole punching

Packing: Sheets wrapped with protective film and stacked on export pallets; coated facade panels fitted with plastic corner guards

Order Info Required: Aluminum grade, thickness, SWD/LWD, mesh type, panel size, surface finish and fabrication drawings if needed.

Application

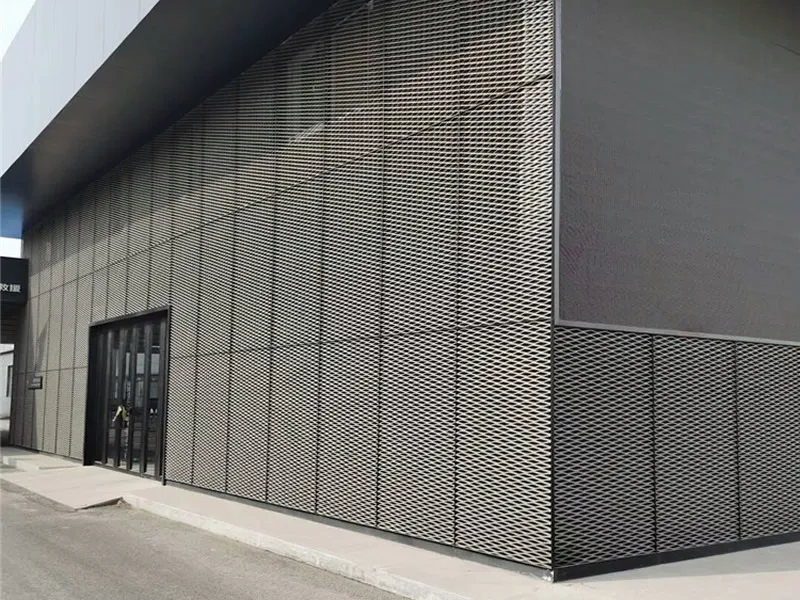

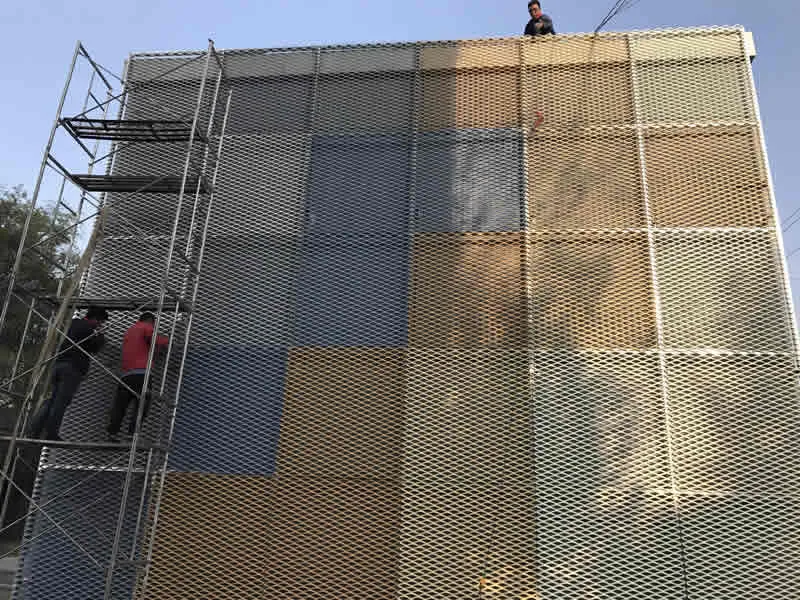

Building Facade & Sunshade: Exterior wall screens, sunshades, balcony and parking garage cladding. PVDF or outdoor powder coating recommended.

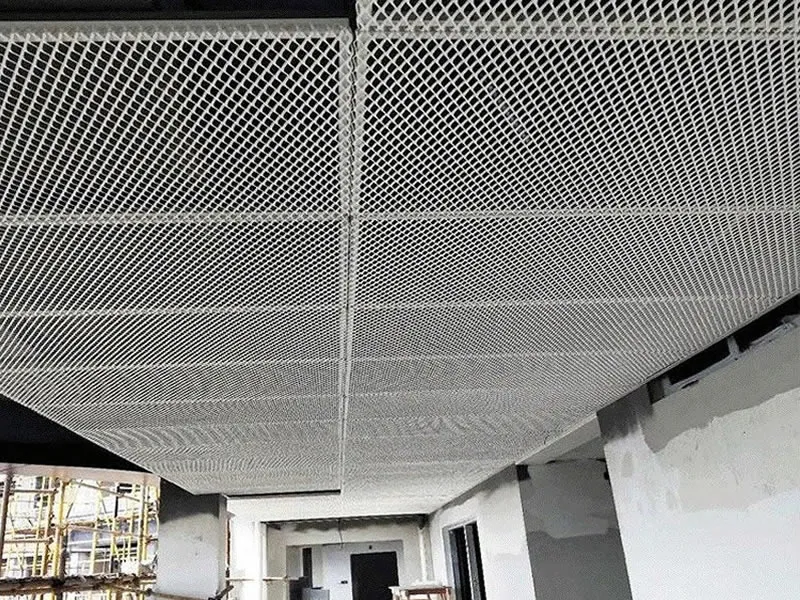

Ceiling & Interior Partition: Flattened mesh for suspended ceilings, retail partitions and decorative wall panels.

Ventilation & Equipment Guards: Air vents, speaker grilles, cabinet and machinery protective covers.

Light Custom Fabrication: Micro aluminum mesh for filter backing, small craft panels and miniature metal components.

Stock Aluminum Expanded Mesh Specifications

1.0mm | S10 L25 Aluminum Mesh

Lightweight mesh for ventilation panels, speaker grilles and cabinet inserts, available raised or flattened.

Specs

Material: 1060 / 3003 Al

Thickness: 1.0mm

SWD:10mm, LWD:25mm, Strand Width:1.1mm

Panel Size: 1000×2000mm or custom cut

Finish: Mill, anodized, powder coated

Applications: Vent covers, speaker grilles, cabinet guards

1.5mm | S23 L60 Raised Aluminum Mesh

Medium mesh with wide diamond openings for interior partitions and light facade sections, only raised type.

Specs

Material: 3003 / 5052 Al

Thickness:1.5mm

SWD:23mm, LWD:60mm, Strand Width:2.6mm

Panel Size:1220×2440mm or custom

Finish: Mill, powder coated

Applications: Interior partitions, decorative wall panels, light facade screens

Note: Confirm mesh laying direction before cutting for visible projects.

2.0mm Raw Thickness | S25 L50 Flattened Aluminum Mesh

Fully flattened smooth mesh for ceilings, decorative screens and shelf panels.

Specs

Material:3003 / 5052 Al

Raw Thickness:2.0mm

SWD:25mm, LWD:50mm, Strand Width:3.0mm

Panel Width:1000/1220/1500mm; Length customizable

Finish: Anodized, powder coated

Applications: Suspended ceilings, architectural screens, equipment guards

2.5mm | S50 L80 Facade Aluminum Mesh

Large-opening decorative mesh dedicated to outdoor facades and sunshades, customizable RAL coating colors.

Specs

Material:3003 / 5052 Al

Thickness:2.5mm

SWD:50mm, LWD:80mm, Strand Width:4.5mm

Panel Size:1500×3000mm or cut panels

Finish: Outdoor powder coating, PVDF coating

Applications: Exterior cladding, sunshade screens, parking garage panels

Note: Supply installation drawings and coating standards before mass production.

0.5mm | S3 L6 Micro Aluminum Mesh

Ultra-thin micro mesh for filter backing and miniature speaker grilles, supplied in sheets or rolls.

Specs

Material:1060 / 3003 Al

Thickness:0.5mm

SWD:3mm, LWD:6mm, Strand Width:0.5mm

Form: Flat sheet or continuous roll

Finish: Mill, anodized

Applications: Filter support mesh, small speaker covers, craft decorative panels

3.0mm | S36 L100 Heavy Aluminum Mesh

Thick heavy-duty mesh with high rigidity for large balcony panels and industrial protective screens, custom fabrication supported.

Specs

Material:5052 / 6061-T6 Al

Thickness:3.0mm

SWD:36mm, LWD:100mm, Strand Width:4.1mm

Panel Size:1220×2440mm / 1500×3000mm, fully customizable

Finish: Mill, anodized, powder coated

Processing: Cutting, bending, framing, hole punching

Applications: Large safety screens, balcony facade panels, industrial ventilation covers
