Expanded Metal Mesh

Expanded metal mesh is manufactured by slitting solid metal sheets and stretching them into an integrated mesh panel, no welding joints exist on the whole sheet. Diamond opening is our mainstream pattern, supplied in two core styles: raised and flattened. Raised mesh retains the natural angled strands formed during expansion, delivering anti-slip performance for walkway use. Flattened mesh undergoes secondary rolling after expansion to get a smooth, thin flat surface, more suitable for decorative cladding and shielding panels. Available raw materials cover carbon steel, pre-galvanized steel, stainless steel and aluminum alloy. This mesh serves multiple industries: machinery safety guards, industrial walkways, equipment housing, building facade cladding, filter backing, room partitions, storage racks and custom metal fabrication parts. All core dimensions including base sheet thickness, SWD, LWD, strand width, finished sheet size and surface coating must be confirmed before placing orders.

Specifications

Material: Hot rolled & cold rolled carbon steel, electro-galvanized steel, hot dipped galvanized steel, 304 & 316 stainless steel; aluminum grades 1060, 3003, 5052, 6061-T6 available upon request.

Mesh Type: Standard raised expanded metal, flattened expanded metal, micro fine expanded metal, architectural decorative expanded mesh, heavy-duty expanded metal grating for flooring.

Opening Shape: Diamond mesh as standard stock item. Hexagonal, round and square patterns can be custom-produced for special architectural and filter projects.

Thickness Range: Regular production thickness from 0.3mm up to 12mm; thickness selection matched with opening dimension and load requirements.

SWD (Short Way of Diamond): Center-to-center distance between two adjacent bond points along the short diamond axis.

LWD (Long Way of Diamond): Center-to-center distance between two adjacent bond points along the long diamond axis.

SWO (Short Way of Opening): Clear opening width on the short side, strand width excluded from measurement.

LWO (Long Way of Opening): Clear opening width on the long side, strand width excluded from measurement.

Strand Width: Regular stock strand widths range from 0.5mm to 8.0mm.

Standard Sheet Width: 1000mm, 1220mm, 1250mm, 1500mm. Extra-wide sheets negotiable based on sheet thickness and production machine capacity.

Sheet Length: All lengths customizable against client drawings. Thin lightweight mesh can be supplied in continuous rolls, maximum roll length subject to shipping and packaging restrictions.

Surface Treatment: Raw black steel, hot dipped galvanized, electro galvanized, powder coating, liquid paint coating, anodized finish for aluminum, natural mill finish for stainless steel.

Processing Options: Straight cutting, flattening, bending, frame welding, edge trimming, coil rolling and fully custom fabricated panels.

Packing: Flat mesh sheets stacked and secured on export wooden pallets. Mesh rolls wrapped with waterproof plastic film. Framed finished panels fitted with plastic corner guards to avoid edge damage in transit.

Application

Machine Guards and Equipment Covers

Widely adopted as safety guard panels, equipment protective housings, ventilation shields and workshop isolation screens. Carbon steel and pre-galvanized steel are the most cost-effective choices for general machinery projects.

Walkways, Platforms, and Stair Areas

Heavy-duty raised expanded metal grating is used for service platforms, stair tread surfaces and factory maintenance walkways. Clients need to check supporting span and live load requirements before final specification selection.

Building Facade and Interior Screens

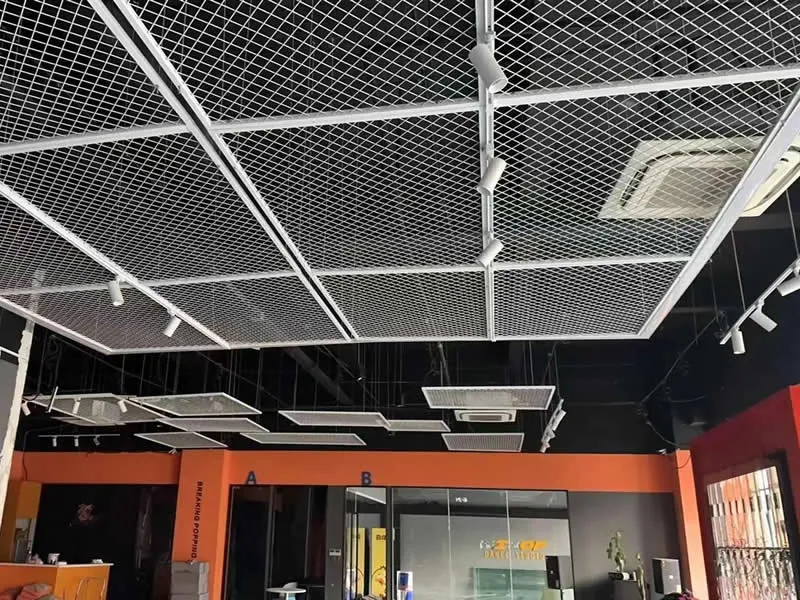

Aluminum expanded metal dominates architectural projects for exterior wall cladding, ceiling panels, space partitions and decorative screens. Powder coating or aluminum anodizing are the preferred surface treatments for construction mesh.

Filtration and Fabricated Parts

Micro fine expanded metal and stainless steel mesh act as support layers for filter elements, audio speaker grilles, metal baskets and storage shelves. We also produce all kinds of custom mesh components according to client technical drawings.

Standard Stock Specifications

Carbon Steel Raised Expanded Metal Mesh – S10 L25 W1.1, 0.5mm Base Thickness

Light-duty raised carbon steel mesh with S10 L25 diamond pattern, widely used for small machine housings, ventilation panels and lightweight custom mesh parts. Base sheet thickness 0.5mm, SWD 10mm, LWD 25mm, strand width 1.1mm.

Technical Specifications

Material: Low carbon steel

Mesh Type: Standard raised expanded metal

Base Sheet Thickness: 0.5mm

SWD: 10mm

LWD: 25mm

Strand Width: 1.1mm

Reference Unit Weight: 0.88kg/m²

Surface Options: Raw black steel, liquid paint coating, post-galvanizing treatment

Available Forms: Full flat sheets, custom sized cut panels

Applications

Light machine protective covers

Ventilation grille panels

Small equipment guards and stamped mesh components

Micro Fine Expanded Metal Mesh – S2.5 L4.5 W0.5, 0.5mm Base Thickness

Ultra-fine micro expanded metal with tiny diamond openings, ideal for audio speaker grilles, filter backing mesh and precision small equipment covers. Base thickness 0.5mm, SWD 2.5mm, LWD 4.5mm, strand width 0.5mm.

Technical Specifications

Material: Carbon steel, 304 stainless steel, aluminum alloy available by order

Mesh Type: Micro fine expanded metal

Base Sheet Thickness: 0.5mm

SWD: 2.5mm

LWD: 4.5mm

Strand Width: 0.5mm

Carbon Steel Reference Weight: 1.57kg/m²

Surface Treatments: Natural raw finish, electro galvanized, paint coated, powder coated

Applications

Speaker grille mesh panels

Filter element backing support

Mini equipment covers and decorative insert mesh

Note: All micro fine mesh must be packed flat on pallets; rolling will cause permanent bending deformation during shipping.

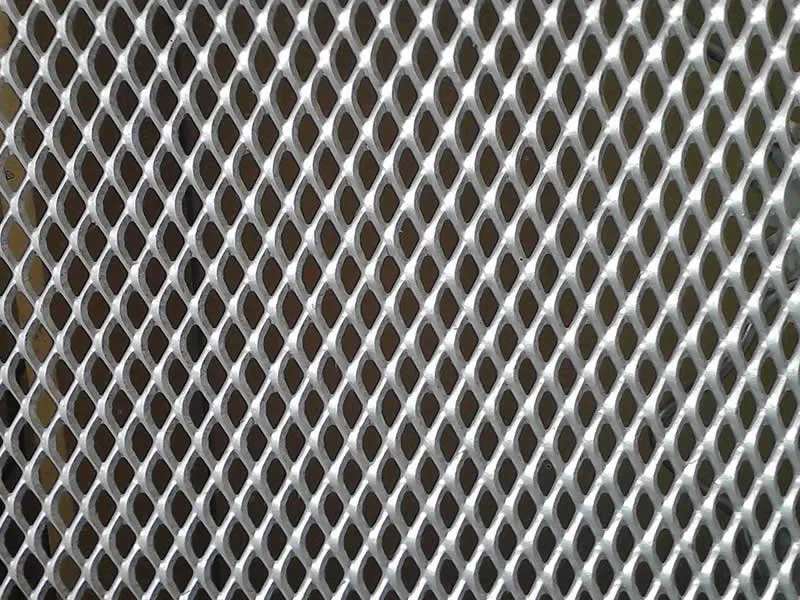

Standard Raised Expanded Metal Sheet – S15 L40 W1.7, 1.0mm Base Thickness

Popular medium-light raised diamond mesh with S15 L40 pattern, universal option for workshop partition panels, equipment safety screens, shelf inserts and general metal fabrication works. Base sheet thickness 1.0mm, SWD 15mm, LWD 40mm, strand width 1.7mm.

Technical Specifications

Material: Low carbon steel, pre-galvanized steel

Mesh Type: Raised diamond expanded metal

Base Sheet Thickness: 1.0mm

SWD: 15mm

LWD: 40mm

Strand Width: 1.7mm

Reference Unit Weight: 1.76kg/m²

Standard Sheet Width: 1000mm, 1220mm, custom widths acceptable

Processing Support: Cutting, bending, secondary flattening, frame welding

Applications

Workshop dividing partition panels

General industrial protective mesh screens

Storage rack inserts, equipment covers and lightweight enclosure panels

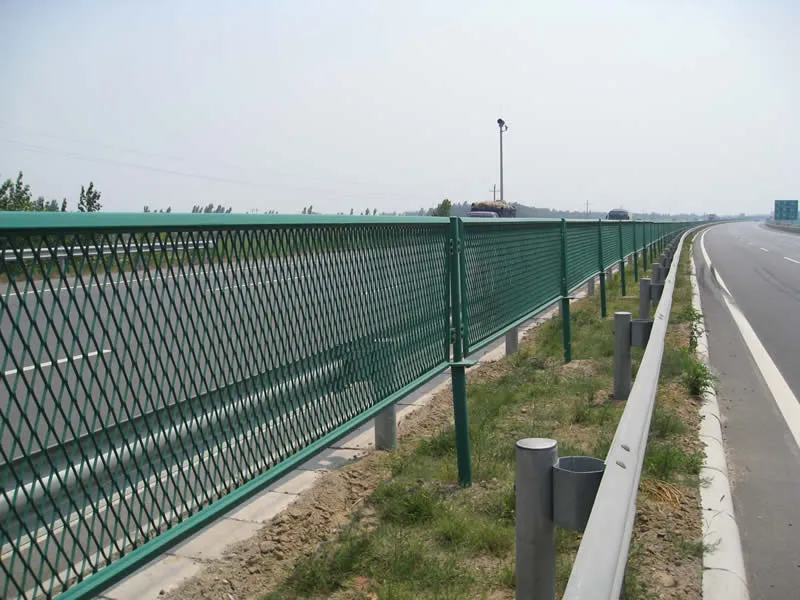

Galvanized Raised Expanded Metal Mesh – S22 L60 W2.6, 2.0mm Base Thickness

Medium heavy galvanized expanded metal with S22 L60 diamond openings, developed for outdoor safety guards, fence infill panels, walkway side shielding and industrial ventilation screens. Base thickness 2.0mm, SWD 22mm, LWD 60mm, strand width 2.6mm.

Technical Specifications

Material: Pre-galvanized steel sheet, raw carbon steel for post-galvanizing processing

Mesh Type: Raised expanded metal

Base Sheet Thickness: 2.0mm

SWD: 22mm

LWD: 60mm

Strand Width: 2.6mm

Reference Unit Weight: 3.71kg/m²

Surface Finishes: Hot dipped galvanized, liquid paint coating, outdoor powder coating

Product Forms: Full flat sheets, custom fabricated framed panels

Applications

Outdoor machinery safety guards

Metal fence & gate infill mesh

Industrial side shielding and large ventilation panels

Note: Cut edges generated during custom cutting lose galvanized coating; buyers may request touch-up paint for outdoor installation.

Heavy-Duty Expanded Metal Grating – S36 L100 W4.1, 3.0mm Base Thickness

Heavy load raised expanded metal grating with thick strands and large diamond openings, used for factory access flooring, maintenance walkways, stair tread surfaces and heavy machinery protective screens. Base sheet thickness 3.0mm, SWD 36mm, LWD 100mm, strand width 4.1mm.

Technical Specifications

Material: Low carbon steel

Mesh Type: Heavy-duty raised expanded metal grating

Base Sheet Thickness: 3.0mm

SWD: 36mm

LWD: 100mm

Strand Width: 4.1mm

Reference Unit Weight: 5.30kg/m²

Surface Finishes: Raw black steel, hot dipped galvanized, industrial paint coating

Installation Tip: Confirm mesh laying direction against supporting steel beams before site installation

Applications

Factory maintenance walkway flooring

Equipment access floor panels

Heavy machinery full safety shielding screens

Note: For pedestrian walkway application, cross-check span distance and live load rating to avoid safety hazards.

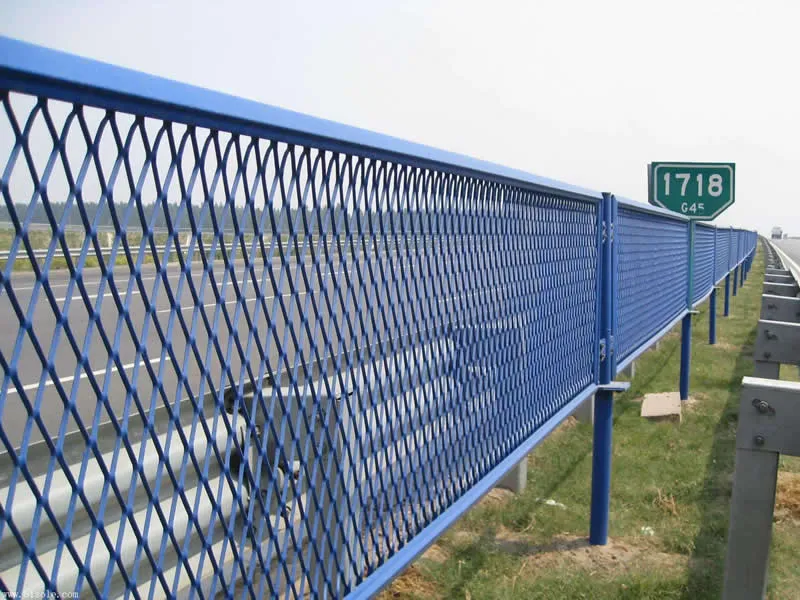

Large Opening Decorative Expanded Metal Mesh – S50 L152.4 W3.5, 2.3mm Base Thickness

Wide diamond opening expanded metal for architectural decoration, offering excellent light penetration and air circulation. Mainly used for building facade screens, large ventilation panels, railing infill and decorative metal cladding. Base thickness 2.3mm, SWD 50mm, LWD 152.4mm, strand width 3.5mm.

Technical Specifications

Material: Carbon steel, galvanized steel, aluminum alloy available on request

Mesh Type: Large opening decorative diamond expanded mesh

Base Sheet Thickness: 2.3mm

SWD: 50mm

LWD: 152.4mm

Strand Width: 3.5mm

Carbon Steel Reference Weight: 2.53kg/m²

Surface Treatments: Outdoor powder coating, hot dipped galvanizing, liquid paint, anodizing finish for aluminum mesh

Finished Panel Size: Fully cut and fabricated per client construction drawings

Applications

Commercial building exterior facade cladding

Metal fence & balcony railing infill

Large factory ventilation panels and decorative screening
