Stainless Steel Wire Mesh

We supply woven stainless steel wire mesh in grades 304, 304L, 316 and 316L. It is widely used for screening, filtration, sieving, machine protection and ventilation, as well as food and chemical processing. Available in rolls, sheets, strips, discs and custom cut pieces.

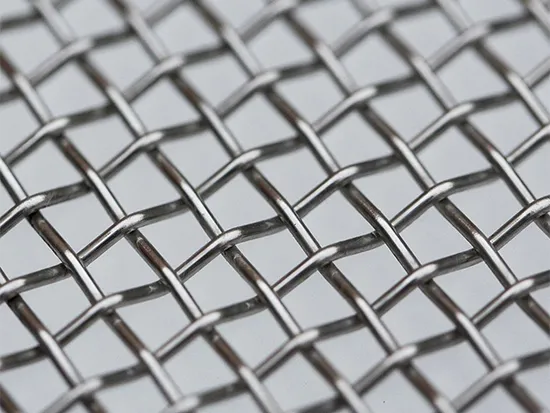

We adopt plain weave for standard square mesh, twill weave for fine mesh, and Dutch weave for professional filtration. Please confirm material grade, mesh count, wire diameter, width and edge style before placing orders.

Weave Type

Specifications

Material: 304, 304L, 316, 316L and 302 stainless steel. 304 for general screening and fabrication; 316/316L for chemical, marine and chloride-rich environments.

Mesh Count: 1 to 635 mesh per inch. Coarse mesh for safety guards, fine mesh for filtration and sieving.

Wire Diameter: From 2.03mm (1 mesh) down to 0.0203mm (635 mesh).

Aperture: Ranges from 23.37mm (1 mesh) to 0.0203mm (635 mesh).

Open Area: 25% to 84% for standard square mesh, varies by mesh count and wire diameter.

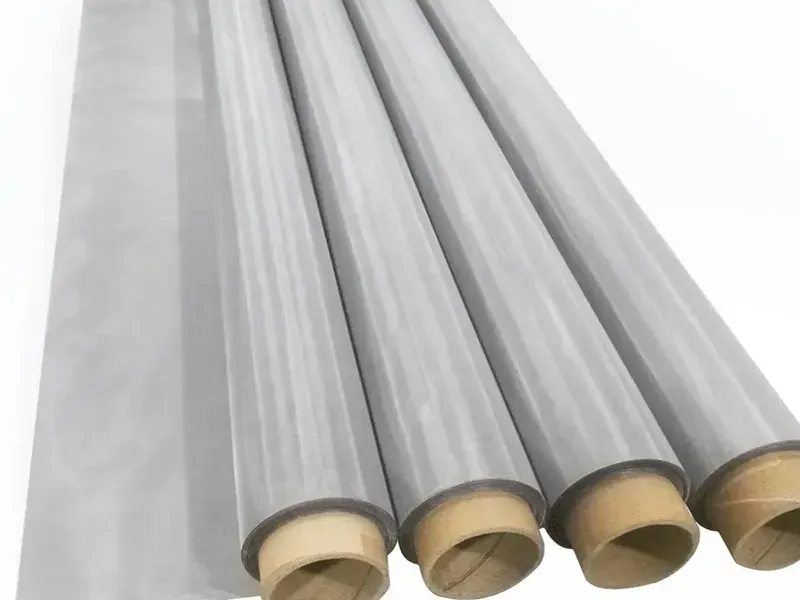

Roll Width: 0.914m, 1.0m, 1.22m, 1.5m. Custom slit widths available for strips and filters.

Roll Length: Standard 30m. Short rolls, sheets and cut pieces are acceptable.

Surface Finish: Natural finish. Degreasing, cleaning and polishing can be done on request.

Edge Type: Cut edge, selvage edge, slit edge. Edge protection for fine mesh rolls.

Processing: Slitting, cutting, disc punching, frame welding, pleating, filter cylinder and mesh basket fabrication.

Packing: Wrapped with moisture-proof paper and plastic film, then packed in cartons, wooden cases or pallets.

Order Requirements: Please specify material grade, mesh count, wire diameter, width, length, weave type and packing.

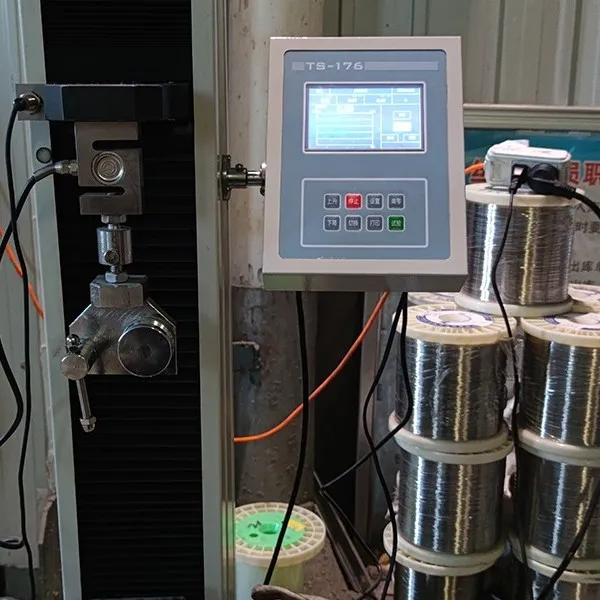

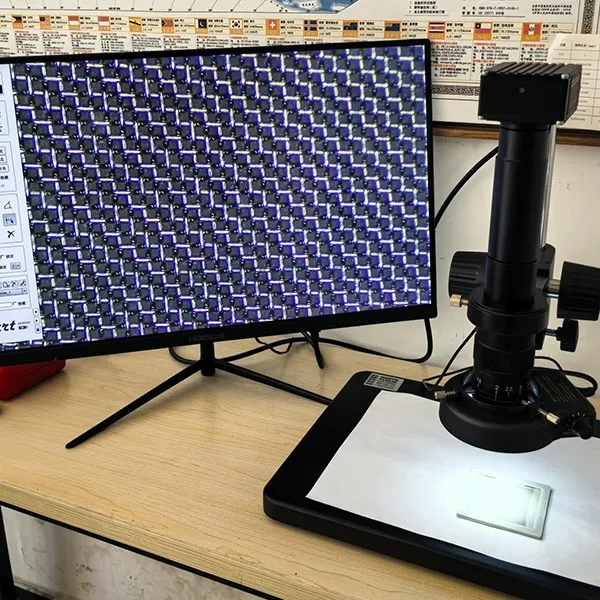

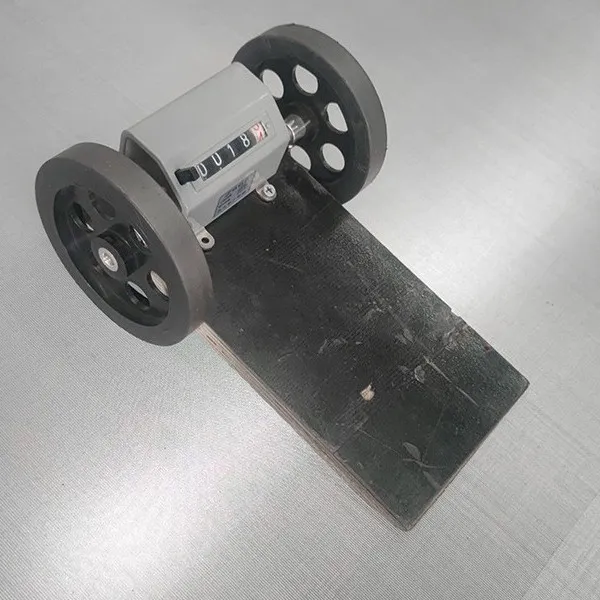

Quality Control

Product Specifications

304 Stainless Steel Wire Mesh – 10 Mesh, 0.64mm Wire

10 mesh 304 stainless steel mesh with 0.64mm wire. Suitable for coarse screening, machine guards and ventilation panels. Supplied in rolls or cut sheets.

Technical Specifications

Material: 304 stainless steel

Mesh Count: 10 × 10 mesh per inch

Wire Diameter: 0.64mm

Aperture: Approx. 1.91mm

Open Area: Approx. 56%

Weave Type: Plain weave

Form: Roll, sheet, strip or custom cut piece

Standard Width: 1.0m / 1.22m

Applications

Coarse powder screening, ventilation & safety guards, mesh baskets and framed panels.

316 Stainless Steel Wire Mesh – 40 Mesh, 0.254mm Wire

40 mesh 316 stainless steel mesh for liquid filtration, chemical screens and oil filter layers. 316 grade offers better resistance for harsh media and marine environments.

Technical Specifications

Material: 316 stainless steel

Mesh Count: 40 × 40 mesh per inch

Wire Diameter: 0.254mm

Aperture: Approx. 0.38mm

Open Area: Approx. 36%

Weave Type: Plain weave

Form: Roll, disc, strip or sheet

Surface: Natural stainless steel finish

Applications

Chemical liquid filtration, oil & fuel filter screens, marine & salt-resistant mesh parts.

Note: Confirm working medium, temperature and aperture before selection.

304L Fine Stainless Steel Wire Mesh – 100 Mesh, 0.102mm Wire

100 mesh 304L fine mesh for fine sieving, laboratory screens and small filter components. Low-carbon 304L complies with strict drawing requirements.

Technical Specifications

Material: 304L stainless steel

Mesh Count: 100 × 100 mesh per inch

Wire Diameter: 0.102mm

Aperture: Approx. 0.15mm

Open Area: Approx. 36%

Weave Type: Plain weave

Standard Width: 0.914m / 1.0m

Processing: Slitting, cutting and disc punching available

Applications

Fine powder sieving, laboratory screens, small filter discs and support layers.

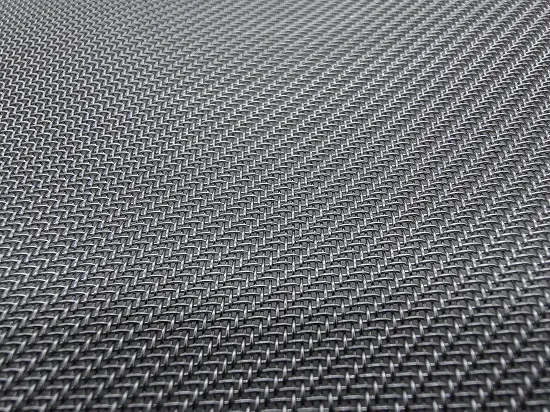

316L Twill Stainless Steel Mesh – 200 Mesh, 0.053mm Wire

200 mesh 316L twill weave mesh, designed for fine liquid filtration and pharmaceutical screens. Twill weave provides better structural support for ultra-fine mesh.

Technical Specifications

Material: 316L stainless steel

Mesh Count: 200 × 200 mesh per inch

Wire Diameter: 0.053mm

Aperture: Approx. 0.074mm

Open Area: Approx. 33.6%

Weave Type: Twill weave

Form: Roll, strip, disc or finished filter parts

Packing: Wrapped with paper and plastic film

Applications

Fine liquid filtration, pharmaceutical & chemical screening, filter discs and cartridge components.

Note: For filtration use, refer to aperture or micron rating instead of mesh count only.

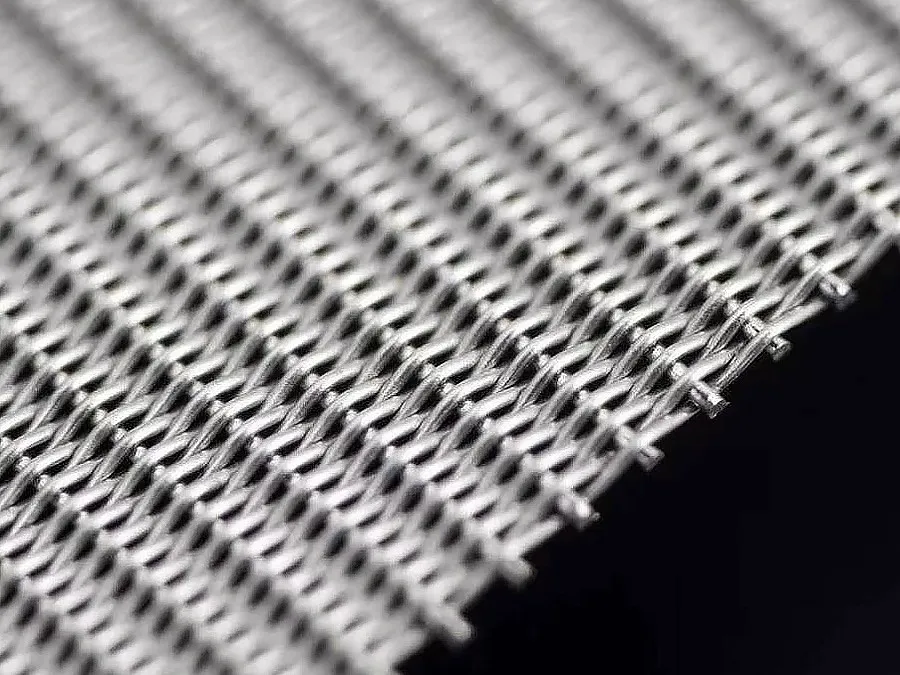

Stainless Steel Dutch Weave Mesh – 316 Grade, For Filtration

316 / 316L Dutch weave mesh for pressure filters, hydraulic and oil filtration. Different warp & weft wire diameters make it ideal for precision filtration.

Technical Specifications

Material: 316 / 316L stainless steel

Weave Type: Plain Dutch weave / Twill Dutch weave

Mesh Standard: Made to specific filtration grades

Wire Feature: Different diameter for warp and weft wires

Opening: Filter-grade opening (non-standard square aperture)

Form: Roll, strip, disc, cylinder or finished filter elements

Processing: Slitting, welding, pleating and forming per drawings

Order Reference: Filtration rating, structure, width and length

Applications

Hydraulic filter elements, oil & fuel filtration, chemical process filter screens.

Coarse 304 Stainless Steel Wire Mesh – 4 Mesh, 1.60mm Wire

Heavy-duty 4 mesh 304 stainless steel mesh with 1.60mm wire. Sturdy structure for safety guards, ventilation panels, baskets and coarse screening.

Technical Specifications

Material: 304 stainless steel

Mesh Count: 4 × 4 mesh per inch

Wire Diameter: 1.60mm

Aperture: Approx. 4.75mm

Open Area: Approx. 56%

Weave Type: Plain weave

Form: Roll or flat sheet

Fabrication: Cutting, bending and frame welding available

Applications

Machine safety guards, ventilation & insect screens, coarse sieving and wire baskets.
