Sports Court Fence

Sports Court Fence is a steel mesh enclosure for tennis courts, basketball courts, football fields, padel courts, school playgrounds and multi‑use games areas. It is typically constructed from PVC‑coated chain link mesh or welded mesh panels with galvanized steel posts. The fence contains balls within the court and separates playing areas from walkways, roads and spectator zones. Chain link mesh is widely used for tennis and school courts due to its flexibility to follow frames. Welded mesh panels are specified where a flat, rigid surface is required. Fence height, mesh opening, wire diameter, post size, gate position and coating color shall match the court layout.

Specifications

Fence Type: PVC‑coated chain link fence, welded mesh panel fence, framed sports fence, or combined fence with lower panel and upper netting.

Mesh Material: Galvanized steel wire with PVC coating; galvanized welded steel wire with powder coating.

Mesh Opening:

• Chain link: 45×45mm, 50×50mm, 60×60mm diamond mesh.
• Welded mesh: 50×50mm, 50×100mm, 50×200mm square/rectangular mesh.

Wire Diameter:

• Chain link: inner wire 2.5mm–4.0mm; coated diameter 3.5mm–5.0mm.
• Welded mesh: 4.0mm–6.0mm.

Fence Height: 2.5m, 3.0m, 3.6m, 4.0m, 5.0m.

• Tennis: 3.0m / 3.6m.
• Basketball / playground: 3.0m–4.0m.
• Football / futsal ball stop: 4.0m–5.0m.

Post Type: Round steel post, square post, rectangular post. Round posts standard for chain link.

Post Size:

• Round: 60mm, 76mm, 89mm, 114mm OD (2.0–3.0mm wall).
• Square: 60×60mm, 75×75mm.

Post Spacing: 2.5m–3.0m center to center.

Frame Option: Top rail, middle rail, bottom tension wire, brace rail, full frame per drawings.

Surface Treatment: Hot‑dipped galvanized + PVC coating; galvanized + powder coating; powder coating after welding.

Color: Green, black, blue, grey, custom RAL. Green and black are standard for outdoor courts.

Gate Option: Single pedestrian gate, double leaf gate, maintenance gate, sliding gate.

Installation Method: Posts embedded in concrete footings; base plate fixing on concrete slabs.

Application

Stock Product Specifications

Tennis Court Fence – 3.0m Height, 50mm Chain Link Mesh

Standard 3.0m tennis court fence with 50×50mm PVC‑coated chain link mesh. Supplied with round posts, top rail, tension wire, clamps and gate fittings.

Technical Specifications

• Fence Type: PVC‑coated chain link court fence
• Fence Height: 3.0m
• Mesh Opening: 50×50mm diamond mesh
• Wire Diameter: Inner 3.0mm; coated 4.0mm
• Post Size: 60mm or 76mm round post
• Frame: Top rail + tension wire
• Surface Treatment: Galvanized + PVC coating
• Color: Green or black

Applications

Tennis court perimeter; practice court enclosure; recreational court fencing.

Basketball Court Fence – 4.0m Height, 50mm Chain Link Mesh

Heavy‑duty 4.0m basketball court fence with 50×50mm chain link. Designed for high‑impact ball contact and long‑term outdoor use.

Technical Specifications

• Fence Type: PVC‑coated chain link court fence
• Fence Height: 4.0m
• Mesh Opening: 50×50mm diamond mesh
• Wire Diameter: Inner 3.5mm; coated 4.5mm
• Post Size: 76mm or 89mm round post
• Post Spacing: 2.5m–3.0m
• Frame: Top rail + middle rail + tension wire
• Surface Treatment: Galvanized + PVC coating
• Color: Green or black

Applications

Basketball court boundary; school playground fence; multi‑sport court enclosure.

Note: For 4.0m height, confirm wind load and footing size before shipment.

Welded Mesh Sports Court Fence – 3.0m Height, 50×50mm Mesh

Rigid 3.0m welded mesh fence with 50×50mm square openings. For padel courts, training areas and courts requiring flat panel surfaces.

Technical Specifications

• Fence Type: Welded mesh panel sports fence
• Fence Height: 3.0m
• Mesh Opening: 50×50mm
• Wire Diameter: 4.0mm or 5.0mm
• Panel Width: 2.0m or 2.5m
• Post Type: Square steel post or court frame post
• Surface Treatment: Galvanized + powder coating
• Color: Black, green or custom RAL
• Fixing: Clamps, bolts or frame connection

Applications

Padel court mesh sections; training court enclosure; multi‑use games area fencing.

Football Field Fence – 5.0m Height, 50mm Chain Link Mesh

5.0m high football field fence with 50×50mm chain link. For training pitches, futsal courts and high‑level ball stop boundaries.

Technical Specifications

• Fence Type: PVC‑coated chain link field fence
• Fence Height: 5.0m
• Mesh Opening: 50×50mm diamond mesh
• Wire Diameter: Inner 3.5mm–4.0mm; coated 4.5mm–5.0mm
• Post Size: 89mm or 114mm round post
• Post Spacing: 2.5m–3.0m
• Frame: Top rail + middle rail + tension wire
• Add‑On: Ball stop netting available above fence
• Surface Treatment: Galvanized + PVC coating

Applications

Football training field perimeter; futsal court enclosure; sports park ball stop fence.

Note: Tall fences require confirmed post depth, bracing and site wind load.

Multi‑Sport Court Fence – 3.6m Height, 45mm Chain Link Mesh

3.6m multi‑sport fence with 45×45mm mesh. For tennis practice, volleyball, basketball and school games areas; smaller mesh improves ball retention and visibility.

Technical Specifications

• Fence Type: PVC‑coated chain link fence
• Fence Height: 3.6m
• Mesh Opening: 45×45mm diamond mesh
• Wire Diameter: Inner 3.0mm; coated 4.0mm
• Post Size: 76mm or 89mm round post
• Surface Treatment: Hot‑dipped galvanized + PVC coating
• Color: Green or black
• Accessories: Top rail, tension bar, tie wire, brace bands, gate hardware

Applications

School multi‑use courts; tennis and volleyball practice areas; public recreation court fencing.

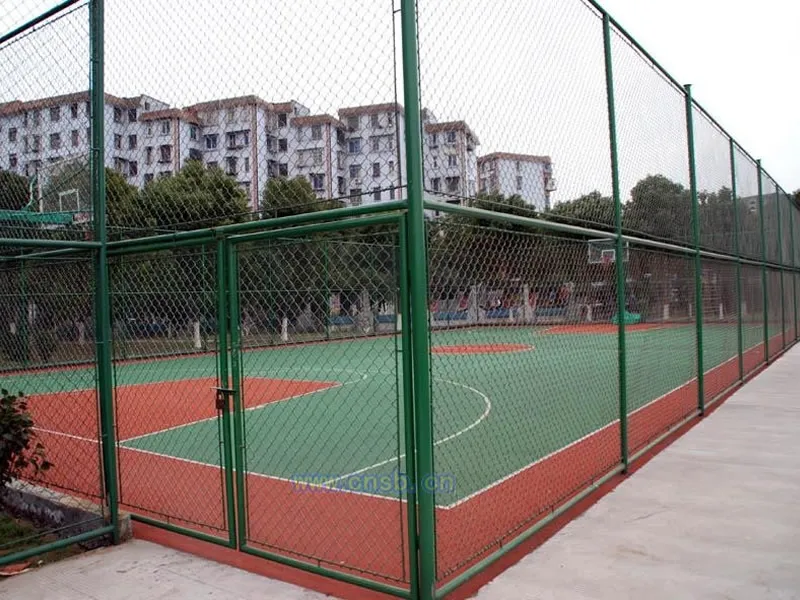

Sports Court Access Gate – 1.2m×2.0m, Chain Link Infill

1.2m×2.0m single pedestrian gate for player and maintenance access. Matches chain link or welded mesh court fence systems.

Technical Specifications

• Gate Type: Single pedestrian gate
• Gate Size: 1.2m W × 2.0m H
• Frame Tube: Galvanized steel round tube
• Infill Mesh: Chain link or welded mesh
• Mesh Opening: 50mm diamond or 50×50mm welded
• Surface Treatment: Galvanized + PVC coating or powder coating
• Color: Green, black or custom
• Hardware: Hinges, latch, lock plate, gate post

Applications

Tennis court access; basketball and school court entry; maintenance access for sports areas.
