Perforated Decorative Metal Sheet

Perforated decorative metal sheet is manufactured by stamping solid metal plates with round, square, slotted, hexagonal or custom decorative perforations. It is widely applied to wall cladding, ceiling boards, balcony screens, railing infill, cabinet inserts and building facade decoration. Aluminum sheets are preferred for ceilings and exterior sunshade screens thanks to low weight. Grade 304 stainless steel matches general indoor decorative projects requiring easy cleaning, while 316 stainless steel is selected for coastal or persistently humid environments. Galvanized and carbon steel substrates normally undergo powder coating after cutting and bending. These perforated sheets are delivered as flat blanks, cut-to-size panels or bent formed components following project drawings.

Specifications

Material: 3003/5052 aluminum, 304/316 stainless steel, galvanized steel, carbon steel, copper, brass

Sheet Thickness: 0.8mm, 1.0mm, 1.2mm, 1.5mm, 2.0mm, 2.5mm, 3.0mm

Hole Shapes: Round, square, slotted, hexagonal, diamond, custom decorative patterns per drawing

Common Round Hole Sizes: 2mm, 3mm, 5mm, 6mm, 8mm, 10mm, 15mm, 20mm

Common Slotted Hole Sizes: 5×20mm, 8×30mm, 10×30mm, 10×40mm

Pitch Layout: Straight pitch, staggered pitch, custom pitch as per design drawing

Open Area Ratio: 20% to 60%, determined by hole dimension, pitch and plate thickness

Standard Blank Sizes: 1000×2000mm, 1220×2440mm, 1250×2500mm, 1500×3000mm

Surface Finishes: Mill finish, brushed stainless, anodized aluminum, powder coating, PVDF coating for exterior aluminum panels, pre-galvanized finish

Edge Treatments: Sheared raw edge, folded edge, hemmed edge, framed edge, pre-punched mounting holes per drawing

Available Fabrication: Cutting, bending, rolling, welding, pre-drilling mounting holes, frame assembly

Packing: Flat sheets and formed panels loaded on wooden pallets, covered with protective film, moisture-proof wrap and edge guards

Application

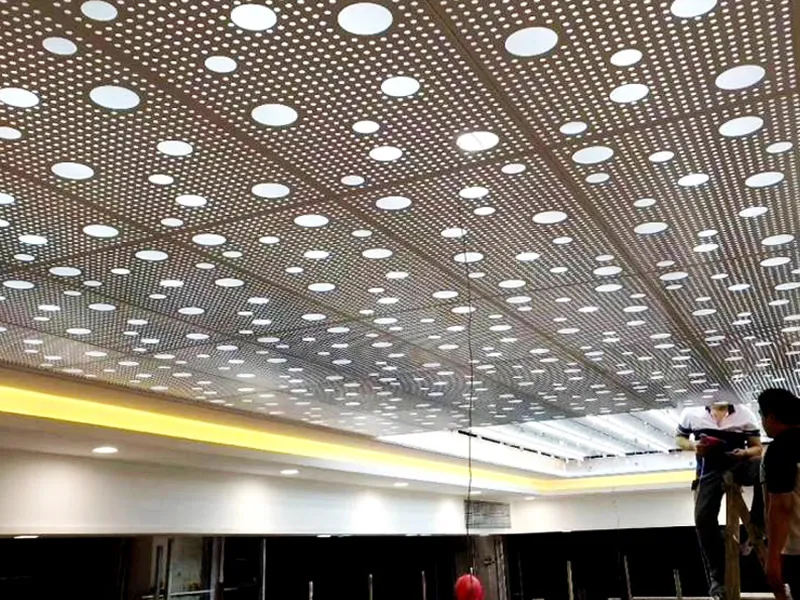

Interior Wall & Ceiling Panels

Suitable for offices, hotels, retail shops, corridor ceilings, elevator interiors and reception backdrop walls.

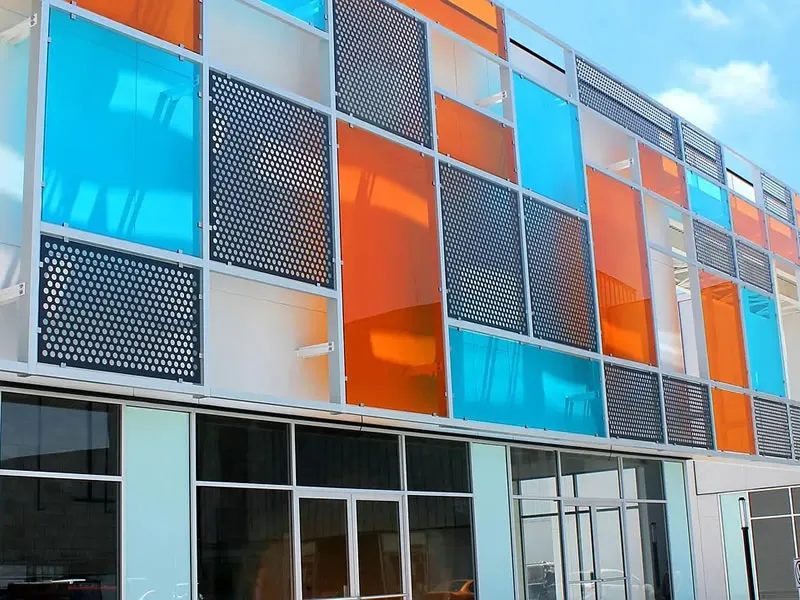

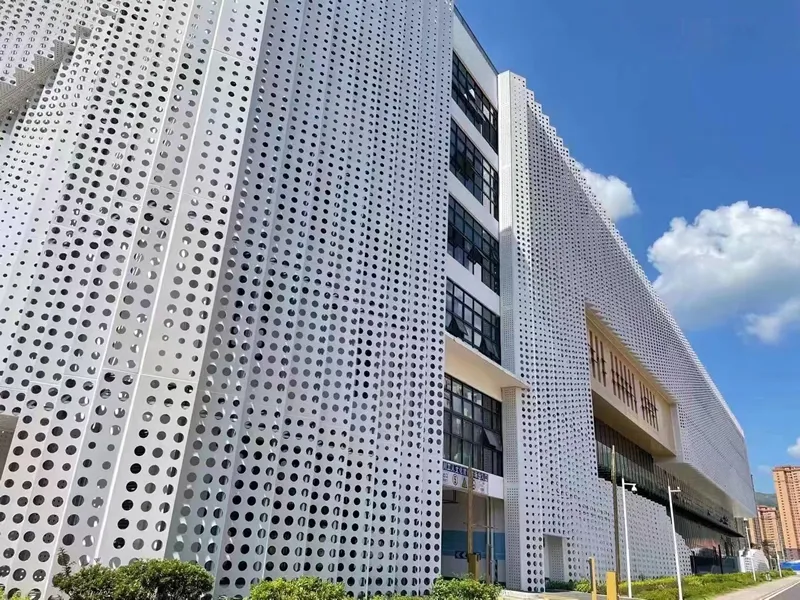

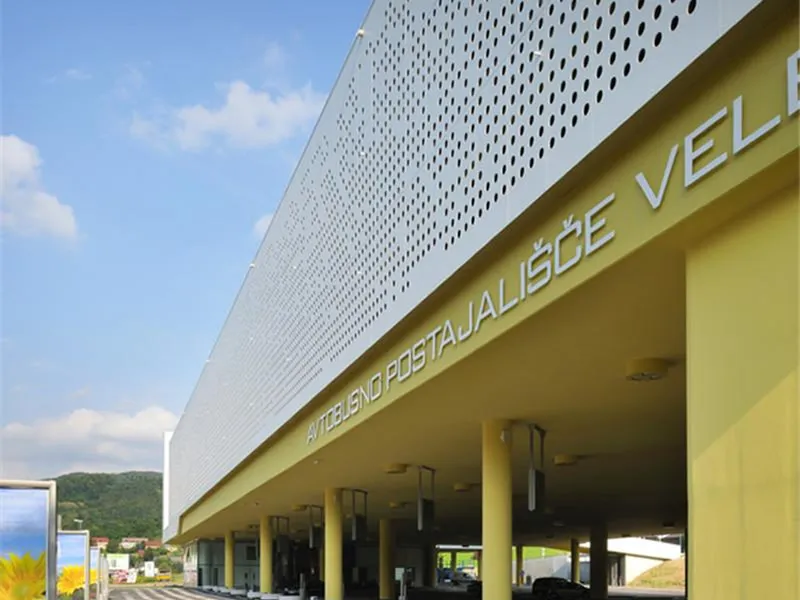

Exterior Facade & Sunshade Screens

Aluminum perforated panels act as outdoor sunshades and building facades; wind load and mounting structure must be confirmed prior to production.

Balcony & Stair Railing Infill

Stainless steel or powder-coated steel perforated sheets serve balcony guards, stair balustrade inserts and perimeter barrier panels.

Furniture & Ventilation Panels

Fine-gauge perforated blanks work for wine cabinet doors, retail display panels, speaker grilles and indoor air return vents.

Common Project Specifications

Aluminum Decorative Perforated Panel | 2.0mm Sheet, 6mm Round Hole

3003/5052 aluminum perforated panel with 2.0mm thickness and 6mm round staggered holes features light weight and weather resistance, ideal for suspended ceilings, interior wall cladding and exterior sunshade screens, available as flat sheets or bent profiles per project drawings.

Specs

Material: 3003 / 5052 aluminum alloy

Sheet Thickness: 2.0mm

Hole Form: Round hole

Hole Diameter: 6mm

Standard Pitch: 10mm staggered layout

Blank Sizes: 1220×2440mm, 1500×3000mm

Surface Finish: Anodizing, powder coating or PVDF coating as project required

Note: Exterior usage requires validation of mounting structure and coating durability grade

Applications

Indoor ceiling panels, decorative wall cladding, building sunshade screens, balcony decorative panels, exterior facade cladding

Stainless Steel Perforated Decorative Sheet | 1.5mm Sheet, 5mm Round Hole

1.5mm thick 304 stainless steel perforated sheet with 5mm round staggered holes delivers smooth brushed metallic texture, widely used for elevator interior cladding, cabinet doors, accent walls and decorative ventilation grilles, primarily supplied for indoor decoration.

Specs

Material: Grade 304 stainless steel

Sheet Thickness: 1.5mm

Hole Form: Round hole

Hole Diameter: 5mm

Standard Pitch: 8mm staggered layout

Blank Sizes: 1000×2000mm, 1220×2440mm

Surface Finish: Brushed finish, polished or raw mill stainless

Edge Options: Raw sheared edge, folded edge, fully framed panels

Applications

Elevator inner decorative panels, custom cabinet doors, interior feature walls, ventilation grille covers, retail display boards

Galvanized Steel Perforated Sheet | 1.0mm Sheet, 3mm Round Hole

1.0mm pre-galvanized perforated sheet with tiny 3mm round holes offers cost-effective light-duty decorative solutions for light fixtures, partition inserts and air circulation panels, finished either with original galvanized coating or post-fabrication powder coating.

Specs

Material: Hot-dipped galvanized steel sheet

Sheet Thickness: 1.0mm

Hole Form: Round hole

Hole Diameter: 3mm

Standard Pitch: 5mm staggered layout

Blank Sizes: 1000×2000mm, 1220×2440mm

Surface Finish: As-galvanized or custom powder coating

Note: Cut raw edges need supplementary touch-up coating if deployed outdoors

Applications

Indoor ventilation panels, decorative cabinet inserts, retail display racks, lamp guard covers, lightweight room partition panels

Aluminum Slotted Perforated Panel | 2.5mm Sheet, 10×30mm Rectangular Slot

2.5mm thick aluminum slotted perforated panel with elongated 10×30mm slots creates unique linear visual effects, applicable to building facades, stair balustrades, suspended ceilings and balcony decorative screens, all finished panel dimensions produced against construction drawings.

Specs

Material: 3003 / 5052 aluminum alloy

Sheet Thickness: 2.5mm

Hole Form: Rectangular slotted hole

Slot Dimension: 10mm × 30mm

Pitch Layout: Customized according to design drawing

Panel Sizes: 1220×2440mm, 1500×3000mm, custom cut sizes supported

Surface Finish: Anodized, powder coated or PVDF exterior coating

Edge Treatment: Folded hemmed edge, pre-drilled mounting holes, welded frames per drawing

Applications

Building exterior facade screens, outdoor sunshade panels, stair balustrade infill, balcony decorative screens, commercial suspended ceiling decoration

Carbon Steel Perforated Decorative Sheet | 3.0mm Sheet, 20mm Round Hole

Heavy-duty 3.0mm carbon steel perforated sheet with large 20mm round holes possesses superior structural rigidity, designed for heavy-load decorative railing infill, safety guard panels and large architectural screens, normally finished with full powder coating after cutting and forming.

Specs

Material: Mild carbon steel sheet

Sheet Thickness: 3.0mm

Hole Form: Round hole

Hole Diameter: 20mm

Standard Pitch: 30mm staggered layout

Blank Sizes: 1220×2440mm, 1500×3000mm

Surface Finish: Spray paint or powder coating post fabrication

Note: Frame structure and fixing fastener layout need confirmation for railing and facade installation

Applications

Stair & balcony railing infill panels, equipment safety guard sheets, large outdoor decorative screens, industrial equipment panels, commercial architectural decoration
