Woven Decorative Wire Mesh

Woven Decorative Wire Mesh is fabricated from stainless steel wire, flat metal strips, steel cables or crimped wires for architectural and interior decoration. It serves as room dividers, decorative wall sheets, ceiling drapes, elevator cladding, cabinet inserts and railing infill panels. Mesh density and opening dimensions follow architectural design drawings. Grade 304 stainless steel is the standard option for indoor projects, while 316 stainless steel is selected for humid or coastal environments. Antique brass, bronze, copper, black and gold color coatings are available to match diverse interior styles. This decorative mesh can be delivered in rolls, loose cut panels or pre-framed finished panels.

Specifications

Material: 304 / 316 stainless steel, brass wire, copper wire, aluminum wire, galvanized steel wire

Wire Category: Round wire, flat metal strip, crimped wire, steel cable, solid metal rod

Weaving Styles: Plain weave, crimped weave, flat wire weave, cable-rod weave, custom architectural weaves

Round Wire Diameter: 0.8mm, 1.0mm, 1.2mm, 1.5mm, 2.0mm, 2.5mm, 3.0mm

Flat Wire Dimensions: 1.5×0.8mm, 2.0×1.0mm, 3.0×1.5mm, 4.0×2.0mm

Steel Cable Diameter: 1.5mm, 2.0mm, 2.5mm, 3.0mm

Solid Rod Diameter: 2.0mm, 3.0mm, 4.0mm, 5.0mm

Mesh Opening: 3mm–80mm, determined by wire gauge and weaving pattern

Standard Roll Width: 1.0m, 1.22m, 1.5m, 2.0m

Standard Roll Length: 10m, 15m, 20m, 30m, adjusted by mesh weight and packing limits

Standard Panel Sizes: 1000×2000mm, 1220×2440mm, 1500×3000mm, custom cut sizes supported

Surface Finishes: Natural stainless steel, brushed finish, antique brass, bronze, copper, black coating, gold coating

Edge Processing: Raw cut edge, folded edge, welded frame, clamp frame, U-channel border

Mounting Solutions: Top hanging rail, bottom counterweight bar, side clamps, tension bars, U-channel frames, welded border frames

Application

Interior Room Partitions

Fit hotels, restaurants, offices, exhibition halls and retail stores, creating semi-transparent metal screens to separate spaces without full visual blockage.

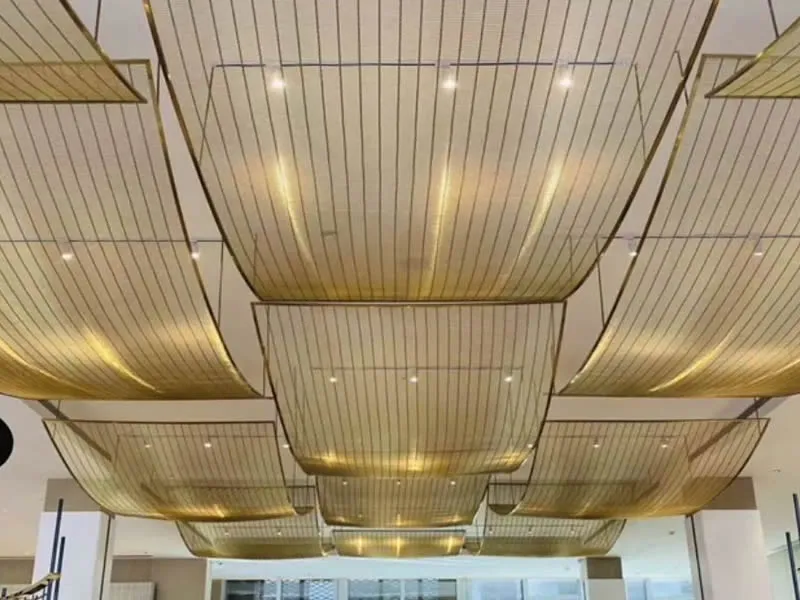

Wall & Ceiling Decoration

Suitable for lobby feature walls, elevator inner cladding, corridor suspended ceilings and reception backdrop panels.

Cabinet & Furniture Decorative Inserts

Fine woven mesh works for wine cabinet doors, display shelves and decorative inserts for custom furniture.

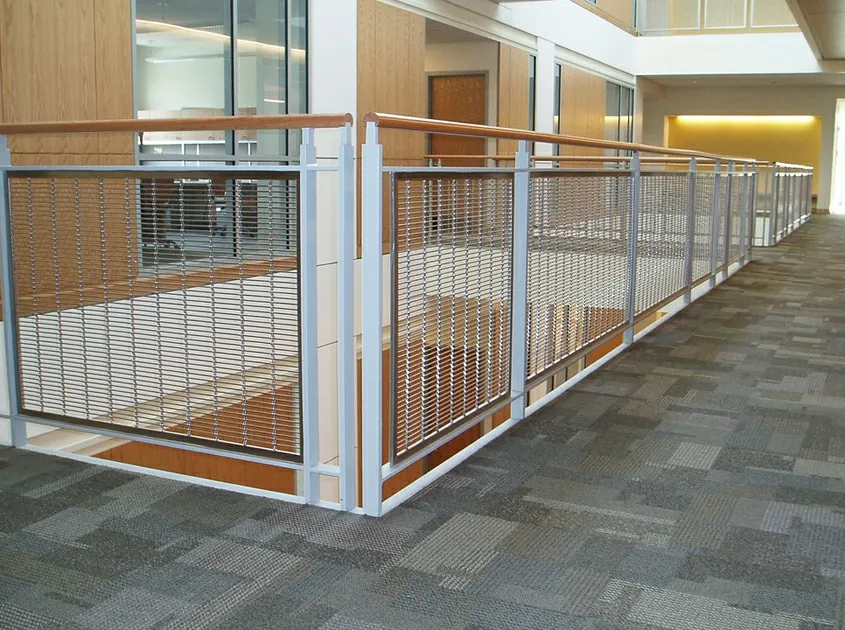

Railing & Exterior Facade Infill

Heavy gauge stainless woven mesh can act as stair railing panels or outdoor decorative screens; frame structure and wind load parameters need confirmation before production.

Common Project Specifications

Plain Woven Stainless Decorative Mesh | 1.2mm Round Wire, 10mm Opening

304 stainless steel plain woven mesh with 1.2mm wire and 10mm openings features neat uniform weaving texture, ideal for cabinet inserts, decorative wall sheets and small indoor divider screens, supplied as cut sheets ready for frame assembly.

Specs

Material: 304 stainless steel

Round Wire Diameter: 1.2mm

Mesh Opening: 10mm

Weave Type: Plain weave

Standard Panel Size: 1000×2000mm, 1220×2440mm

Surface Finish: Raw stainless steel, custom color coating on request

Edge Option: Raw cut edge or finished framed edge

Applications

Wine cabinet doors, retail display panels, lightweight indoor partitions, interior accent wall panels

Crimped Decorative Wire Mesh | 2.0mm Wire, 25mm Opening

2.0mm crimped stainless mesh with 25mm wide openings owns stronger structural stability, commonly used for stair railing infill, full-height room dividers and wall cladding. Final panel dimensions must align with frame construction drawings.

Specs

Material: 304 / 316 stainless steel

Wire Diameter: 2.0mm

Mesh Opening: 25mm

Weave Type: Crimped weave

Standard Panel Size: 1220×2440mm, 1500×3000mm, custom cut sizes available

Surface Finish: Natural stainless steel, black coating, bronze tone or customized color

Note: Frame structure and fixing solutions need verification if deployed outdoors

Applications

Staircase railing panels, full-height room dividers, interior wall cladding, commercial decorative screens

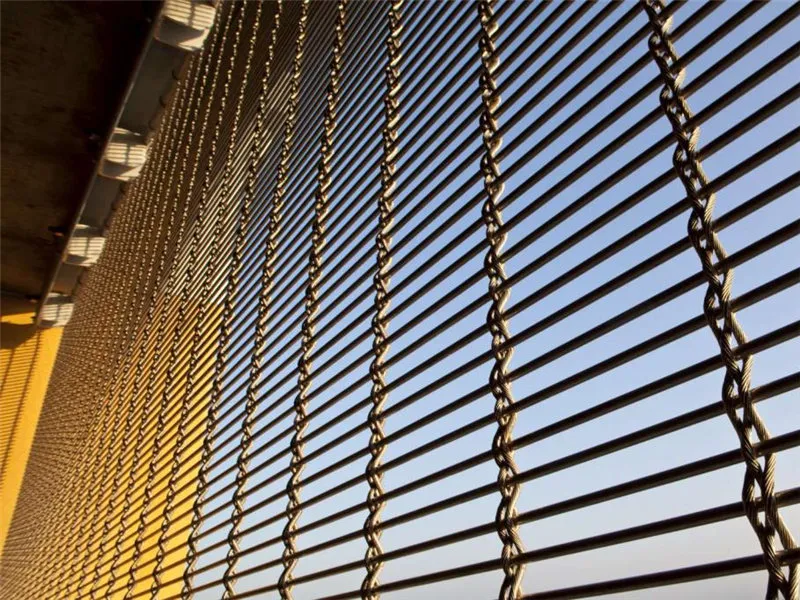

Cable-Rod Hanging Decor Mesh | 2.0mm Cable, 3.0mm Solid Rod

Cable-rod decorative mesh weaves flexible stainless steel cables with rigid solid rods, widely adopted for suspended ceiling drapes and large lobby hanging partition curtains, available in long rolls for continuous hanging layouts.

Specs

Material: 304 stainless steel

Cable Diameter: 2.0mm

Rod Diameter: 3.0mm

Cable Pitch: 20mm–50mm

Rod Pitch: 5mm–20mm

Standard Roll Width: 1.0m, 1.5m, 2.0m

Roll Length: 10m–30m based on mesh weight

Mounting System: Top hanging rail, bottom counterweight bar, side tension fixing set

Applications

Lobby hanging mesh curtains, suspended ceiling decorations, large commercial space partitions, decorative room divider screens

Flat Strip Woven Architectural Mesh | 3.0×1.5mm Flat Wire

Flat wire woven mesh uses wide stainless steel strips to deliver a solid metallic visual effect, perfect for elevator inner cladding, reception counter facades and high-end furniture decorations, produced per customized panel sizes and coating demands.

Specs

Material: 304 stainless steel

Flat Wire Size: 3.0mm × 1.5mm

Cross Supporting Wire: 1.5–2.0mm round wire, adjusted by weave pattern

Mesh Opening: 6mm–30mm

Standard Panel Size: 1000×2000mm, 1220×2440mm

Surface Finish: Brushed stainless, bronze coating, black finish, gold plating

Edge Treatment: Raw cut edge, folded edge, fully welded frame

Applications

Elevator interior cladding, lobby feature walls, custom furniture inserts, reception front desk panels, high-end interior metal screens

Bronze Tone Decorative Woven Mesh | 1.5mm Wire, 15mm Opening

Bronze colored stainless woven mesh provides warm vintage metallic tones for high-end interior projects. 1.5mm wire with 15mm openings suits decorative partitions, cabinet panels and accent walls, mainly recommended for indoor installation.

Specs

Base Material: 304 stainless steel

Wire Diameter: 1.5mm

Mesh Opening: 15mm

Weave Type: Plain weave or crimped weave as requested

Standard Panel Size: 1000×2000mm, 1220×2440mm, custom cut sheets

Surface Finish: Bronze coating, antique brass finish

Note: Confirm coating grade and anti-corrosion standards if used in outdoor environments

Applications

Restaurant space dividers, hotel decorative wall panels, wine cabinet inserts, retail boutique interiors, vintage-style decorative screens
