Razor Wire Fence

Razor wire, also known as concertina razor wire, is widely used for high-security perimeter protection. It consists of high tensile core wire and punched razor tape with sharp blades. Common styles include single coil, crossed concertina coil, flat wrap and welded razor mesh. BTO series blades are standard for general security applications, while CBT series features larger blades for enhanced protection. Please confirm coil size, blade type, clips and installation style before placing orders.

Types

Specifications

Material: Hot dipped galvanized steel strip and galvanized core wire. Stainless steel material is available for coastal or heavily corrosive environments.

Blade Type: BTO-10, BTO-12, BTO-18, BTO-22, BTO-28, BTO-30, CBT-60, CBT-65

Blade Thickness: 0.5mm ± 0.05mm for all BTO types; 0.6mm ± 0.05mm for CBT-60 and CBT-65

Core Wire Diameter: 2.5mm ± 0.1mm for regular coils

Blade Dimension & Spacing

• BTO series: Blade length 10mm to 30mm, blade spacing 25mm to 45mm
• CBT series: Blade length 60mm / 65mm, blade spacing 100mm

Coil Outer Diameter: 450mm, 500mm, 600mm, 700mm, 800mm, 900mm, 960mm

Loops per Coil: 33 loops or 56 loops based on coil diameter and style

Standard Extended Length: Single coil: 7m to 15m; Crossed concertina coil: 8m to 16m

Clips: Crossed type coils use 3 clips or 5 clips per group. More clips help maintain tight shape after expansion.

Installation Style: Single coil, crossed concertina coil, flat wrap, straight line, welded razor mesh panel

Surface Finish: Hot dipped galvanized as standard; PVC coated upon request

Packing: Compressed coils packed with woven bags, cartons or wooden pallets. Wear gloves and professional tools during handling and installation.

Application

Fence Top Security

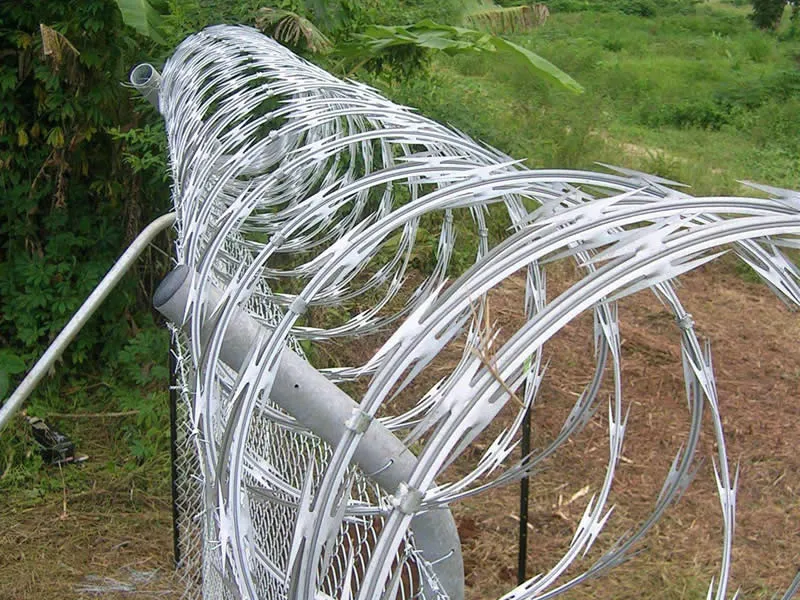

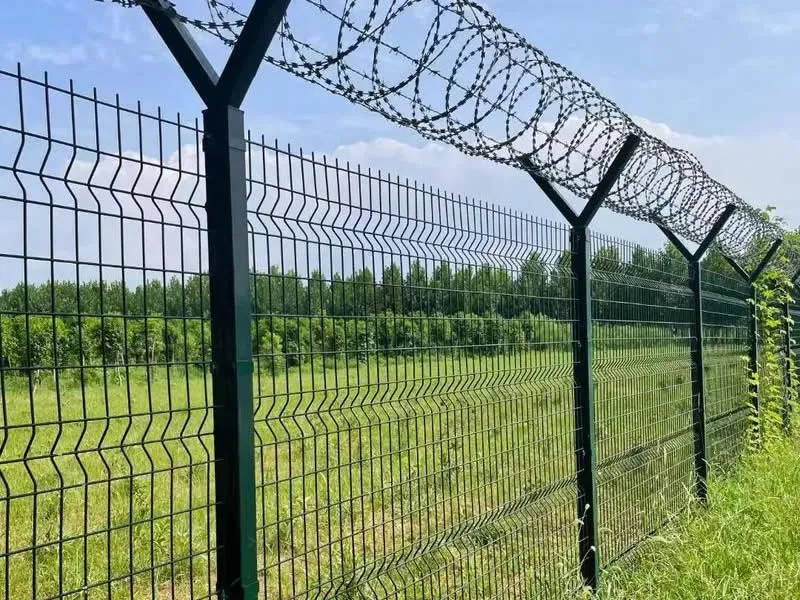

Installed on top of chain link fence, welded mesh fence and palisade fence. BTO-22 crossed concertina wire is the most popular option for regular fence top protection.

Wall & Perimeter Protection

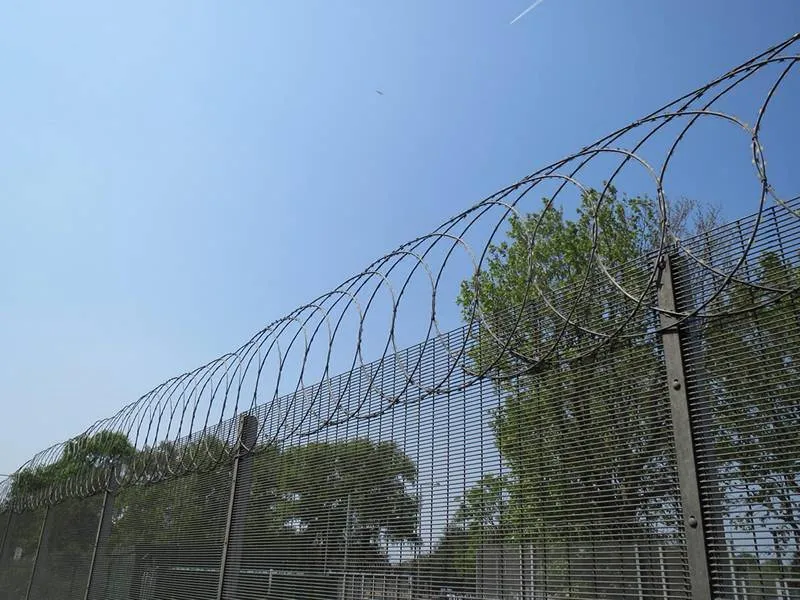

Flat wrap razor wire fits closely on mesh panels and brick walls. It is ideal for areas where round concertina coils cannot be installed.

Industrial & Restricted Zones

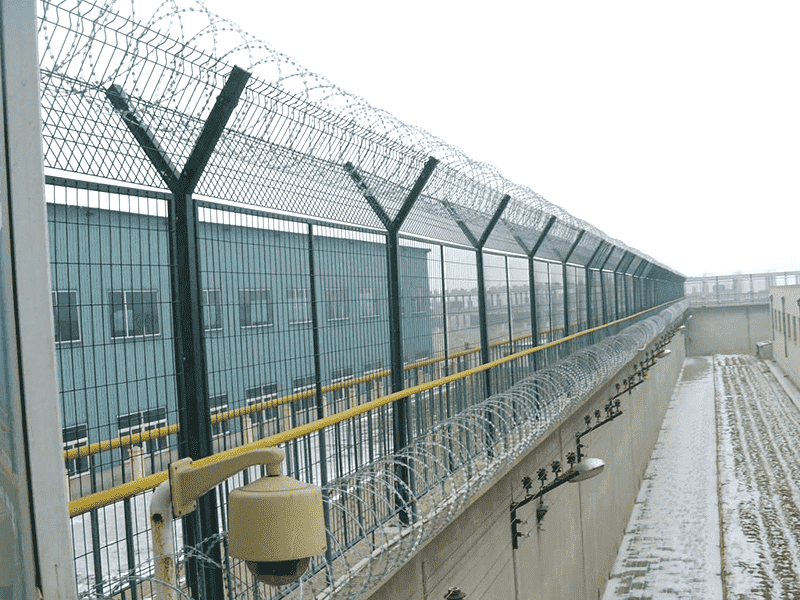

Concertina razor wire is widely deployed around factories, storage yards, mines, power stations and prisons.

Temporary Barrier

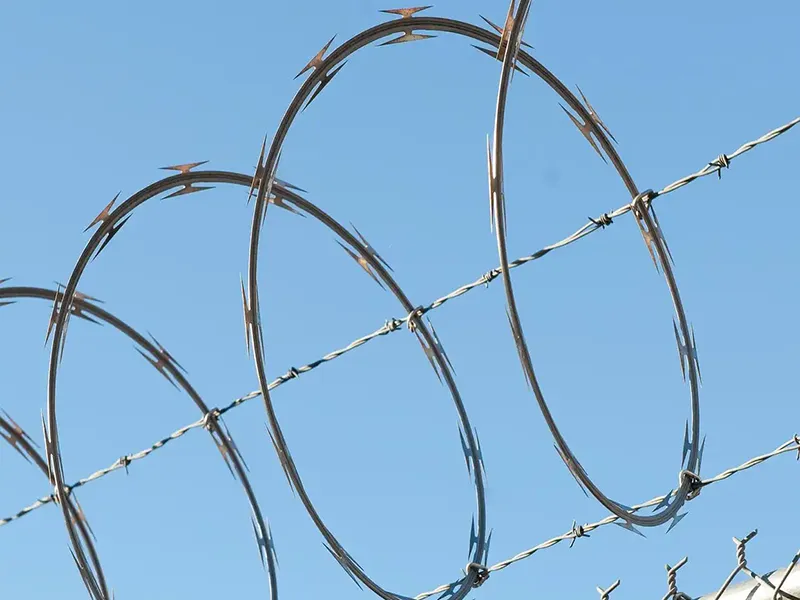

Single coil razor wire is easy to deploy for temporary boundary marking and short-term site isolation.

Stock Product Specifications

BTO-22 Crossed Razor Wire, 450mm OD, 56 Loops

BTO-22 crossed concertina razor wire with 450mm outer diameter. Equipped with 56 loops and 3 clips. Extended length reaches 8m to 9m per coil. Suitable for fence top and wall top security.

Technical Specifications

Blade Type: BTO-22

Coil Outer Diameter: 450mm

Loops: 56

Extended Length: 8m – 9m

Clips: 3 pieces per group

Blade Thickness: 0.5mm ± 0.05mm

Core Wire Diameter: 2.5mm ± 0.1mm

Blade Length: 22mm ± 1mm

Blade Spacing: 34mm ± 1mm

Surface Finish: Hot dipped galvanized

Applications : Top mounting for chain link fence and welded mesh fence; boundary wall security.

BTO-22 Crossed Concertina Wire, 600mm OD, 56 Loops

600mm diameter BTO-22 crossed razor wire, available with 3 clips or 5 clips. Larger coil size provides wider coverage for perimeter fencing.

Technical Specifications

Blade Type: BTO-22

Coil Outer Diameter: 600mm

Loops: 56

Extended Length: 10m – 11m (3 clips); 8m – 10m (5 clips)

Blade Thickness: 0.5mm ± 0.05mm

Core Wire Diameter: 2.5mm ± 0.1mm

Blade Width: 15mm ± 1mm

Surface Finish: Hot dipped galvanized

Packing: Compressed coil in woven bag or wooden pallet

Applications : Industrial perimeter fence; restricted yard boundary; fence top installation on steel posts

Note: Coils with 5 clips stay tighter after expansion with shorter extended length.

CBT-60 Single Coil Razor Wire, 500mm OD, 56 Loops

CBT-60 single coil razor wire with large-size blades. No clips required for installation. Applied for wall top and continuous perimeter lines.

Technical Specifications

Blade Type: CBT-60

Coil Outer Diameter: 500mm

Loops: 56

Extended Length: 12m – 13m

Installation: Single coil without clips

Blade Thickness: 0.6mm ± 0.05mm

Core Wire Diameter: 2.5mm ± 0.1mm

Blade Length: 60mm ± 2mm

Blade Spacing: 100mm ± 2mm

Surface Finish: Hot dipped galvanized

Applications : Wall top security; continuous single coil perimeter lines; boundaries for mines and storage areas.

CBT-65 Single Coil Razor Wire, 960mm OD, 56 Loops

CBT-65 single coil razor wire with 960mm outer diameter and 56 loops. Designed for large-scale perimeter barriers and ground mounted security lines.

Technical Specifications

Blade Type: CBT-65

Coil Outer Diameter: 960mm

Loops: 56

Extended Length: 14m – 15m

Installation: Single coil layout

Blade Thickness: 0.6mm ± 0.05mm

Core Wire Diameter: 2.5mm ± 0.1mm

Blade Length: 65mm ± 2mm

Blade Spacing: 100mm ± 2mm

Applications : Ground barrier lines; high security perimeter sections; large boundary protection projects

Note: Extra space is required for storage and installation due to large coil size.

Flat Wrap Razor Wire, BTO-30, 700mm Original Coil

Flat wrap razor wire is pressed into flat shape to attach closely on fences and walls. BTO-30 model is selected for flat security layers on narrow spaces.

Technical Specifications

Blade Type: BTO-30

Original Coil Diameter before flattening: 700mm

Blade Thickness: 0.5mm ± 0.05mm

Core Wire Diameter: 2.5mm

Blade Length: 30mm

Blade Width: 18mm

Blade Spacing: 45mm ± 1mm

Installation Style: Flat wrap layout

Fixing Method: Tied or clipped on welded mesh fence and brick wall

Applications : Upgrading existing welded fence; protection for brick wall surface and wall top; narrow perimeter sections.

Welded Razor Mesh Panel, BTO-22

Welded razor mesh is made by welding razor tape into rigid flat panels. Used as fixed security screens for gates, windows and fence panels.

Technical Specifications

Blade Type: BTO-22, customized blade type acceptable

Structure: Welded razor mesh panel

Blade Thickness: 0.5mm ± 0.05mm

Core Wire Diameter: 2.5mm ± 0.1mm

Mesh Opening & Panel Size: Customized as per drawings

Surface Finish: Hot dipped galvanized or stainless steel

Installation: Fixed on metal frames, posts or walls

Applications : Security fence panels; protective screens for doors and windows; controlled access areas.

Note: Confirm panel dimension and mounting holes with technical drawings before production.
