Noise Barrier

Noise Barrier is an outdoor acoustic fence system for highways, railways, residential boundaries, factories, bridges and construction perimeters. It consists of perforated metal acoustic panels, internal sound‑absorbing material and steel H‑posts. The perforated side faces the noise source; the solid back sheet blocks airborne sound. Common panel thicknesses are 80 mm, 100 mm and 120 mm. Standard panel modules are 500 mm high, in lengths of 2000 mm or 2500 mm. Typical overall barrier heights range from 2 m to 5 m, designed according to site layout, noise source height and project requirements.

Specifications

Product Names: Noise barrier, sound barrier, highway noise barrier, railway acoustic barrier.

Panel Material: Mild carbon steel, aluminum or stainless steel (mild steel and aluminum are standard for road and railway projects).

Panel Dimensions: 500 mm (H) × 2000 mm (L), 500 mm (H) × 2500 mm (L).

Overall Barrier Height: 2 m – 5 m (per noise assessment and site drawing).

Panel Thickness: 80 mm, 100 mm, 120 mm.

Metal Sheet Thickness: 0.7 mm – 1.2 mm.

H‑Post Size: 100 × 100 mm, 125 × 125 mm, 150 × 150 mm steel H‑section.

Panel Construction: Perforated front face, acoustic infill, solid back face.

Perforated Side: Faces noise source (traffic, railway, machinery).

Acoustic Infill: Hydrophobic rock wool or centrifugal glass wool.

Noise Reduction Coefficient (NRC): ≥ 0.70; typical 0.80 – 0.95.

Sound Insulation (Rw): ≥ 25 dB; standard ≥ 29 dB.

Surface Treatment: Hot‑dip galvanized + outdoor powder coating (carbon steel); powder coating (aluminum).

Colors: Green, grey, blue, white, black, or custom RAL.

Installation: Panels inserted between H‑posts, fixed with bolts, sealing strips and fasteners.

Application

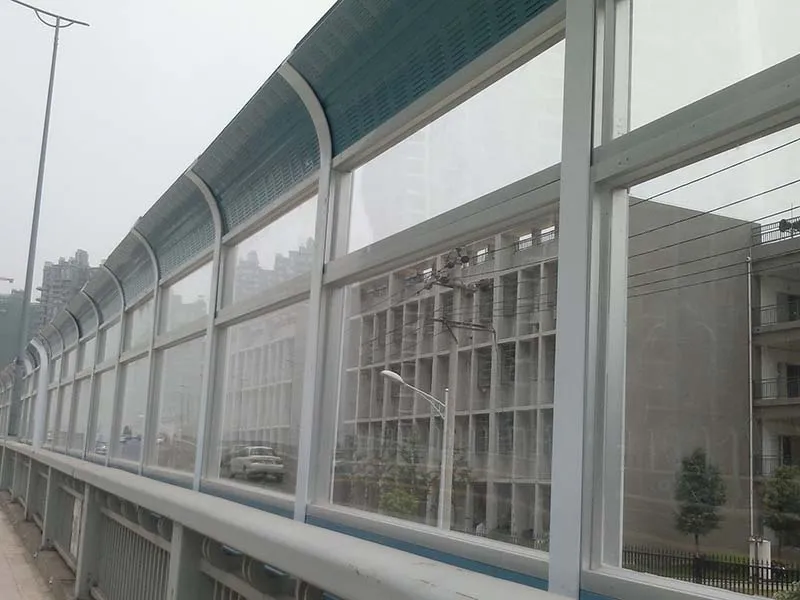

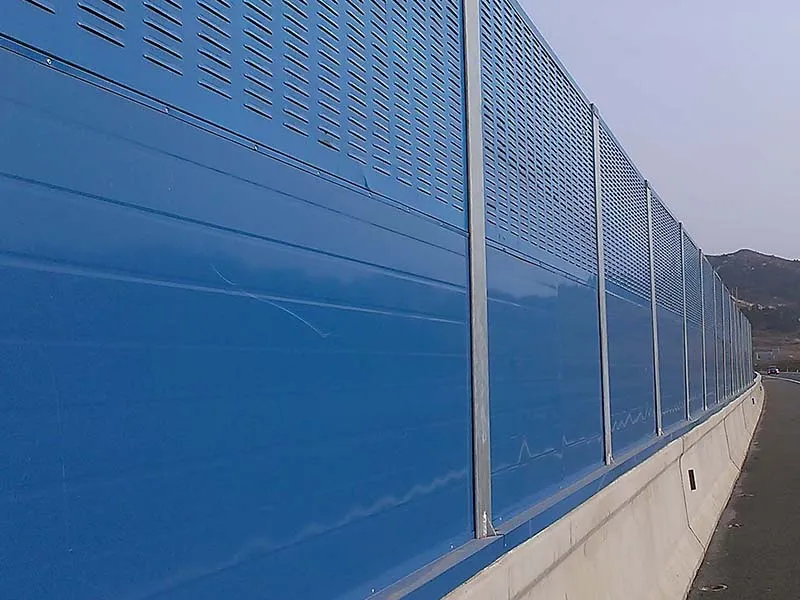

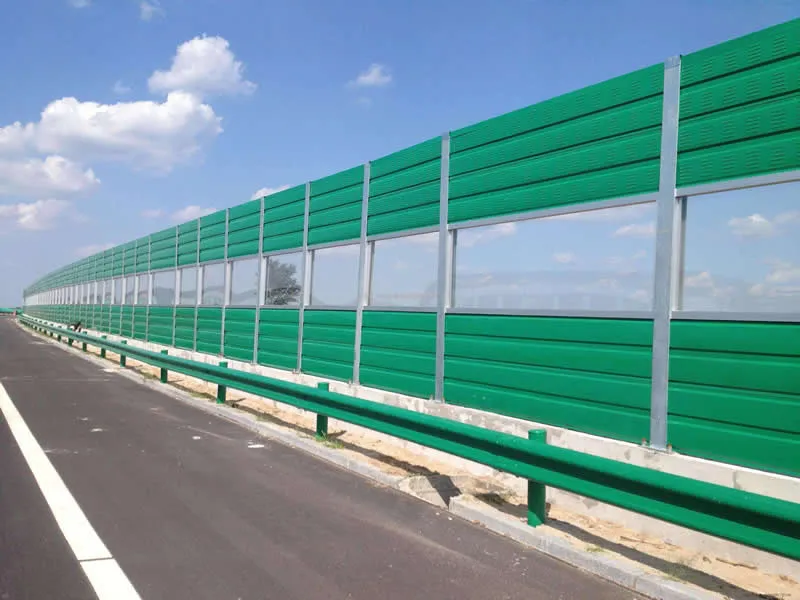

Highway & Urban Road Noise Control

Installed along highways, expressways, viaducts and urban arterial roads. 100 mm thick panels are standard for roadside sections.

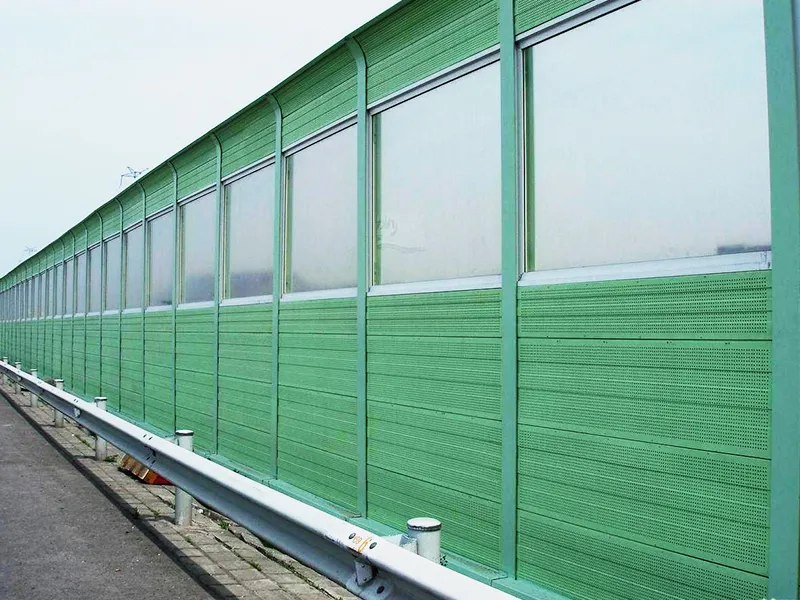

Railway & Metro Sound Barrier

Used beside railway tracks, metro lines, stations and depots. H‑post size matches height and wind load.

Residential & Community Boundary

Placed between roads and residential areas, schools or hospitals. Color and height comply with local planning requirements.

Factory & Equipment Noise Reduction

Encloses generators, compressors, cooling towers and workshop boundaries. Source location and required height to be confirmed before quotation.

Stock Product Specifications

Metal Noise Barrier Panel – 500 mm × 2000 mm, 80 mm Thick

Standard 80 mm thick acoustic panel for road, railway and industrial noise control. Perforated front, sound‑absorbing core, solid back.

Technical Specifications

• Panel Size: 500 mm (H) × 2000 mm (L)
• Panel Thickness: 80 mm
• Metal Sheet: 0.7 mm – 1.0 mm
• Material: Mild carbon steel or aluminum
• Structure: Perforated front, acoustic infill, solid back
• NRC: ≥ 0.80
• Rw: ≥ 29 dB
• Finish: Galvanized + powder coated
• Color: Green, grey, blue

Applications

Urban roads, community boundaries, construction sites.

Highway Noise Barrier Panel – 500 mm × 2500 mm, 100 mm Thick

100 mm thick highway acoustic panel, 2500 mm length, standard modular unit for roadside noise walls.

Technical Specifications

• Panel Size: 500 mm (H) × 2500 mm (L)
• Panel Thickness: 100 mm
• Metal Sheet: 0.8 mm – 1.2 mm
• Material: Mild carbon steel or aluminum
• Front: Perforated (toward traffic)
• Back: Solid
• Rw: ≥ 29 dB
• H‑Post: 125 × 125 mm
• Finish: Galvanized + powder coated

Applications

Highways, expressways, viaducts, residential roadside frontages.

Note: For bridge installation, verify wind load and dead load.

Railway Sound Barrier – 500 mm × 2000 mm, 120 mm Thick

Heavy‑duty 120 mm thick acoustic panel for railway lines, metro sections and high‑noise industrial boundaries.

Technical Specifications

• Panel Size: 500 mm (H) × 2000 mm (L)
• Panel Thickness: 120 mm
• Metal Sheet: 1.0 mm – 1.2 mm
• Material: Aluminum or mild carbon steel
• Infill: Hydrophobic rock wool / glass wool
• Face: Perforated toward rail noise
• Back: Solid
• H‑Post: 125 × 125 mm / 150 × 150 mm
• Color: Grey, green, blue, custom RAL

Applications

Railway lines, metro depots, heavy machinery zones, factory perimeters.

Residential Noise Barrier System – 3 m Height, 100 mm Panel

Complete 3 m high residential acoustic barrier system using 500 mm modular panels and steel H‑posts.

Technical Specifications

• System Height: 3 m
• Panel Module: 500 mm (H)
• Panel Thickness: 100 mm
• Panel Length: 2000 mm / 2500 mm
• H‑Post: 125 × 125 mm
• Finish: Galvanized + outdoor powder coated
• NRC: ≥ 0.80
• Installation: Panels slotted into H‑posts with seals and bolts

Applications

Road‑residential boundaries, school perimeters, hospital setbacks, community noise walls.

Note: Final height subject to local noise impact assessment.

Industrial Noise Barrier – 5 m Height, 120 mm Acoustic Panel

Heavy‑duty 5 m high industrial barrier with 120 mm thick panels, for large equipment and factory perimeter noise control.

Technical Specifications

• System Height: 5 m
• Panel Size: 500 mm (H) × 2000 mm / 2500 mm (L)
• Panel Thickness: 120 mm
• Metal Sheet: 1.0 mm – 1.2 mm
• H‑Post: 150 × 150 mm
• Structure: Perforated source side, acoustic core, solid back
• Finish: Galvanized + powder coated
• Color: Grey, green, custom RAL

Applications

Generator yards, compressor stations, cooling tower zones, factory boundary walls.

Note: Provide equipment layout, barrier alignment and wind load data before quotation.
