Welded Wire Mesh Panel

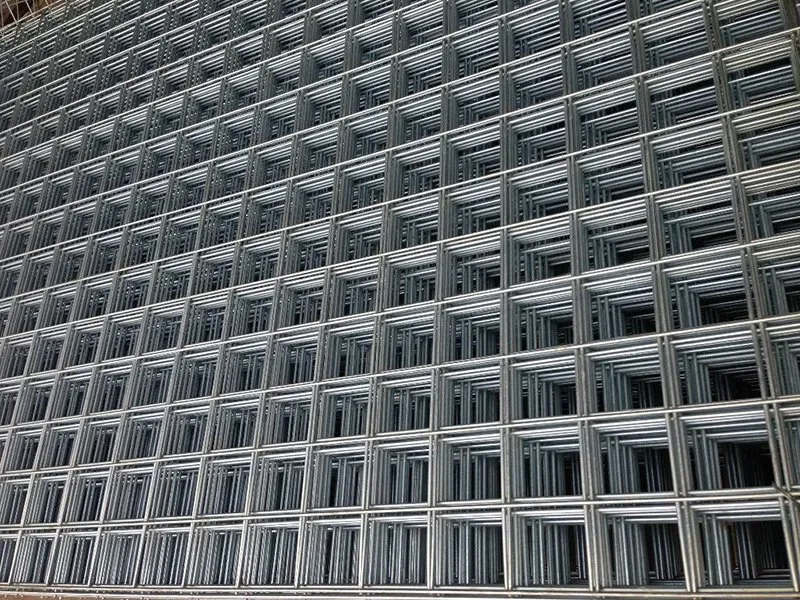

Welded wire mesh panels are formed by electrically welding crossing wires at every joint, delivering rigid sheets that hold shape well during cutting and framing. Raw materials include mild steel, galvanized wire, 304/316 stainless steel and Al-Mg alloy.

Two production processes are available: weld then galvanize, or galvanize then weld. Standard finishes cover electro galvanized, hot-dipped galvanized, PVC spray and PVC dip coating; PVC coating thickness stays 0.5–1.0mm.

We supply inch and metric apertures: 1” to 8” square openings, corresponding to 25.4mm–203.2mm metric sizes. Wire diameters match openings: 2.0–3.2mm for 1” mesh, 2.0–4.5mm for 2” mesh, 2.0–6.0mm for 3”–8” mesh.

Standard panel widths range 0.914m–2.75m. 1800×3000mm is our most popular stock size, with custom lengths available. Flat sheets, cut blanks and pre-framed panels can be supplied, packed in strapped bundles or export wooden pallets.

It is widely used in construction reinforcement, agricultural cages, food processing racks, warehouse partitions and machine safety guards. Buyers need to confirm material, wire gauge, opening, panel size, surface finish and edge type when ordering.

Application

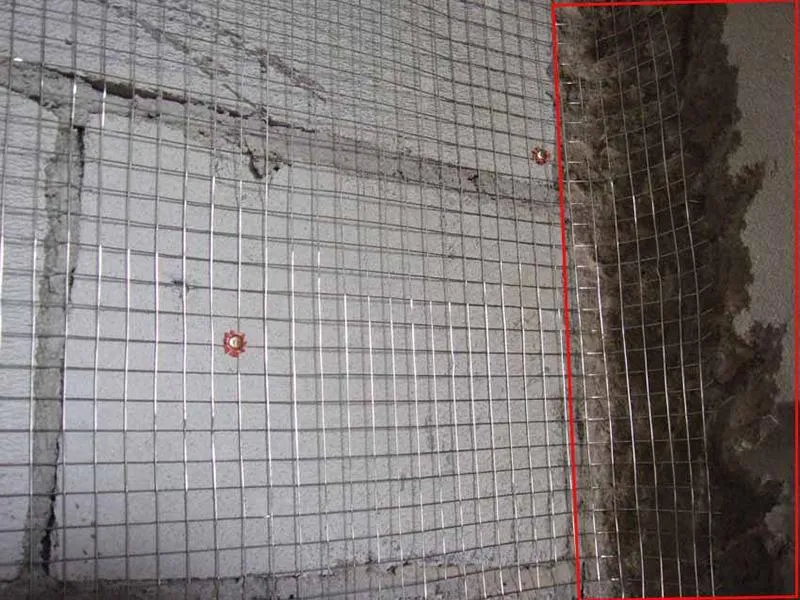

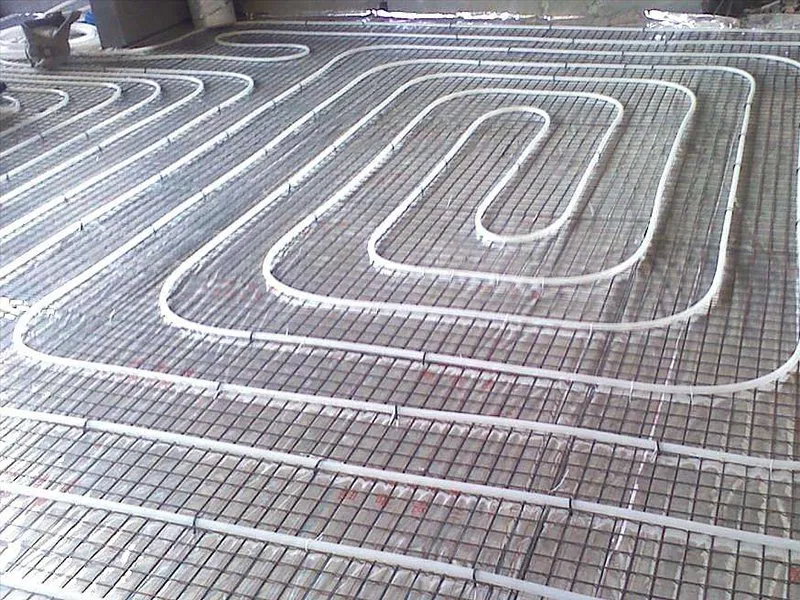

Construction: Concrete reinforcement mesh, temporary site partitions, ceiling support mesh.

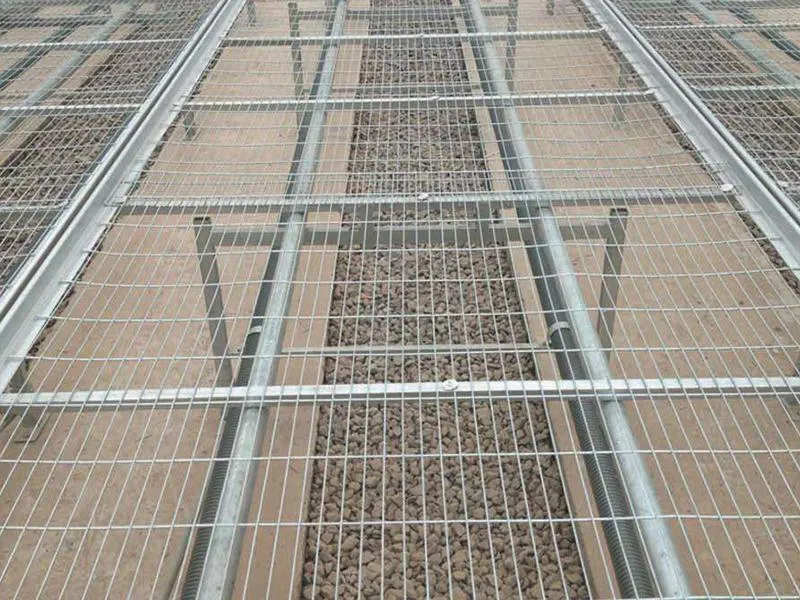

Agriculture: Hot-dip galvanized panels for poultry cages, livestock enclosures, greenhouse supports.

Food Industry: 304/316 stainless steel mesh for drying racks, storage trays and production fixtures.

Industrial Storage: Galvanized or PVC coated mesh for machine guards, warehouse divider screens.

Standard Stock Specifications

1800×3000mm, 75×150mm Rectangular Mesh

Brief Intro: Multi-purpose mesh for warehouses, farm barriers and machine guards, galvanized or PVC coated.

Specs

Panel Size: 1800×3000mm

Opening: 75×150mm

Wire Diameter: 3.0mm / 3.8mm / 4.0mm

Material: Mild steel / galvanized wire

Finish: Electro galvanized, hot-dipped galvanized, PVC coating

PVC Thickness: 0.5–1.0mm

Edge: Cut edge, overhang edge

Packing: Strapped bundle or wooden pallet

Application: Warehouse dividers, farm fence panels, safety cages

Galvanized Mesh, 2”×2”(50.8mm), 4.0mm Wire

Brief Intro: Hot-selling square mesh for garden fencing, animal cages and workshop partitions.

Specs

Opening: 2×2 inch / 50.8×50.8mm

Wire Diameter: 4.0mm

Width: 0.914–2.75m, length cut to demand

Material: Galvanized steel wire

Process: Weld after galvanizing / galvanize after welding

Finish: Electro galvanized, hot-dipped galvanized

Packing: Strapped bundles or pallets

Application: Fence infill, livestock cages, storage screens

Stainless Steel Mesh, 1”×1”(25.4mm), 2.5mm Wire

Brief Intro: Food-grade stainless mesh for drying racks and precision equipment guards; 304 is standard for food contact.

Specs

Opening: 1×1 inch / 25.4×25.4mm

Wire Diameter: 2.5mm

Width: 0.914–1.83m, custom length

Material: 304 / 316 stainless steel

Finish: Natural stainless surface

Edge: Cut, flush or framed edge

Processing: Cutting, bending, frame welding

Application: Food drying racks, processing trays, equipment covers

Note: Pick SS316 for salt or chemical corrosive environments

Hot-Dipped Galvanized Mesh, 4”×4”(101.6mm), 5.0mm Wire

Brief Intro: Heavy-duty anti-rust mesh for outdoor farm fences and construction temporary screens.

Specs

Opening: 4×4 inch / 101.6×101.6mm

Wire Diameter: 5.0mm

Width: 0.914–2.75m

Standard Length: 1800/2400/3000mm, custom sizes accepted

Material: Mild steel

Finish: Hot-dipped galvanized

Form: Flat mesh sheet

Packing: Steel strap bundle or pallet

Application: Farm boundary fences, outdoor livestock enclosures, construction screens

PVC Coated Mesh, 3”×3”(70.2mm), 4.0mm Base Wire

Brief Intro: Colored PVC mesh for garden fences and pet enclosures, green and black are mainstream colors.

Specs

Opening: 3×3 inch /70.2×70.2mm

Base Wire Diameter: 4.0mm

PVC Thickness: 0.5–1.0mm

Width: 0.914–2.75m

Material: Galvanized wire with PVC outer layer

Color: Green, black, grey, custom colors available

Edge: Cut edge, framed edge

Packing: Film wrapped wooden pallets

Application: Garden fence panels, yard partitions, pet cages

Note: Cut wire ends lose PVC coating; touch-up paint extends outdoor service life

Large Opening Mesh, 8”×8”(203.2mm), 6.0mm Wire

Brief Intro: Large-aperture thick wire mesh for frame infill and lightweight temporary barriers.

Specs

Opening: 8×8 inch / 203.2×203.2mm

Wire Diameter: 6.0mm

Width: 0.914–2.75m, custom length

Material: Mild steel / pre-galvanized wire

Finish: Raw black steel, galvanized, PVC coated on request

Form: Flat mesh panel

Packing: Strapped bundle or export pallet

Application: Metal frame infill, workshop separation screens, lightweight temporary fencing
