Welded Gabion Mesh

Welded gabion mesh consists of rigid welded wire panels, manufactured to assemble stone-filled baskets, landscape walls, retaining structures and erosion control units. We adopt hot-dip galvanized wire, Galfan wire and PVC-coated galvanized wire as raw materials.

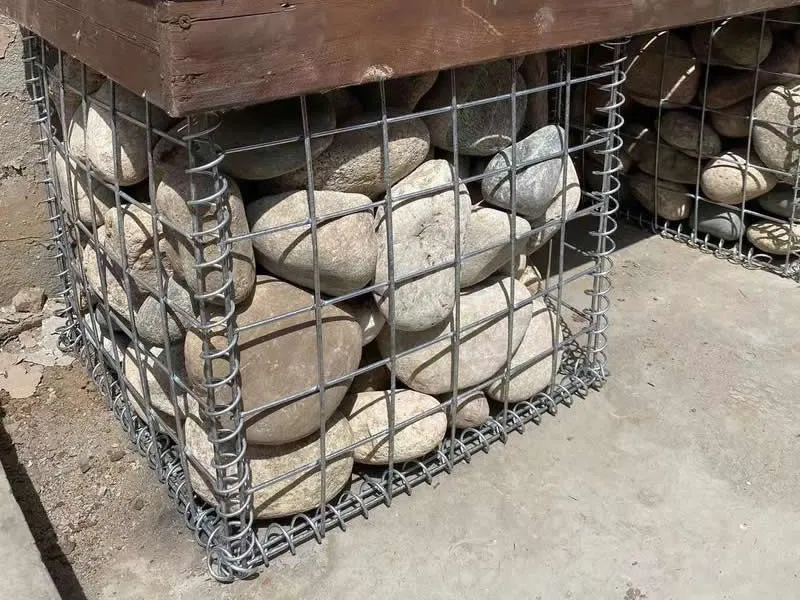

Baskets are assembled from flat welded panels using spiral binders, C-rings, clips or lacing wire. Internal stiffeners are fitted on exposed sides to prevent panel bulging after stone filling. Unlike twisted gabion mesh, welded gabions deliver flatter surfaces and standard box shapes, ideal for projects requiring tidy appearance, neat alignment and modular installation.

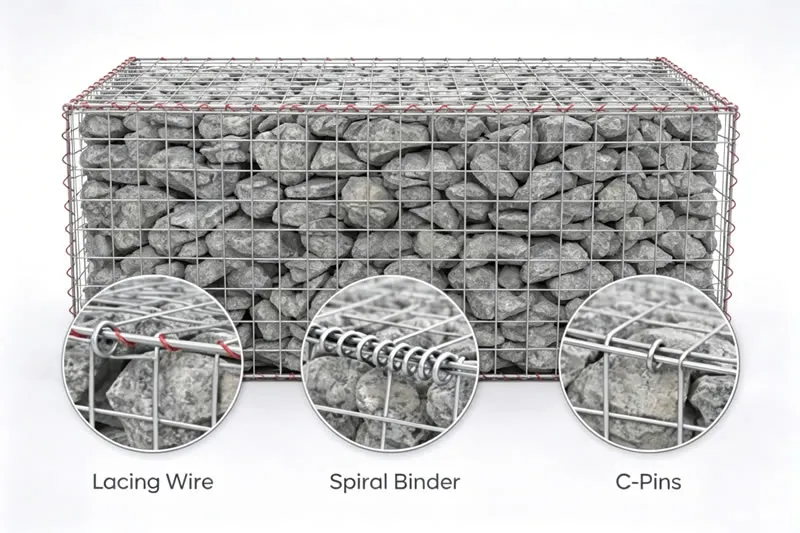

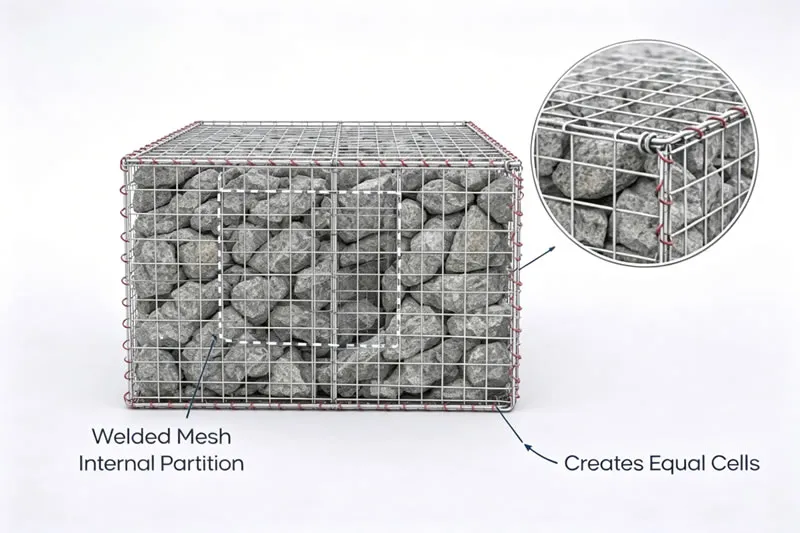

Components of a Welded Gabion Mesh

Specifications

• Material: Hot-dip galvanized steel wire, Galfan-coated steel wire, PVC-coated galvanized steel wire
• Wire Diameter: 3.0mm, 3.5mm, 4.0mm, 4.5mm, 5.0mm

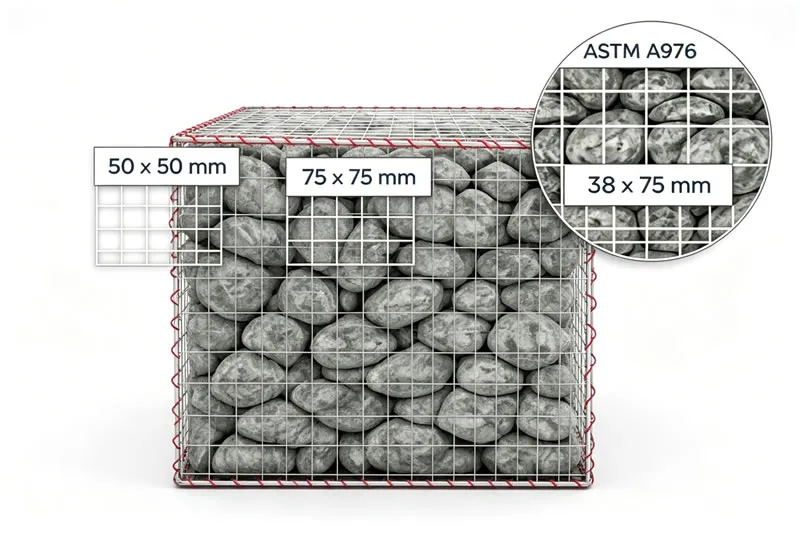

• Mesh Aperture: 50mm×50mm, 50mm×100mm, 75mm×75mm, 75mm×100mm, 100mm×100mm
• Basket Size: 0.5m×0.5m×0.5m, 1m×0.5m×0.5m, 1m×1m×1m, 2m×0.5m×0.5m, 2m×1m×1m, 3m×1m×1m
• Panel Form: Supplied as flat welded panels for on-site assembly; pre-assembled units available on request
• Fasteners: Spiral binders, C-rings, clips and tie wire, selected according to basket size and assembly method
• Stiffeners: Internal bracing wires or hook stiffeners for tall basket faces
• Surface Treatment: Post-weld hot-dip galvanized, pre-weld galvanized, Galfan coating, PVC coating over galvanized wire
• Corrosion Resistance: Standard galvanized for dry outdoor and landscape use; Galfan or PVC coating for wet soil, riverbanks and long-term exposure
• Filling Stone: Hard rock, crushed stone, cobblestone and decorative stone. Stone size must exceed mesh aperture
• Packing: Flat panels bundled on pallets; fasteners and stiffeners packed separately
• Installation Guidance: Confirm foundation, drainage, backfill and design requirements before building retaining walls

Application

Welded Gabion Basket – 1m × 1m × 1m, 50mm × 50mm Mesh

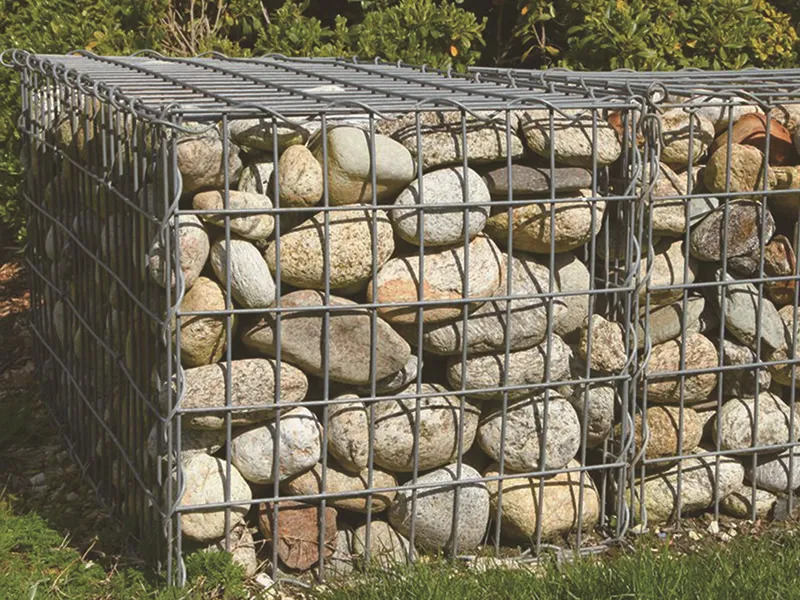

This 1m×1m×1m welded gabion basket features 50mm×50mm square mesh. It is delivered as flat panels with complete fasteners, suitable for garden walls, small retaining structures and decorative stone cages.

Technical Specifications

Basket Size: 1m × 1m × 1m

Mesh Aperture: 50mm × 50mm

Wire Diameter: 3.5mm / 4.0mm

Material: Hot-dip galvanized steel wire

Fasteners: Spiral binders or C-rings

Stiffeners: Hook stiffeners (optional)

Surface Finish: Galvanized

Packing: Flat packed panels with matching accessories

Applications

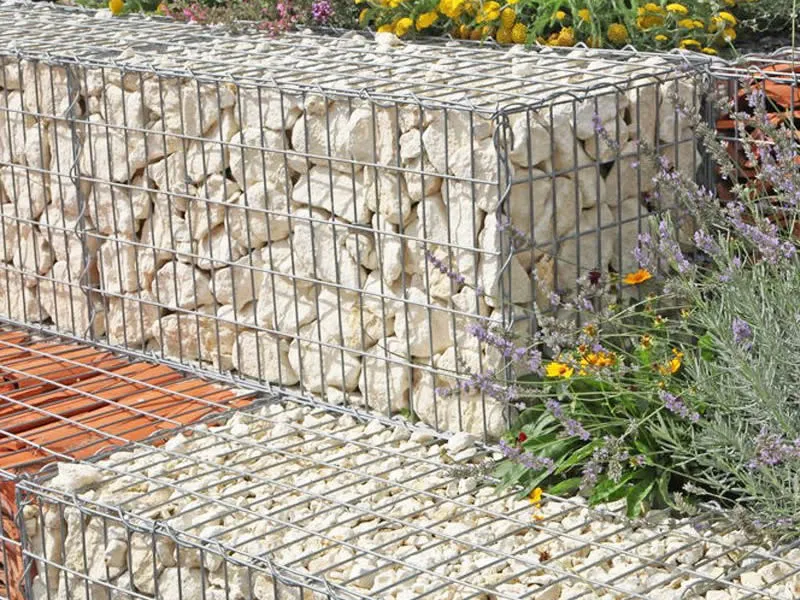

Garden gabion walls, decorative stone containers, small retaining and boundary structures.

Galfan Welded Gabion Basket – 2m × 1m × 1m, 50mm × 100mm Mesh

This 2m×1m×1m Galfan welded gabion basket comes with 50mm×100mm mesh. It offers excellent corrosion resistance for retaining walls, roadside edges and fully exposed outdoor areas, and works well with regular crushed stone.

Technical Specifications

Basket Size: 2m × 1m × 1m

Mesh Aperture: 50mm × 100mm

Wire Diameter: 4.0mm / 5.0mm

Material: Galfan-coated steel wire

Fasteners: Spiral wire, C-rings or clips

Bracing: Internal stiffeners recommended for front panels

Filling Stone: Larger than the mesh aperture

Packing: Panels bundled on pallets

Applications

Retaining wall construction, roadside protection, drainage channel side walls.

Note: Install internal stiffeners before filling tall exposed panels.

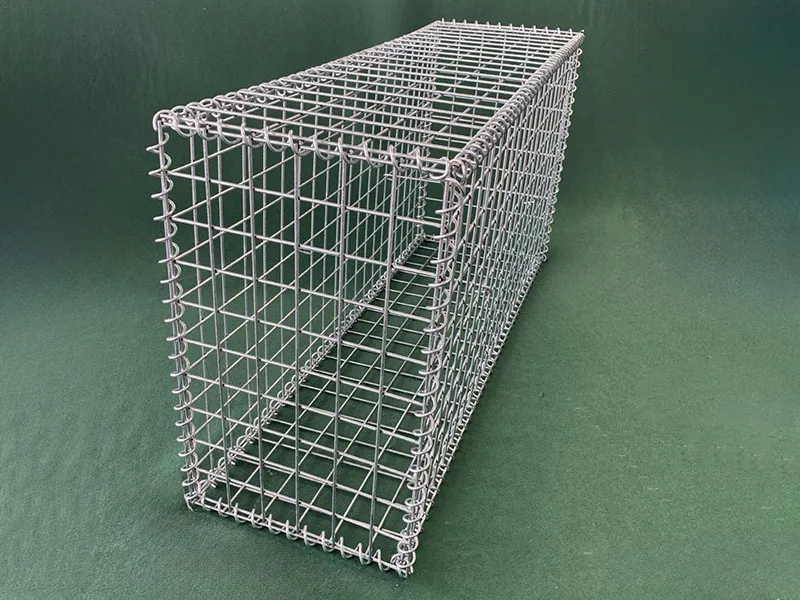

PVC Coated Welded Gabion Basket – 2m × 0.5m × 0.5m

This 2m×0.5m×0.5m welded gabion basket is coated with PVC over galvanized wire for enhanced anti-corrosion performance. It is widely used for garden edging, wetland areas and decorative landscape walls.

Technical Specifications

Basket Size: 2m × 0.5m × 0.5m

Mesh Aperture: 50mm × 50mm / 50mm × 100mm

Base Wire Diameter: 3.0mm–4.0mm (before coating)

Material: PVC-coated galvanized steel wire

Available Colors: Green, Grey, Black or custom colors

Fasteners: Spiral binders or clips

Product Form: Flat panels with separate accessories

Note: Prevent sharp stones from scratching the PVC coating during filling.

Applications

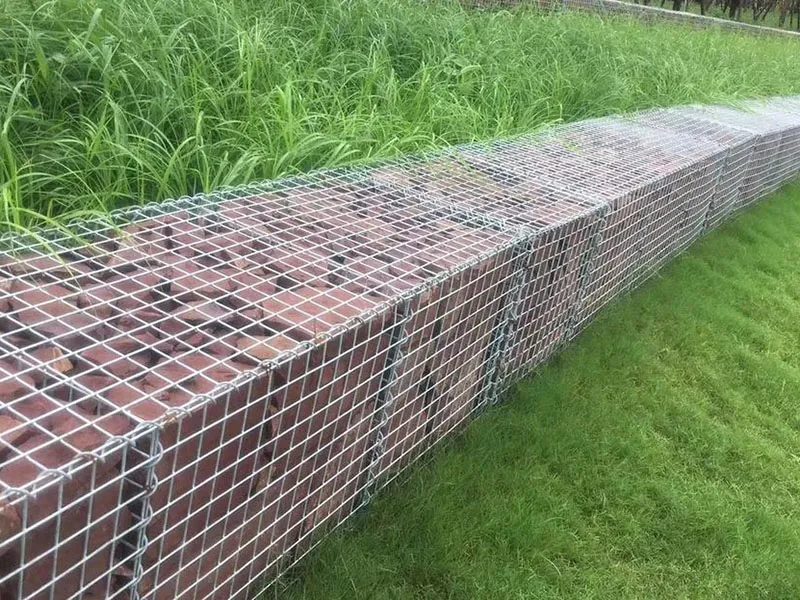

Landscape edging, pond-side walls, low decorative retaining barriers.

Heavy Duty Welded Gabion Basket – 3m × 1m × 1m, 75mm × 75mm Mesh

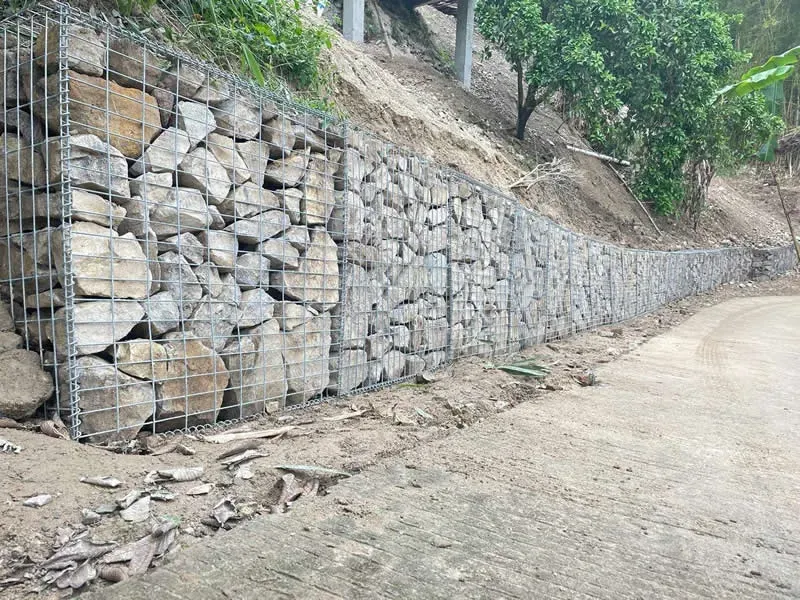

Our heavy-duty 3m×1m×1m welded gabion basket adopts thick wire and 75mm×75mm mesh. It is engineered for large stone structures, roadside facilities and long-span retaining walls.

Technical Specifications

Basket Size: 3m × 1m × 1m

Mesh Aperture: 75mm × 75mm

Wire Diameter: 4.5mm / 5.0mm

Material: Hot-dip galvanized steel wire / Galfan-coated steel wire

Fasteners: Spiral binders, C-rings or helical wire

Stiffeners: Mandatory for all exposed panels

Surface Treatment: Galvanized, Galfan or PVC coated (as requested)

Packing: Flat packed on export pallets

Applications

Road shoulder protection, long gabion walls, slope toe and embankment works.

Note: Select filling stones suitable for 75mm mesh aperture.

Welded Gabion Mesh Panel – 1m × 2m, 100mm × 100mm Mesh

This 1m×2m flat welded panel has 100mm×100mm square mesh. It is flexible for custom gabion fabrication, fence bases and on-site stone structures, and can be cut and connected freely.

Technical Specifications

Panel Size: 1m × 2m

Mesh Aperture: 100mm × 100mm

Wire Diameter: 4.0mm, 4.5mm, 5.0mm

Material: Hot-dip galvanized steel wire / Galfan-coated steel wire

Type: Flat welded mesh panel

Connection: Spiral wire, clips, tie wire or C-rings

Surface Options: Galvanized, Galfan, PVC coated

Custom Service: Custom panel sizes and apertures are available

Applications

Custom gabion production, fence base panels, on-site landscape and retaining structures.
