Hexagonal Gabion Mesh

Hexagonal gabion mesh features a double twisted weave and is fabricated into gabion baskets, mattresses and slope protection mesh for stone-filled retaining structures. We supply products manufactured from hot-dip galvanized wire, Galfan wire and PVC-coated galvanized/Galfan wire.

Thanks to its flexible structure, double twisted hexagonal mesh adapts better to minor ground settlement than rigid welded mesh panels. It is widely used for river regulation, erosion control, embankment reinforcement, drainage channels and retaining wall construction. All specifications including mesh aperture, wire gauge, surface coating, basket dimensions, diaphragm spacing and lacing wire can be tailored to project drawings and actual water exposure conditions.

Specifications

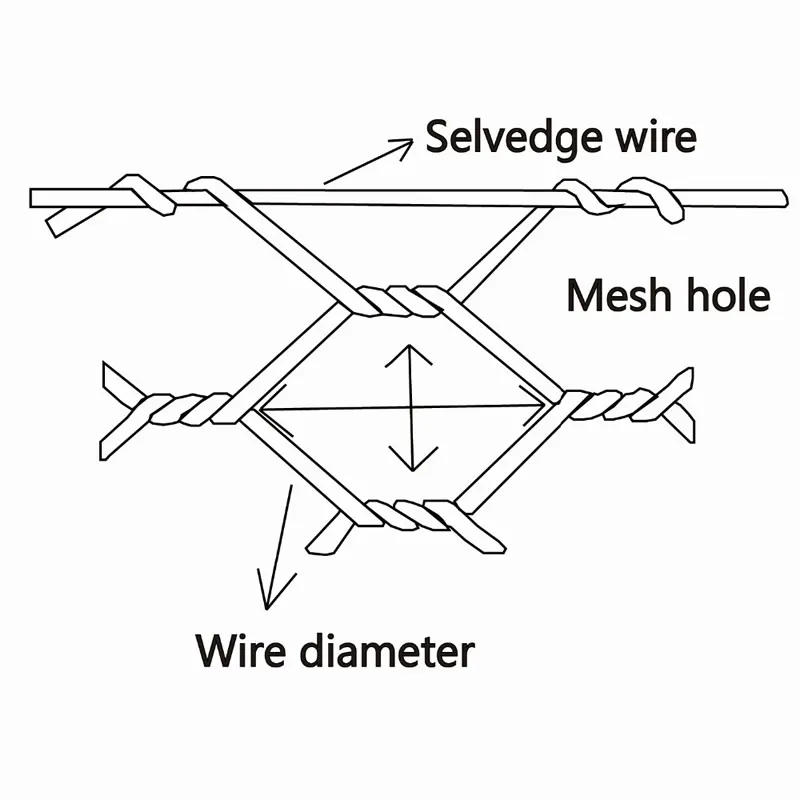

• Mesh Structure: Double twisted hexagonal weave. This design prevents extensive tearing even if a single wire breaks.
• Material: Hot-dip galvanized steel wire, Galfan-coated steel wire, PVC-coated galvanized or Galfan wire
• Mesh Aperture: 60mm × 80mm, 80mm × 100mm, 100mm × 120mm
• Main Wire Diameter (base wire, before coating): 2.0mm, 2.2mm, 2.4mm, 2.7mm, 3.0mm
• Edge Wire Diameter: 3.0mm, 3.4mm, 3.9mm (edge wire is thicker than main mesh wire)
• Lacing Wire Diameter: 2.0mm, 2.2mm, 2.4mm (selected to match basket size and main wire)
• PVC Coating Thickness: Approximately 0.5mm

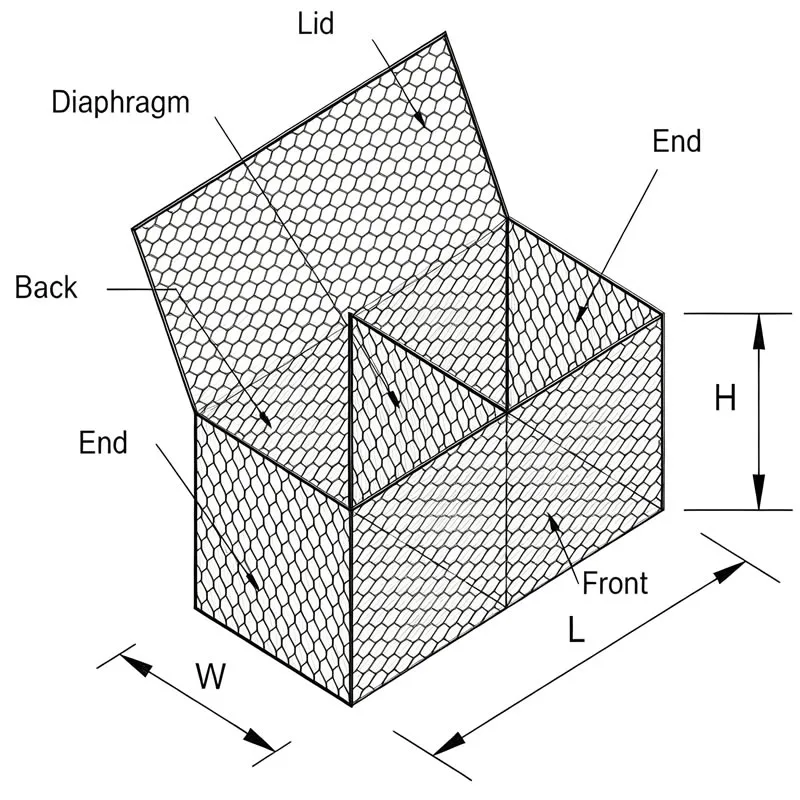

• Standard Gabion Basket Size: 1m × 1m × 1m, 2m × 1m × 1m, 3m × 1m × 1m, 4m × 1m × 1m
• Standard Gabion Mattress Size: Thickness: 0.17m, 0.23m, 0.30m; Overall size: 3m × 2m, 4m × 2m, 6m × 2m
• Diaphragm Spacing: Internal diaphragms installed every 1m for baskets longer than 1m
• Filling Stone: Stone size must be larger than the mesh aperture. Follow project standards for stone grading in hydraulic projects.
• Surface Treatment: Hot-dip galvanized for general outdoor applications. Galfan or PVC coating is recommended for riverside, coastal, wet soil and long-term exposure environments.
• Packing: Products are folded and compressed into bundles. Lacing wires and accessories can be packed together or separately.

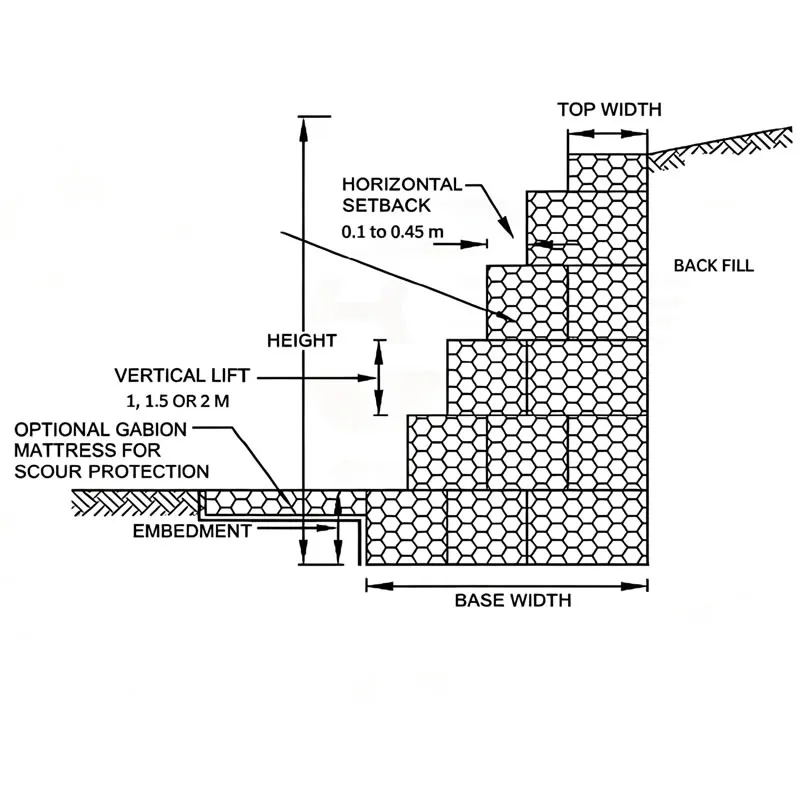

• Installation Guidance: Prior to installation of retaining walls, confirm foundation treatment, drainage layers, geotextile placement, backfill methods and maximum wall height.

Application

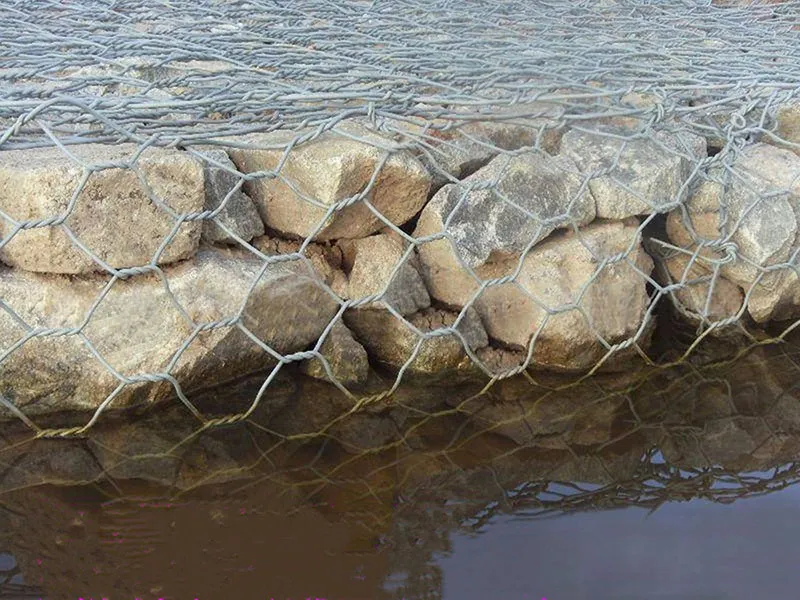

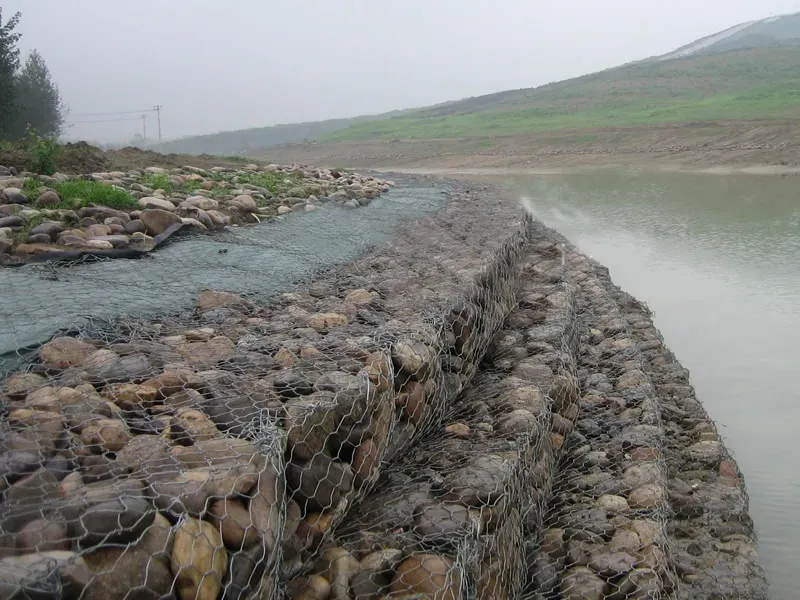

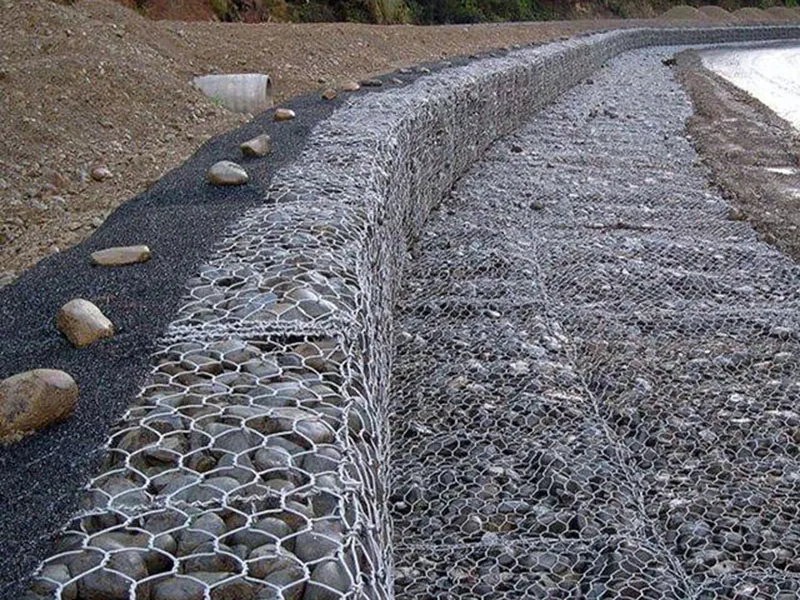

Hexagonal Gabion Basket – 2m × 1m × 1m, 80mm × 100mm Aperture

This 2m × 1m × 1m hexagonal gabion basket adopts double twisted mesh with 80mm × 100mm aperture. It is widely used for retaining walls, slope toe protection, drainage channels and general erosion control projects.

Technical Specifications

• Basket Size: 2m × 1m × 1m
• Mesh Aperture: 80mm × 100mm
• Main Wire Diameter: 2.7mm
• Edge Wire Diameter: 3.4mm
• Lacing Wire Diameter: 2.2mm
• Material: Hot-dip galvanized wire / Galfan wire
• Diaphragm: One internal diaphragm at 1m interval
• Packing: Folded and bundled

Applications

Retaining wall construction, riverbank & channel protection, road shoulder and slope toe reinforcement.

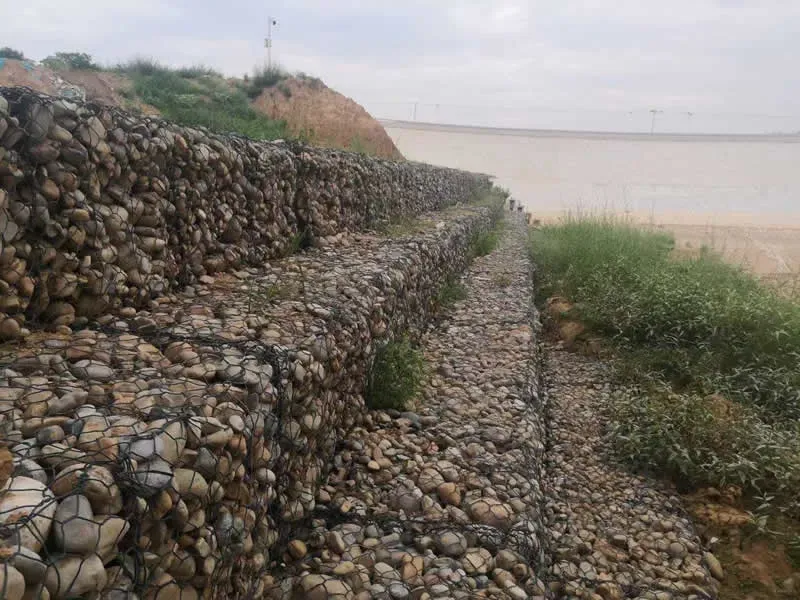

PVC Coated Hexagonal Gabion Basket – 3m × 1m × 1m, 80mm × 100mm Aperture

3m × 1m × 1m PVC-coated gabion basket with 80mm × 100mm mesh. The outer PVC layer provides superior anti-corrosion performance for wet ground, riverbank and coastal projects.

Technical Specifications

• Basket Size: 3m × 1m × 1m
• Mesh Aperture: 80mm × 100mm
• Base Wire Diameter (before coating): 2.7mm
• Overall Diameter after PVC Coating: Approx. 3.7mm
• Edge Wire Diameter (before coating): 3.4mm
• PVC Coating Thickness: Approx. 0.5mm
• Available Colors: Green, Grey, Black
• Diaphragm Spacing: 1m

Applications

Riverbank erosion control, wet slope protection, coastal drainage and embankment works.

Note: Avoid dropping sharp stones from height to prevent damage to the PVC coating.

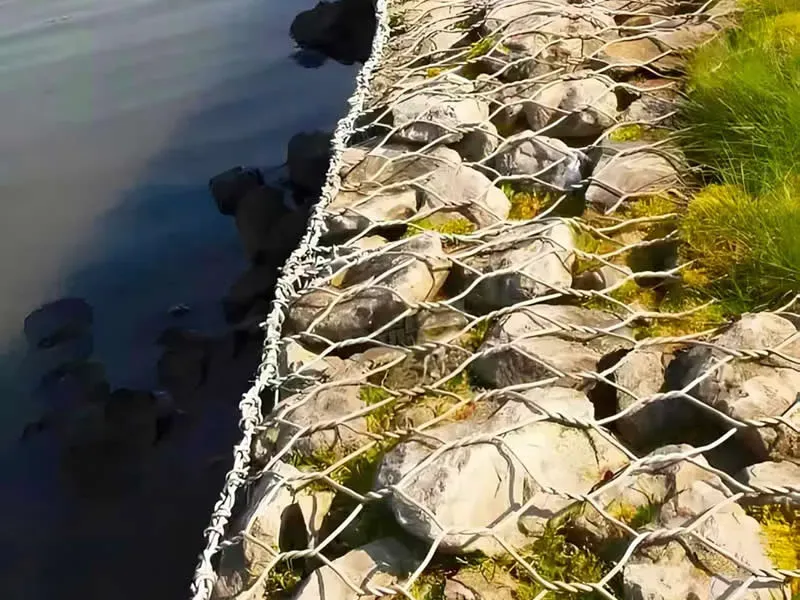

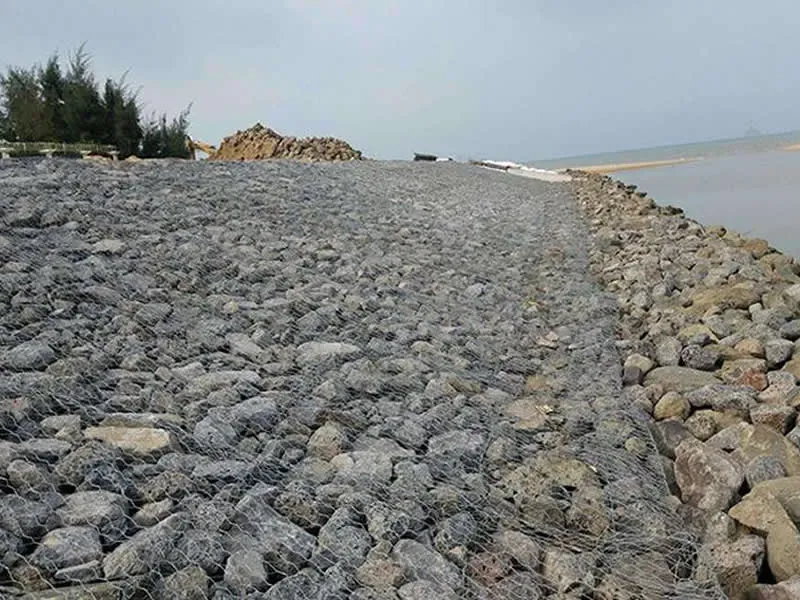

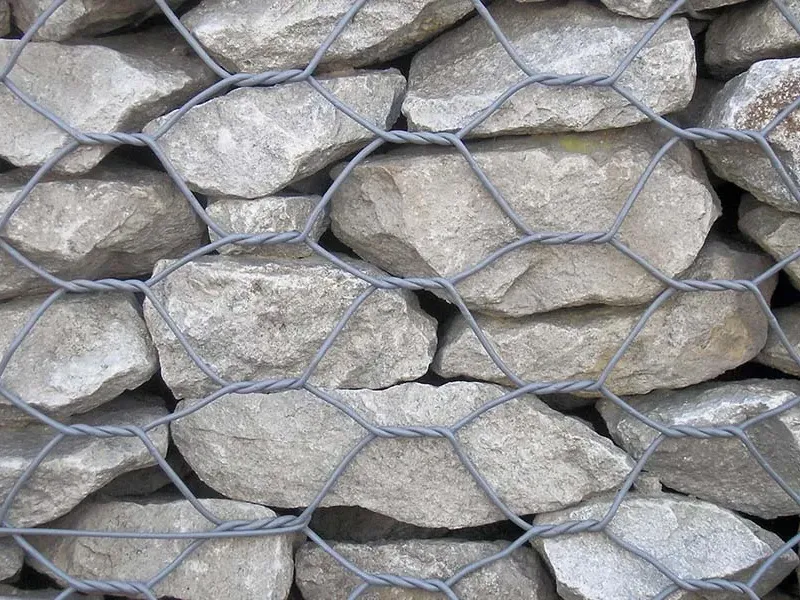

Galfan Hexagonal Gabion Mattress – 4m × 2m × 0.3m, 60mm × 80mm Aperture

4m × 2m × 0.3m Galfan gabion mattress with 60mm × 80mm double twisted mesh. It is commonly used for channel beds, slope surfaces, culvert outlets and hydraulic protection layers.

Technical Specifications

• Product Type: Gabion Mattress
• Overall Size: 4m × 2m × 0.3m
• Mesh Aperture: 60mm × 80mm
• Main Wire Diameter: 2.2mm / 2.4mm
• Edge Wire Diameter: 2.7mm / 3.0mm
• Lacing Wire Diameter: 2.0mm
• Material: Galfan-coated steel wire
• Internal Cells: Equipped with diaphragms at regular intervals

Applications

River channel lining, surface slope erosion control, culvert outlet and drainage protection.

Note: Select filling stones smaller than the mattress thickness and larger than the 60mm × 80mm mesh aperture.

Heavy Duty Hexagonal Gabion Basket – 4m × 1m × 1m, 100mm × 120mm Aperture

Heavy-duty 4m × 1m × 1m gabion basket with 100mm × 120mm large aperture and thicker wire. Designed for large-scale retaining walls, embankment projects and works requiring large filling stones.

Technical Specifications

• Basket Size: 4m × 1m × 1m
• Mesh Aperture: 100mm × 120mm
• Main Wire Diameter: 3.0mm
• Edge Wire Diameter: 3.9mm
• Lacing Wire Diameter: 2.4mm
• Material: Hot-dip galvanized wire / Galfan wire
• Diaphragm Spacing: 1m
• Requirement: Use large-sized filling stones matching the mesh aperture

Applications

Large gravity retaining walls, embankment toe protection, river regulation and hydraulic structures.

Hexagonal Gabion Mesh Roll – 2m × 50m, 80mm × 100mm Aperture

2m × 50m hexagonal gabion mesh roll with 80mm × 100mm aperture. Supplied in roll form for on-site fabrication, slope protection, channel lining and custom gabion production.

Technical Specifications

• Product Form: Mesh Roll
• Roll Width: 2m
• Roll Length: 50m
• Mesh Aperture: 80mm × 100mm
• Main Wire Diameter: 2.4mm / 2.7mm
• Material: Hot-dip galvanized wire / Galfan wire
• Reinforced Edge Wire: Available on request
• Packing: Compressed rolls with waterproof wrapping

Applications

Custom gabion fabrication, slope protection mesh, drainage and erosion control maintenance works.
