Temporary Fence

Temporary fence is a portable, reusable panel system for construction sites, swimming pool perimeters, public events, parking lots, storage yards, and emergency work zones. Panels connect via clamps and rest on removable weighted feet, requiring no permanent foundation. Common types: welded mesh temporary fence, chain link temporary fence, square frame fence, crowd control barrier. Height, width, wire diameter, mesh size, frame tube, feet, clamps, and braces are selected based on site wind load and security needs.

Specifications

Panel Types

• Welded mesh temporary fence（most common）
• Chain link temporary fence
• Square tube frame fence
• Crowd control barrier（steel barricade）

Panel Height（standard）: 1200mm, 1500mm, 1800mm, 2000mm

Panel Width（standard）: 2000mm, 2400mm, 2500mm

Wire Diameter（welded mesh）: 3.0mm, 3.5mm, 3.8mm, 4.0mm

Welded Mesh Openings: 50mm×100mm, 75mm×150mm, 50mm×200mm

Chain Link Mesh（diamond）: 50mm×50mm, 60mm×60mm

Crowd Barrier Infill Spacing（vertical tubes）: 100mm, 120mm, 150mm

Frame Tube（outer）

• Round: 32mm, 38mm OD
• Square: 25×25mm, 30×30mm

Middle Rail（welded fence）: 20×20mm, 25×25mm

Crowd Barrier Infill Tube : 14×1.0mm, 16×1.0mm, 20×1.2mm

Surface Treatment: Hot-dipped galvanized（standard）, galvanized + powder coated（black/yellow/green）

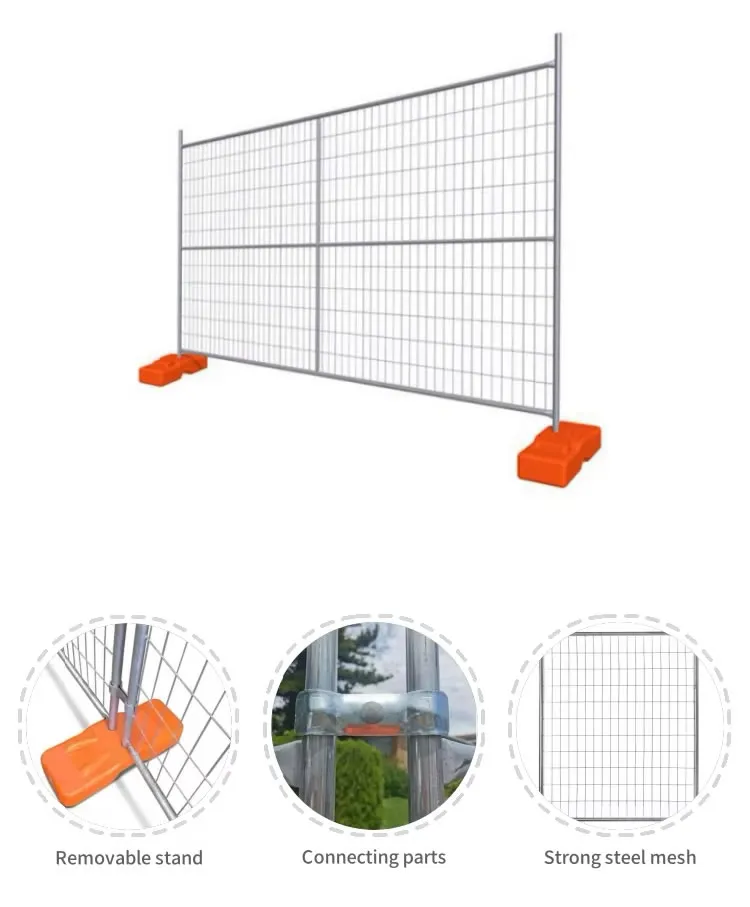

Feet Type（all removable）

• Plastic foot filled with concrete / sand

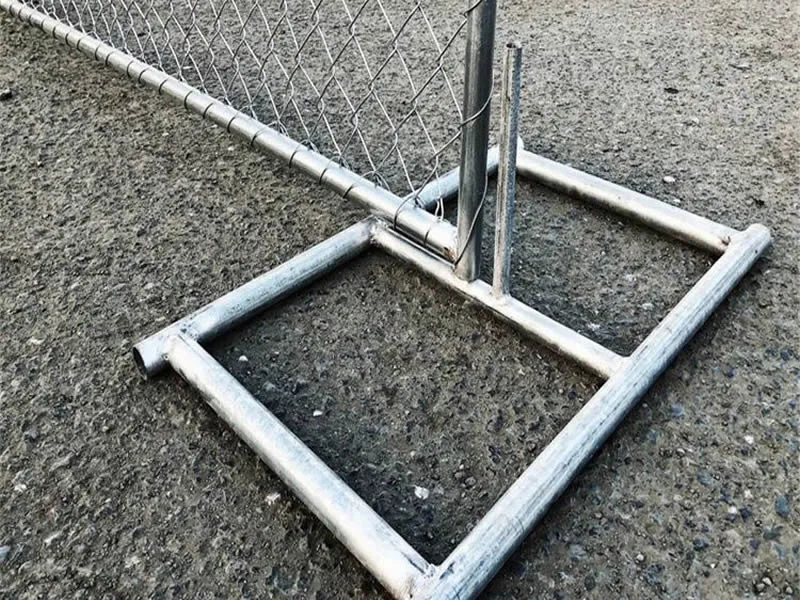

• Steel base foot
• Concrete weight foot

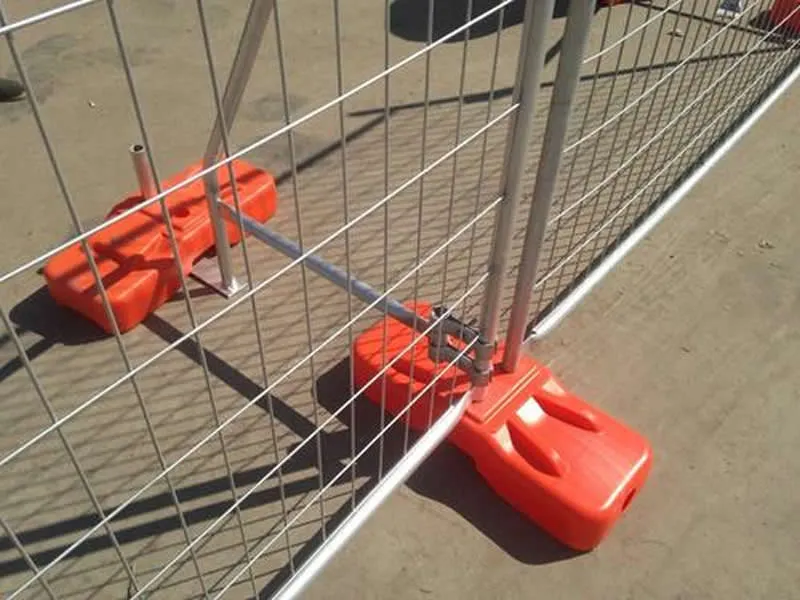

Connector: Top clamp, saddle clamp, hook connector（crowd barrier）

Support Brace : Stabilizer brace + ground pin（required for wind > 30km/h or when shade cloth is attached）

Gate Options : Pedestrian gate, vehicle gate（matching panel height/width）

Packing : Panels stacked on steel pallets; feet/clamps/braces packed separately.

Application

Construction Site Perimeter

Welded mesh panels（1800×2400mm）with plastic concrete feet and top clamps.

Swimming Pool & Residential Restricted Areas

1200mm–1500mm height, welded mesh or square frame panels.

Events, Parking & Crowd Control

Crowd control barriers（1100×2500mm）with hook interlock.

Emergency & Short-Term Security

All types; fast assembly/disassembly, no foundation.

Real Stock Specifications

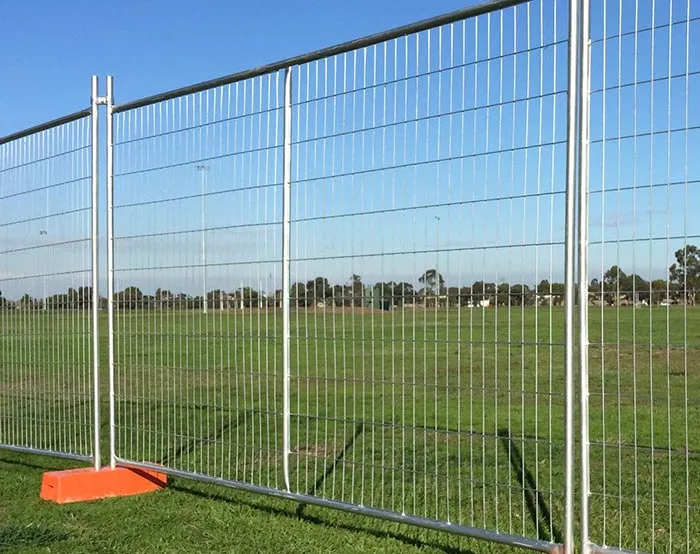

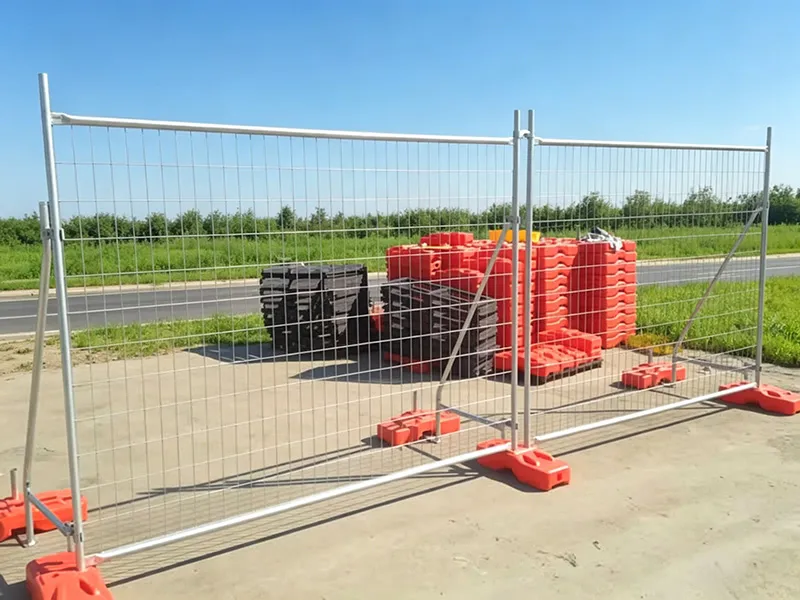

Welded Mesh Temporary Fence – 1800×2400mm（Best Seller）

• Material: Q235 steel
• Mesh: 50×100mm / 75×150mm
• Wire diameter: 3.5mm / 3.8mm
• Frame: 38mm round tube
• Surface: Hot-dipped galvanized（silver）
• Feet: Plastic concrete foot
• Connector: Top clamp
• Application: Construction sites, general perimeter fencing

Square Frame Temporary Fence – 2000×2500mm

• Material: Q235 steel
• Mesh: 50×200mm
• Wire diameter: 3.8mm / 4.0mm
• Frame: 30×30mm square tube
• Middle rail: 25×25mm
• Surface: Galvanized or powder coated（yellow/green）
• Application: Industrial sites, public works boundaries

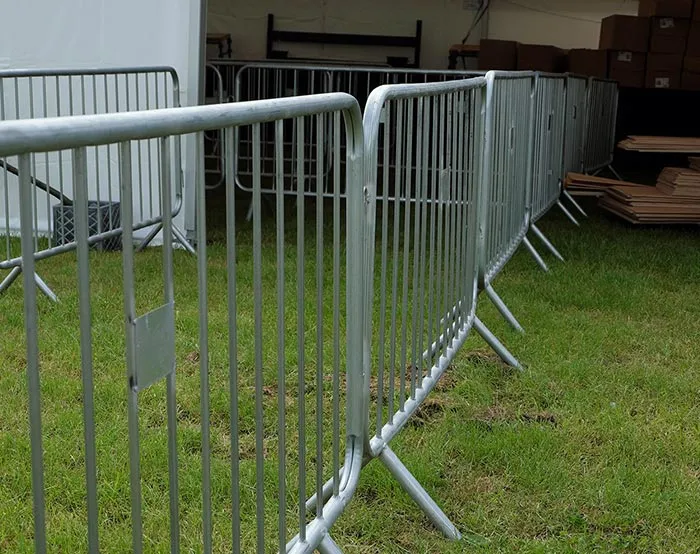

Crowd Control Barrier – 1100×2500mm（Event Standard）

• Material: Q235 steel
• Frame: 32mm round tube
• Infill tube: 16×1.0mm
• Infill spacing: 120mm
• Surface: Hot-dipped galvanized or black powder coated
• Connection: Hook interlock
• Feet: Removable steel foot
• Application: Concerts, sports events, queue control

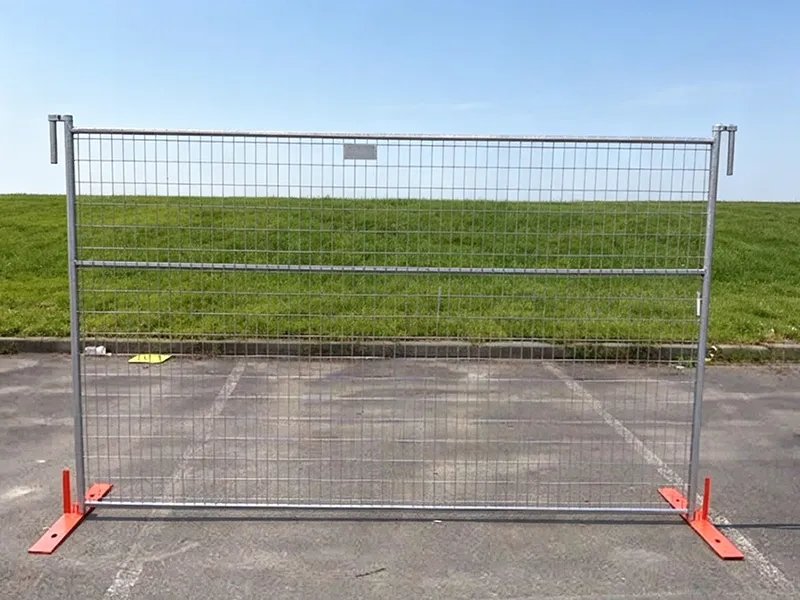

Powder Coated Temporary Fence – 1800×2400mm（Colored）

• Material: Q235 steel
• Mesh: 75×150mm
• Wire diameter: 3.5mm / 3.8mm
• Frame: 38mm round tube
• Surface: Galvanized + powder coated（yellow/orange/green/black）
• Feet: Plastic foot
• Application: Public-facing construction, event perimeters

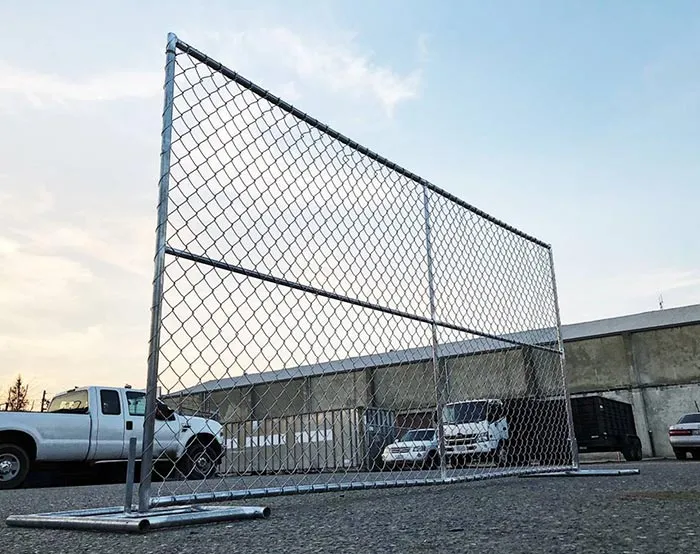

Chain Link Temporary Fence – 1500×2000mm

• Material: Galvanized steel wire
• Mesh: 50×50mm diamond
• Wire diameter: 3.0mm
• Frame: 32mm round tube
• Surface: Galvanized
• Application: Light-duty sites, temporary garden/yard fencing
